Fast Verdini NP 500
Electric Asphalt and Concrete Saw Blade 500 mm
MPN: PFSNPB00
10 HP - 400V
Max. disc. Ø 500/600 mm
Max. depth. 185/235 mm
€5,699.00
€4,671.31 tax excl.
Warranty 2
years
Shipped on Pallet

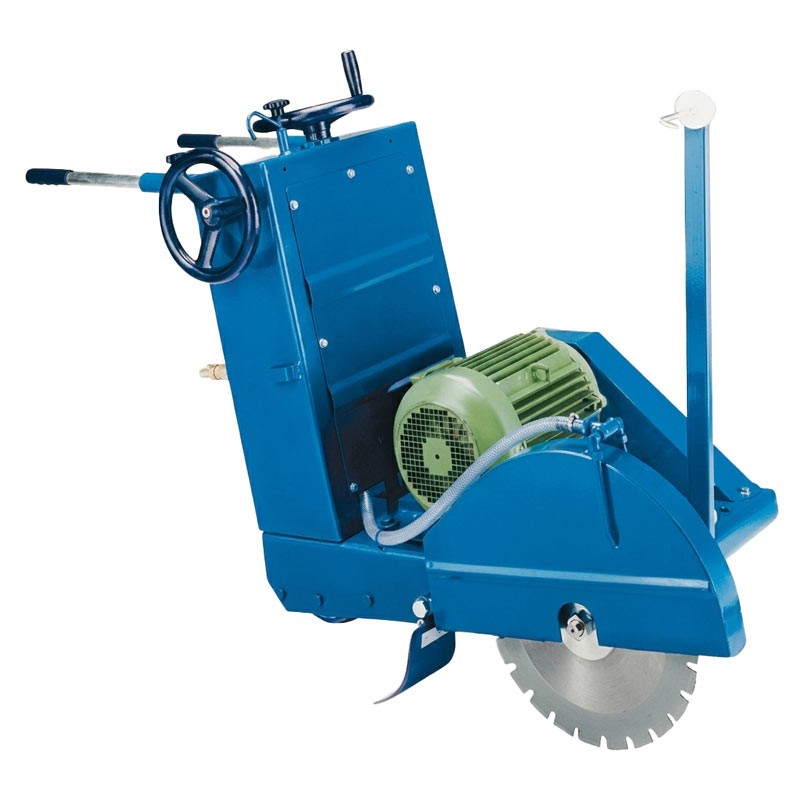

Fast Verdini NP 500 - Electric Asphalt and Concrete Saw Blade 500 mm
Fast Verdini NP 500, professional electric asphalt and concrete saw.
10 HP 400V three-phase electric motor.
Cuts up to 185 mm deep with a 500 mm blade. With a 600 mm blade, it reaches a cutting depth of up to 235 mm with the appropriate shroud.
Semi-automatic feed and mechanical depth adjustment via handwheel.
Functional Specifications
10 HP Three-Phase Electric Motor
The machine is equipped with a 10 HP 400V three-phase electric motor, with double safety insulation, switch, and socket for reliable professional use.
Cutting Up to 235 mm
With a 500 mm blade, the maximum cutting depth reaches 185 mm; with a 600 mm blade and the relevant optional shroud, it is possible to reach up to 235 mm.
Semi-Automatic Feed
The semi-automatic feed via handwheel allows precise control of the machine's progress during cutting.
Cutting Depth Adjustment
The mechanical depth adjustment is done via a handwheel, allowing quick setting of the required cutting depth.
Direction Indicator
The direction indicator facilitates maintaining the trajectory during cutting operations on asphalt and concrete.
Configuration Without Water Tank
The concrete and asphalt saw is supplied without a water tank, for an essential configuration suitable for the intended uses.
Features
- Professional asphalt and concrete saw
- 400 V three-phase electric motor
- 10 HP power
- Double safety insulation
- Maximum blade diameter 500/600 mm
- Cutting depth 185/235 mm
- Mechanical depth adjustment
- Semi-automatic feed
- Handwheel feed
- Direction indicator
- Switch and socket
- Available without water tank
Technical Data
| Blade Diameter | Ø 500/600 mm |
| Max. Cutting Depth | 18.5/23.5 cm |
| Power Supply | 400V |
| Power | 10 HP (7.4 kW) |
| Starting | Light switch |
| Depth Adjustment | YES |
| Water Tank | NO |
| Working Feed | Semi-automatic |
| Dimensions | 125 x 58 x 105 cm |
| Weight | 183 kg |
