Comer Pavecut 400
Asphalt Cutter 135 mm Max Disc 400 mm
5,5÷7,5 HP - 400V / Benzina
Disco max Ø 400 mm
Profondità max 135 mm
€1,839.00
€1,507.38 tax excl.
Warranty 2 years
Shipped on Pallet

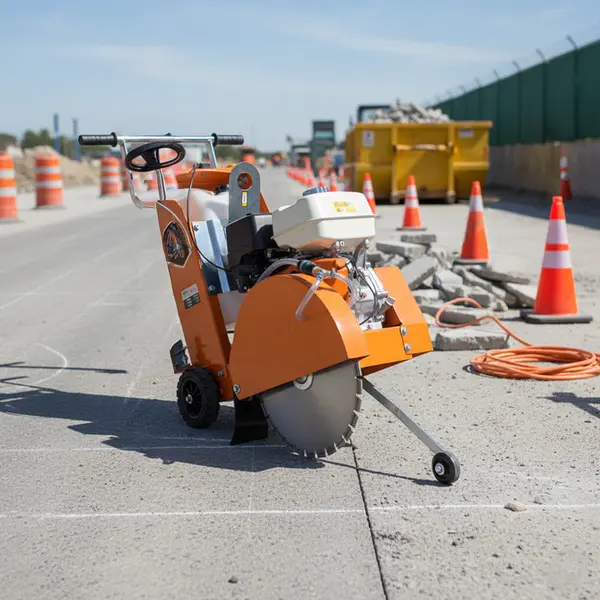

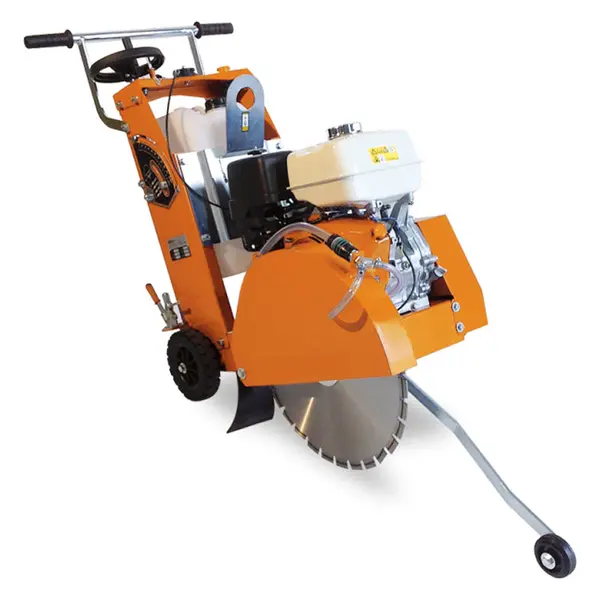

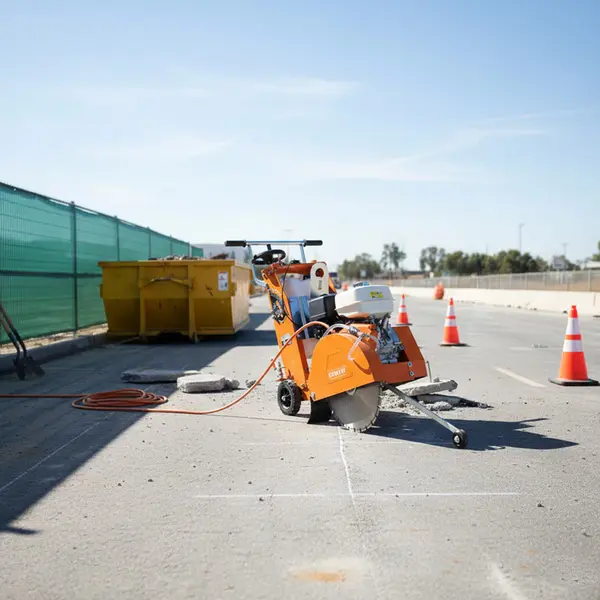

Comer Pavecut 400 - Asphalt Cutter 135 mm Max Disc 400 mm
The Comer Pavecut 400 , designed for professional use in cutting asphalt and concrete , offers reliable performance on road construction sites and in urban maintenance . The machine combines lightness and solidity, allowing smooth operation even in complex spaces. The cutting depth reaches 135 mm with a 400 mm blade , while the depth adjustment via handwheel ensures precise control at every stage of the work.
Ø 400 mm disc NOT INCLUDED.
AVAILABLE MODELS
- Three-phase electric 400V 5.5 kW 7.5 HP - code PV400-05
- Rato R210 4.4 kW 6 HP engine - code PV400-02A
- Kohler CH270 5.2 kW 7 HP engine - cod. PV400-03A
- Honda GX200 Engine 4.1 kW 5.5 HP - code PV400-01A
TECHNICAL SPECIFICATIONS
The Comer Pavecut 400 can be equipped with a 400V 5.5 kW (7.5 HP) three-phase electric motor or Rato R210 4.4 kW (6 HP) , Kohler CH270 5.2 kW (7 HP) and Honda GX200 4.1 kW (5.5 HP) petrol engines, ensuring constant power and reliable starting. The cutting depth reaches 135 mm with a 400 mm blade and 25.4 mm shaft , while the push feed offers precise control. The 30 L water tank keeps the blade cool and clean, and the weight of 90 kg ensures stability and easy transport on construction sites.
FUNCTIONAL SPECIFICATIONS
Professional Cutting System for Asphalt and Concrete
The machine uses 400 mm discs with a 25.4 mm shaft , ensuring precision on asphalt and concrete surfaces and maintaining high efficiency even in continuous operations.
Working Depth Control
The adjustment handwheel allows for quick and accurate setting of the cutting depth up to 135 mm , allowing the operator to maintain consistency and precision along the entire cutting line.
Integrated Water Cooling
The 30 L tank ensures a continuous flow of lubrication and cooling to the blade, improving cutting quality and extending blade life during intensive use.
Robust Structure and Operational Stability
The machine, weighing 90 kg , offers high stability during cutting operations, ensuring control and precision on the construction site. The balanced structure ensures reliability even during the most intensive use on asphalt and concrete .
Characteristics
- Professional asphalt saw
- Power supply Electric/petrol
- Engine choice between Rato, Kohler, Honda and three-phase 400V
- 28 L water tank
- Push forward
- Manual start
- Cutting depth up to 135 mm
- Compatible with max 400 mm disc
Technical Data
| Model | PV400-05 | PV400-02A | PV400-03A | PV400-01A |
| Power Supply | 400V | Gas | Gas | Gas |
| Motor | Electric | Rato R210 | Kohler CH270 | Honda GX200 |
| Power | 5.5 kW - 7.5 HP | 4.4 kW - 6 HP | 5.2 kW - 7 HP | 4.1 kW - 5.5 HP |
| Max Cutting Depth | 135 mm | 135 mm | 135 mm | 135 mm |
| Max Disc Diameter | Ø 400 mm | Ø 400 mm | Ø 400 mm | Ø 400 mm |
| Progress | Pushing | Pushing | Pushing | Pushing |
| Start-up | Manual | Manual | Manual | Manual |
| Depth Control | Flyer | Flyer | Flyer | Flyer |
| Water Tank | 30 L | 30 L | 30 L | 30 L |
| Cutting Indicator | YES | YES | YES | YES |
| Disc | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED |
| Weight | 90 kg | 90 kg | 90 kg | 90 kg |
Technical Data
| Model | PV400-05 | PV400-02A | PV400-03A | PV400-01A |
| Power Supply | 400V | Gas | Gas | Gas |
| Motor | Electric | Rato R210 | Kohler CH270 | Honda GX200 |
| Power | 5.5 kW - 7.5 HP | 4.4 kW - 6 HP | 5.2 kW - 7 HP | 4.1 kW - 5.5 HP |
| Max Cutting Depth | 135 mm | 135 mm | 135 mm | 135 mm |
| Max Disc Diameter | Ø 400 mm | Ø 400 mm | Ø 400 mm | Ø 400 mm |
| Progress | Pushing | Pushing | Pushing | Pushing |
| Start-up | Manual | Manual | Manual | Manual |
| Depth Control | Flyer | Flyer | Flyer | Flyer |
| Water Tank | 30 L | 30 L | 30 L | 30 L |
| Cutting Indicator | YES | YES | YES | YES |
| Disc | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED | NOT INCLUDED |
| Weight | 90 kg | 90 kg | 90 kg | 90 kg |
