Munters EM 50'' 52''
Extractor Fan
With Shutter

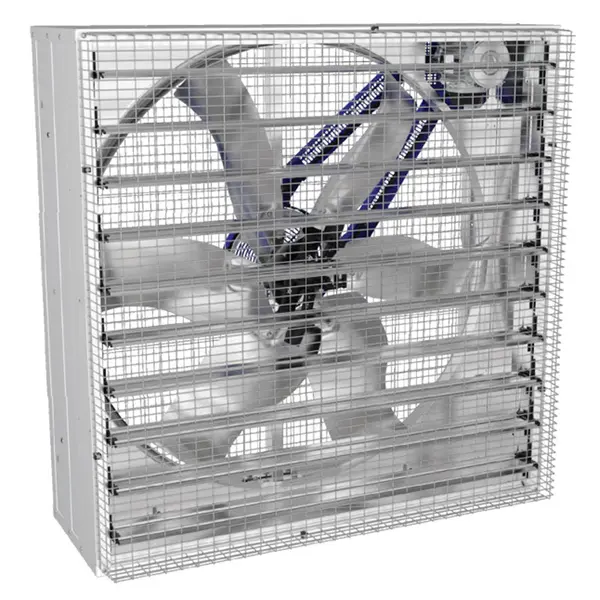

Munters EM 50'' 52'' - Exhaust Fan with Shutter 1 to 2.5 HP

Munters EM is the most popular and reliable extractor fan in the Munters range, designed to offer a high air flow even in high static pressure conditions. Ideal for intensive livestock farming and greenhouses , it guarantees energy efficiency , silence and long life thanks to its anti-corrosion structure in Munters Protect treated steel. Available in AC version (1.0 / 1.5 HP / 2.0 HP) and E-line with EC motor (2.5 HP), it has been synonymous with performance, reliability and innovation for over 40 years.

This air extractor is equipped with a damper and double protection net to ensure maximum safety during operation and prevent the entry of foreign bodies.

Available Models

• EM50 AC 1 HP fan 127 cm - cod. 2601065EU
• EM50 AC 1.5 HP fan 127 cm - cod. 2601425EU
• EM50 EC 2.5 HP fan 127 cm - cod. 2654101EU
• EM52 AC 2 HP fan 133.4 cm - cod. 2612004EU

Technical Specifications

The EM fan features a 50" or 52" 6-blade propeller designed to maximize airflow, even in environments with high static resistance. The belt drive allows for low speed operation , reducing energy consumption and noise. The machine body, damper and air transport system are constructed of galvanized steel with Munters Protect coating , which is extremely resistant to corrosion.

The EC motor guarantees energy savings of up to 50% compared to the AC version and allows variable speed control . All models are IP55 (AC) or IP66 (EC) certified, operate up to 50°C and maintain constant performance even in difficult environmental conditions. The noise level remains between 67.6 and 70.4 dB(A) , contributing to a quieter and healthier working environment for operators and animals.

Dimensions

Functional Specifications

High airflow in all conditions

Thanks to the propeller shape and Munters design, the EM air extractor generates a very high air flow even under high static pressure conditions. This makes it particularly effective in tunnel ventilation systems , high density greenhouses and poultry or pig farms .

EC motor with maximum efficiency

The E-line version of the EM50 is equipped with a 2.5 HP brushless EC motor , which allows continuous electronic speed regulation and significant energy savings. Ideal for facilities requiring continuous ventilation and consumption optimization.

Automatic hermetically sealed shutters

The patented Munters centrifugal system guarantees the immediate opening of the shutters when the motor is started and a perfect closure when it is deactivated. The powerful springs keep the shutters hermetically closed , preventing air leaks and infiltrations of light or dust.

Historical reliability certified ISO 9001

The EM fan represents Munters quality for over four decades . Each unit is manufactured to ISO 9001 standards and tested to ensure maximum efficiency, durability and operational safety.

Munters Protect Anti-Corrosion Fans

In agricultural environments, high humidity, acidic pH and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters has developed Munters Protect , an innovative coating for fan blades that is more corrosion resistant than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability and performance in the most demanding conditions. The following images show the comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy and resistant appearance .

On request, the EM50 models with 1 HP and 1.5 HP AC motor are available in the Power Munters Protect version, in stainless steel with a paint finish that is 10 times more resistant than normal materials.

Air Flow and Efficiency

EM50 AC Motor

EM50 Brushless EC Motor

Characteristics

• Industrial and agricultural air extractor
• 400V three-phase power supply
• Engine power from 1.0 to 2.5 HP
• AC or EC Brushless Motor
• Belt drive with low maintenance
• Fan diameter from 127 to 133.4 cm (50” 52'')
• Self-cleaning 6-blade propeller in treated steel
• Shutter and double safety net
• Noise level between 67.6 and 70.4 dB(A)
• Anti-corrosion structure with Munters Protect treatment
