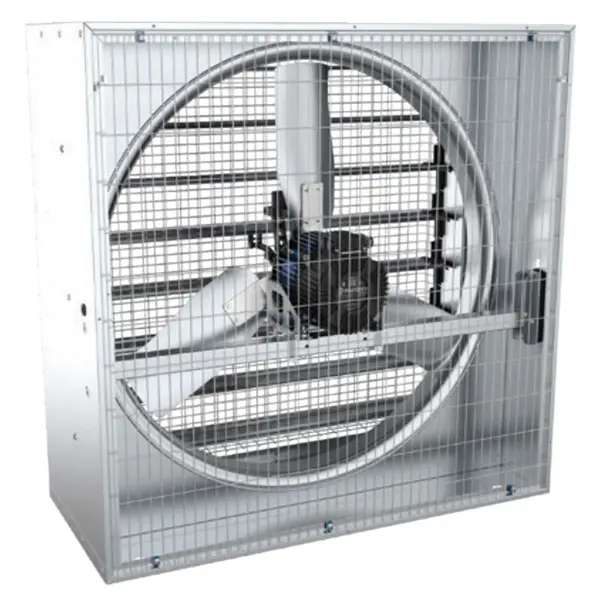

Munters Euroemme ED HE 24'' 30'' 36''
Exhaust Fan with Shutter

Munters ED HE 24'' 30'' 36'' - Exhaust Fans with Damper from 0.5 to 0.75 HP

The Munters ED HE is an industrial fan designed to provide powerful, efficient, and reliable ventilation in agricultural, livestock, and industrial environments . Built with corrosion-resistant materials and featuring a direct-drive motor , it ensures long life, high performance, and low maintenance.

This air extractor is equipped with a shutter and double protective mesh to ensure maximum safety during operation and prevent the entry of foreign bodies.

Available models

• ED24HE AC 0.5 HP 61 cm fan - code 2608600EU
• ED30HE AC 0.5 HP fan 77 cm - code 2608250EU
• ED36HE AC 0.75 HP 92.5 cm fan - code 2790200EU

Technical specifications

The propeller diameters are 610 mm , 770 mm and 925 mm respectively, with 0.5 HP AC motors for the first two and 0.75 HP for the ED36HE. The structure is made of galvanized steel with Munters Protect anti-corrosion treatment , ideal for aggressive environments. The die-cast aluminum blades , statically and dynamically balanced, ensure smooth and silent airflow.

Dimensions

Functional specifications

High and constant airflow

The optimized blade design and solid construction ensure a high, continuous air flow. The ED36HE model reaches 19,100 m³/h , while the ED24HE reaches 9,100 m³/h , ensuring optimal air exchange even in large spaces.

Energy efficiency

The direct-drive motor reduces mechanical losses, optimizing power consumption. The absence of belts and pulleys simplifies operation and reduces long-term operating costs.

Minimal maintenance

Robust construction and streamlined design reduce downtime and maintenance. Wear-and-tear components are limited, making the ED HE a reliable and long-lasting solution .

Optimized minimum ventilation

The fans operate efficiently even at low speeds, making them ideal for minimum ventilation systems in environments where precise and continuous climate control is required.

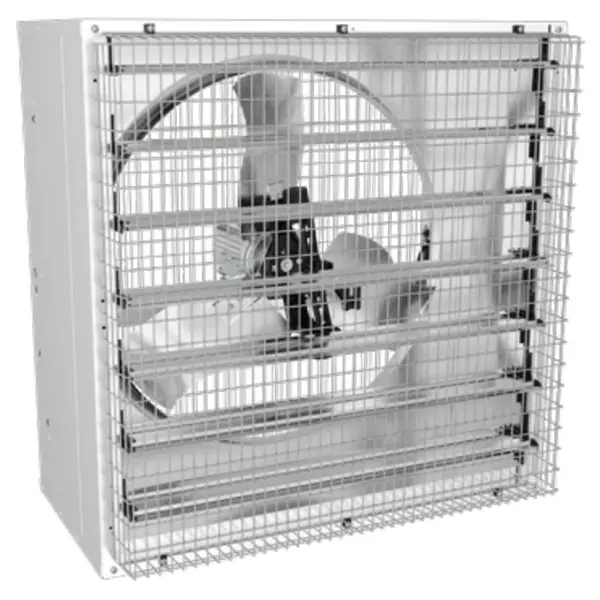

Galvanized steel shutter

The galvanized steel shutter guarantees maximum strength and airtightness, preventing any air leakage. The patented centrifugal system ensures stable opening at all times, requiring no maintenance. UV-resistant materials, a high-efficiency motor, and an anti-vibration grille complete an extractor designed to last and consume less.

Munters Protect Anti-Corrosion Fans

In agricultural environments, high humidity, acidic pH, and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters developed Munters Protect , an innovative fan blade material that is more corrosion resistant than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability , and performance in the most demanding conditions. The following images show a comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy, durable appearance .

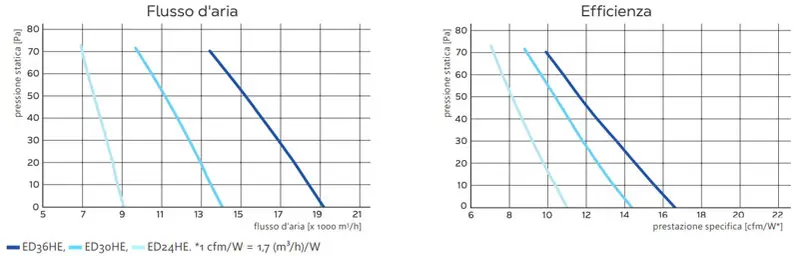

Air flow and efficiency

Characteristics

• Industrial and agricultural air extractor
• 400V three-phase power supply
• Engine power from 0.5 to 0.75 HP
• AC motor
• Direct transmission
• Fan diameter from 61 to 92 cm (24'' 30'' 36”)
• 3-blade self-cleaning propeller in treated steel
• Noise level from 69.8 to 72.5 dB(A)
• Anti-corrosion structure with Munters Protect treatment
