Munters Saturn ONE
1.5 / 2 HP Belt-Driven Industrial Extractor Fan

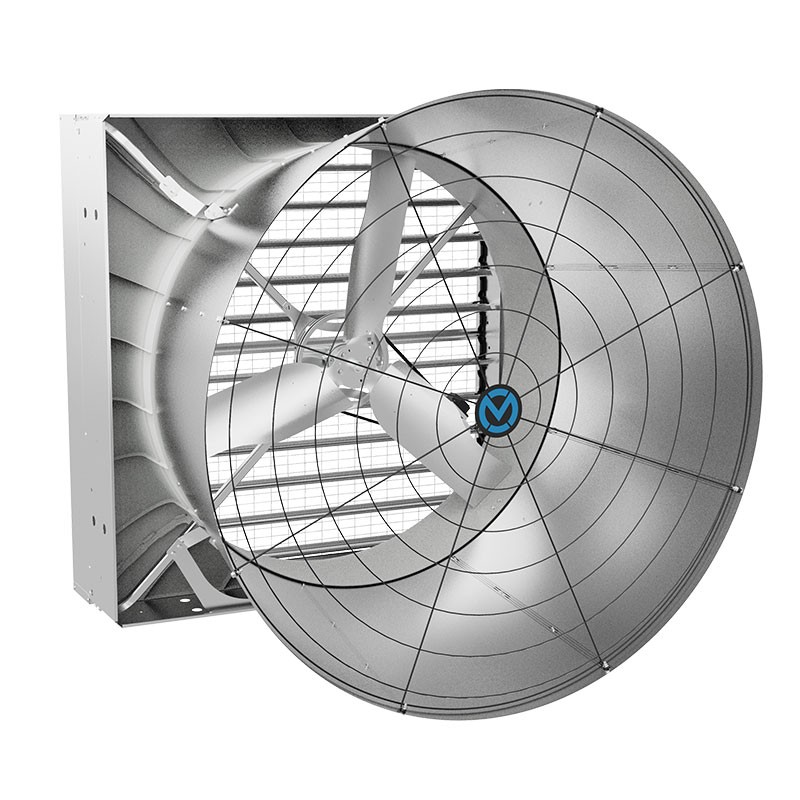

Munters Saturn ONE - Industrial Cone Extractor Fan 1 to 2 HP

The Munters Saturn ONE is an industrial air extractor designed to ensure high air flow , optimal energy efficiency , and long operating life. Ideal for poultry facilities and greenhouses , it combines robust construction and patented technologies to improve ventilation and animal welfare , while reducing operating costs.

This Munters Saturn ONE air extractor is equipped with a belt-driven AC motor and has a double protective mesh to ensure maximum safety during operation and prevent the entry of foreign objects.

Available models

• Saturn One 1.5 HP - 3 blades - 53,000 m³/h (code 2611106EU )
• Saturn One 2 HP - 6 blades - 54,000 m³/h (code 2611105EU )

Dimensions

Technical specifications

Saturn ONE is equipped with a 1400 mm propeller and is available in versions with a 1.5 or 2 HP belt-driven AC motor, guaranteeing a maximum static pressure of up to 100 Pa . The compact design is designed for quick installation and easy maintenance , ensuring constant performance in all operating conditions.

Functional specifications

Patented AGS system

The Anti-Gravity Shutter (AGS) system is an exclusive Munters feature that ensures the fan remains hermetically sealed when not in use . This prevents air, dust, and light from entering the structure, improving energy efficiency and environmental control.

Modular design and simplified maintenance

The modular structure of the Saturn ONE allows for quick installation and facilitates routine maintenance . Easy access to internal components reduces downtime and improves the operational reliability of the ventilation system.

Maximum compatibility and versatility

Designed to operate in any size facility, these models easily adapt to existing configurations thanks to their compact design and available grilling options. They are particularly suitable for poultry farms, greenhouses, and facilities with controlled ventilation requirements .

Durable and sustainable construction

Production takes place in plants powered by 100% renewable energy , contributing to the environmental sustainability of the entire product life cycle.

Munters Protect Anti-Corrosion Fans

In agricultural environments, high humidity, acidic pH, and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters developed Munters Protect , an innovative coating for fan blades that is more corrosion resistant than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability , and performance in the most demanding conditions. The following images show a comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy, durable appearance .

Air Flow and Efficiency

Characteristics

• Industrial and agricultural air extractor
• 400V three-phase power supply
• Engine power from 1.5 to 2 HP
• AC motor
• Belt drive with low maintenance
• Fan diameter: 140 cm (55”)
• 3 or 6 blade self-cleaning propeller in treated steel
• Double safety net
• Modular structure for wall or through-mounting
• Noise level between 75.3 and 76.9 dB(A)
• Anti-corrosion structure with Munters Protect treatment
