Fral FACSW90
Professional Portable Air Conditioner
€13,200.00
€10,819.67 tax excl.
400V - 5,7 kW
1900 m³/h - 51 dB
Made in Italy
Warranty 2 years
14 days to change your mind
Shipped on Pallet

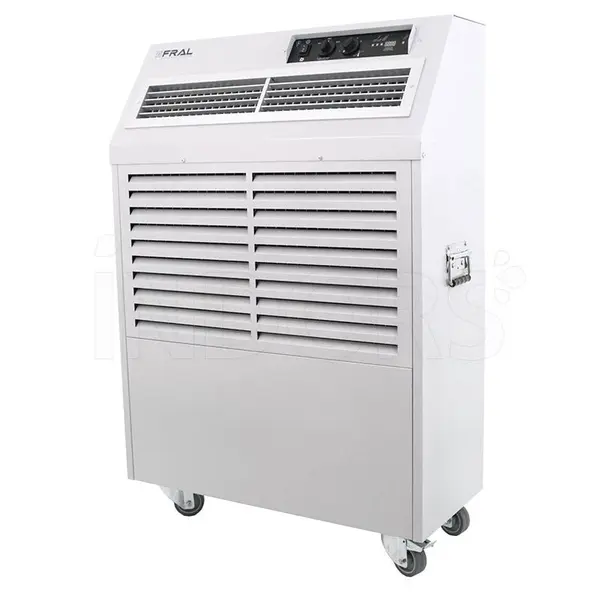

Fral FACSW90 - Professional Portable Air Conditioner
The Fral FACSW90 professional portable air conditioner is a versatile and powerful solution for cooling different types of environments , thanks to its autonomy and ease of installation , it represents the ideal choice to meet the cooling needs in different situations.
TECHNICAL SPECIFICATIONS
STRUCTURE
The structure of the air conditioner is made with panels in sturdy galvanized steel , coated with epoxy powder paint , guaranteeing high resistance to atmospheric agents and aggressive environments .
The panels are designed to be removable , facilitating inspection and maintenance of the internal parts, thus ensuring correct long-term operation .
ROTARY COMPRESSOR
The air conditioner is equipped with a rotary compressor mounted on anti-vibration mounts inside the two outdoor units with an electric heater on the crankcase to optimize cooling performance .
The refrigerant circuit consists of an evaporator and condenser made of copper tubes with aluminum fins , ensuring effective heat dissipation and efficient air cooling .
A condensate lift pump is installed in the indoor unit , whose job is to send the condensed water to the outdoor unit , where it is automatically expelled, thus avoiding any unwanted accumulation.
The cooling power is supported by a centrifugal fan in the indoor unit and an axial fan in the outdoor unit , ensuring a large air movement up to 3200 cubic meters per hour .
SIMPLE INSTALLATION

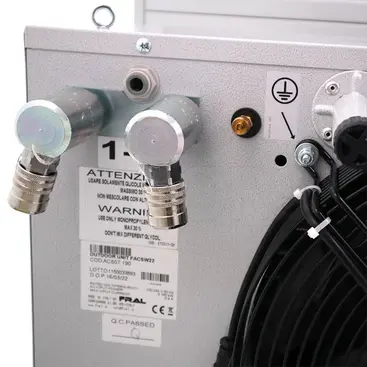

The air conditioner offers maximum flexibility in its installation, with the possibility of distances of up to thirty meters between the internal and external units , the pipes containing glycol water with quick couplings make installation a quick and easy process.

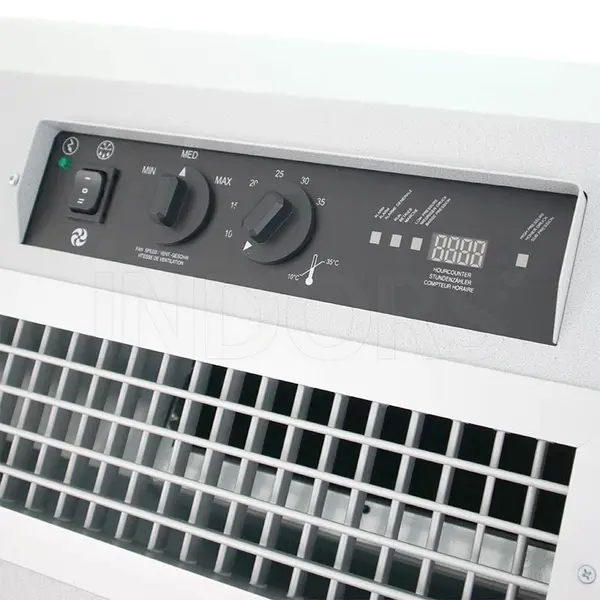

CONTROL PANEL
The control panel , compliant with current European standards, is positioned in the upper part of the conditioner, facilitating the management of the adjustments . Through the integrated microprocessor , it is possible to control the Hot Gas defrost cycles , set the compressor timer and receive alarms in case of need.
AIR FILTER
The high - efficiency polyurethane air filter is easily removable and replaceable , allowing for excellent internal air quality . This filter is washable and ensures clean and constant operation .
REDUCED CONSUMPTION & ENVIRONMENTAL SUSTAINABILITY
Thanks to the use of cutting-edge technologies and an optimized design , this air conditioner is able to reduce energy consumption without compromising the quality of the cooling offered, this not only translates into economic savings for the user but also demonstrates a strong commitment to environmental sustainability .
EUROPEAN REGULATIONS
The Fral FACSW90 air conditioner satisfies all the essential requirements of the European regulations on the safety of electrical products to be used in Low Voltage, Electromagnetic Compatibility and machine safety. Its conformity is declared with reference to the harmonized technical standards CEI-EN 60335-2-40, CEI-EN 55014-1 and CEI-EN 55014-2 . Furthermore, it complies with the RoHS Directive (2002/95/EC) concerning the limitation of the use of hazardous substances in the production of electronic equipment.
FIELDS OF APPLICATION
- Big offices
- Cloisters
- Data Centers
- Exhibition environments
- Hotels
- Industries
- Bar
- Restaurants
- Archives
Characteristics
- Professional portable air conditioner
- Consisting of indoor - outdoor unit that can be positioned remotely
- Sturdy galvanized steel structure
- Tested and high quality refrigerant circuit
- Condensate lifting pump
- Rotary compressors mounted on vibration dampers (2 units)
- Microprocessor with alarms and control panel
- Washable and easily replaceable air filter
- IP21
Standard equipment
- 1 x Indoor Unit
- 2 x Outdoor Units
- 2 x Pipes of various lengths of your choice 5-10-20-30 meters
Technical data
| Voltage | 400V |
| Cooling capacity 25°C 55%RH inside, 30°C outside | 27000W |
| Cooling capacity 25°C 55%RH inside, 30°C outside | 85000 BTU/h |
| Absorbed power 25°C 55% RH inside, 30°C outside | 9500W |
| Absorbed current 25°C 55% RH internal, 30°C external | 8.7A |
| Fan Speed Max Speed | 3200 m³/h |
| Fan Speed Normal Speed | 2700 m³/h |
| Low Speed Fan Speed | 2500 m³/h |
| Outdoor Unit Air Flow | 2700 m³/h |
| Refrigerated | R410a |
| Indoor unit sound pressure level at 3 m min. speed | 54dB(A) |
| Indoor unit sound pressure level at 3 m med. speed | 56dB(A) |
| Indoor unit Sound Pressure Level at 3 m max. speed | 59dB(A) |
| Sound pressure level outdoor unit at 3 m min. speed | 52dB(A) |
| Max distance between indoor - outdoor unit | 30m |
| Max height difference between indoor - outdoor unit | 9 m |
| Internal T operation limits | 10 - 30°C |
| External T operation limits | 10 - 40°C |
| Dimensions Indoor Unit | 119 x 184 x 56cm |
| Dimensions Outdoor Unit | 93 x 89.5 x 64.1cm |
| Weight Indoor Unit | 260 Kgs |
| Weight of Outdoor Unit | 2 x 35Kg |
Technical data
| Voltage | 400V |
| Cooling capacity 25°C 55%RH inside, 30°C outside | 27000W |
| Cooling capacity 25°C 55%RH inside, 30°C outside | 85000 BTU/h |
| Absorbed power 25°C 55% RH inside, 30°C outside | 9500W |
| Absorbed current 25°C 55% RH internal, 30°C external | 8.7A |
| Fan Speed Max Speed | 3200 m³/h |
| Fan Speed Normal Speed | 2700 m³/h |
| Low Speed Fan Speed | 2500 m³/h |
| Outdoor Unit Air Flow | 2700 m³/h |
| Refrigerated | R410a |
| Indoor unit sound pressure level at 3 m min. speed | 54dB(A) |
| Indoor unit sound pressure level at 3 m med. speed | 56dB(A) |
| Indoor unit Sound Pressure Level at 3 m max. speed | 59dB(A) |
| Sound pressure level outdoor unit at 3 m min. speed | 52dB(A) |
| Max distance between indoor - outdoor unit | 30m |
| Max height difference between indoor - outdoor unit | 9 m |
| Internal T operation limits | 10 - 30°C |
| External T operation limits | 10 - 40°C |
| Dimensions Indoor Unit | 119 x 184 x 56cm |
| Dimensions Outdoor Unit | 93 x 89.5 x 64.1cm |
| Weight Indoor Unit | 260 Kgs |
| Weight of Outdoor Unit | 2 x 35Kg |
