Dantherm AD 955
Professional Condensation Dehumidifier 550 m³/h

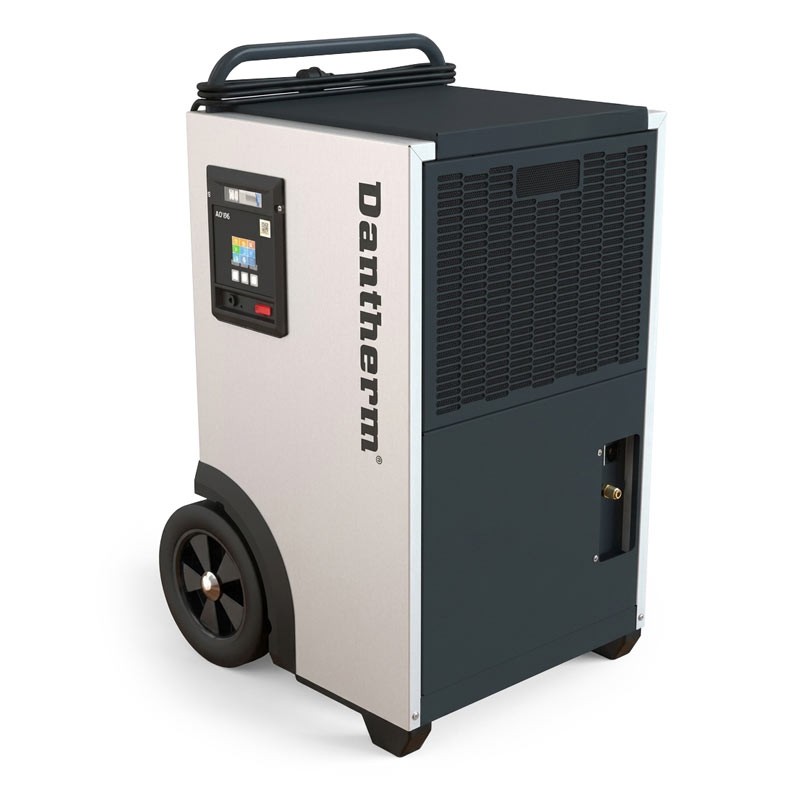

Dantherm AD 955 - Professional Condensation Dehumidifier

Dantherm AD 955 is a high-capacity professional condensation dehumidifier, designed for professional humidity control applications. Powered by 230V single-phase, it achieves an extraction capacity of up to 53 L/h at 30 °C and 80% RH, with adjustable air flow of up to 550 m³/h.

It integrates the CC6 control panel, ready for Simplify remote monitoring, and features an automatic mode with humidity target setting. Condensate management is handled by a 13 L tank or a continuous drain Ø 15 mm, with an optional pump kit. Its mobile, stackable, and easily maintainable structure makes it suitable for continuous professional use.

Functional Specifications

High Dehumidification Capacity

Dantherm AD 955 achieves 53 L/h at 30 °C/80% RH and 22.5 L/h at 20 °C/60% RH, ensuring high professional dehumidification performance.

2-Speed Fan

The air flow is adjustable between 290 and 550 m³/h, allowing adaptation of the flow to operating conditions. The night mode uses an air flow of 290 m³/h for quieter operation.

CC6 and Simplify Control

The CC6 panel integrates a graphic display, 3-button control, and LED status indication. The wireless capability allows connection to Simplify Climate Solutions for remote monitoring of humidity, temperature, dew point, evaporator, consumption, and machine status.

Automatic Humidity Control

The system allows continuous operation or automatic mode with humidity target setting, optimizing the dehumidification process management.

Condensate Management

Condensate can be collected in the 13 L tank or evacuated via continuous drain with a Ø 15 mm hose. The device automatically recognizes the optional pump kit.

Accessory Connections

The integrated interface supports plug and play connection of the dew point sensor and external humidistat, expanding the machine's control possibilities.

Consumption Measurement

It comes standard with an MID-approved kWh meter and a non-resettable hour meter, useful for monitoring consumption and operating hours.

Simplified Maintenance

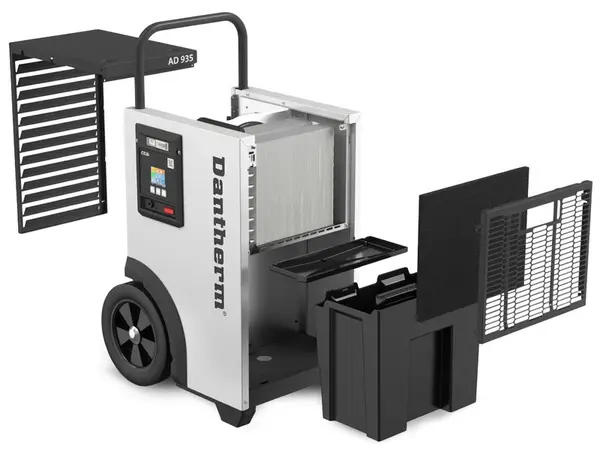

The AD 9 series design facilitates access to internal components by removing the front and top panels. Standardized components simplify maintenance, service, and spare parts replacement.

Mobility and Storage

Large wheels and a telescopic handle facilitate transport and handling. The stackable structure optimizes storage and professional transport.

Low GWP Refrigerant

The circuit uses A2L refrigerant with extremely low GWP, in line with environmentally conscious design.

Features

• Professional condensation dehumidifier
• Maximum capacity 53 L/h
• 230V single-phase power supply
• Maximum absorption 785 W
• Air flow 290/550 m³/h
• Night mode
• Noise level 53 dB(A)
• Operating range 5-30 °C
• Relative humidity 30-90% RH
• Condensate tank 13 L
• Continuous drain Ø 15 mm
• Optional pump kit
• CC6 control
• Simplify remote monitoring ready
• MID kWh meter
• Non-resettable hour meter
• Plug and play dew point sensor
• External humidistat connection
• Low GWP A2L refrigerant
• 5 m power cable
• Large wheels and telescopic handle
• Stackable structure
• Simplified maintenance

Optional Accessories

• Replacement filter - code 2004640
• Drain hose 15 x 2 mm - code 2002053
• Pump kit - code 2002342
• External humidistat - code 1110552
• Dew point sensor - code 32675
