Dantherm AD 935
Professional Condensation Dehumidifier 420 m³/h

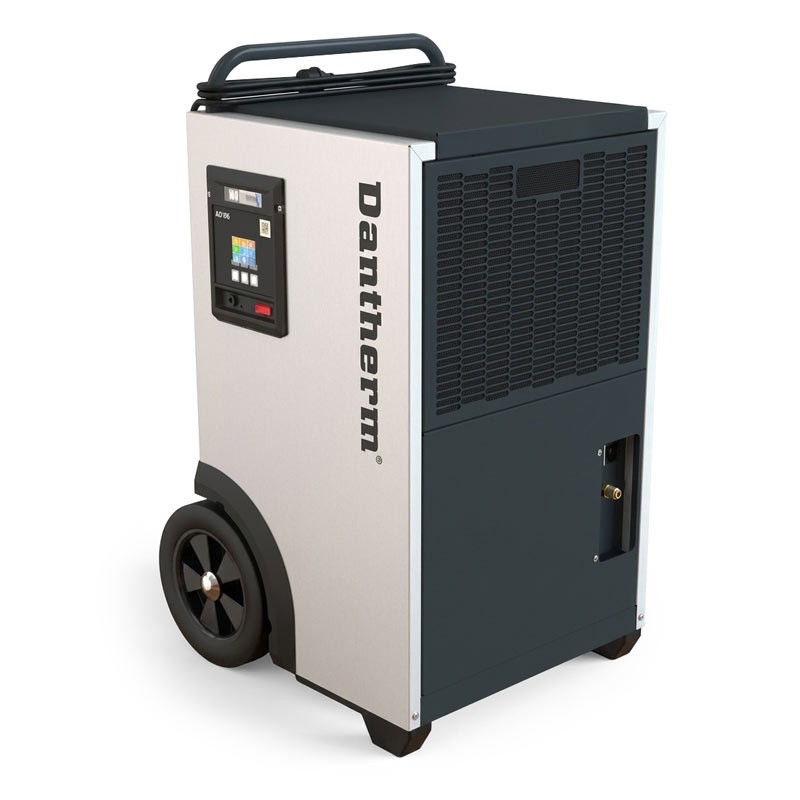

Dantherm AD 935 - Professional Condensation Dehumidifier

Dantherm AD 935 is a professional condensation dehumidifier designed for applications requiring high moisture extraction capacity, reliability, and ease of management. Powered by 230V single-phase, it achieves a dehumidification capacity of up to 34 L/h at 30°C and 80% RH, with an air flow rate adjustable between 300 and 420 m³/h.

The system integrates the CC6 control panel, ready for wireless connection to the Simplify remote monitoring platform, and features an MID-approved kWh meter and a non-resettable hour meter. The structure with large wheels, a telescopic handle, and a stackable configuration makes the Dantherm AD 935 particularly suitable for professional use and frequent relocation.

Functional Specifications

High Dehumidification Capacity

The condensation technology allows for a maximum capacity of 34 L/h at 30°C and 80% RH and 16.5 L/h at 20°C and 60% RH, ensuring reliable performance in different operating conditions.

Adjustable Air Flow Rate

This two-speed fan offers an airflow rate of 300 m³/h at the first speed and 420 m³/h at the second. The night mode maintains 300 m³/h, optimizing operation in conditions where noise reduction is important.

CC6 Control and Remote Monitoring

The CC6 controller features a graphic display and three-button management. It is ready for wireless connection with Simplify Climate Solutions, enabling remote control of humidity, temperature, dew point, evaporator temperature, energy consumption, and operating status.

Automatic Humidity Management

The system allows for continuous or automatic operation, by setting a humidity target. Plug and play interfaces are also available for dew point sensor and external humidistat.

Condensate Drainage and Pump Kit

Condensate can be collected in the 8 L tank or drained via a 15 mm flexible hose. The system automatically detects the optional condensate pump kit.

Consumption Monitoring

The MID-approved kWh meter allows for energy consumption tracking, while the non-resettable hour meter monitors the total operating hours of the equipment.

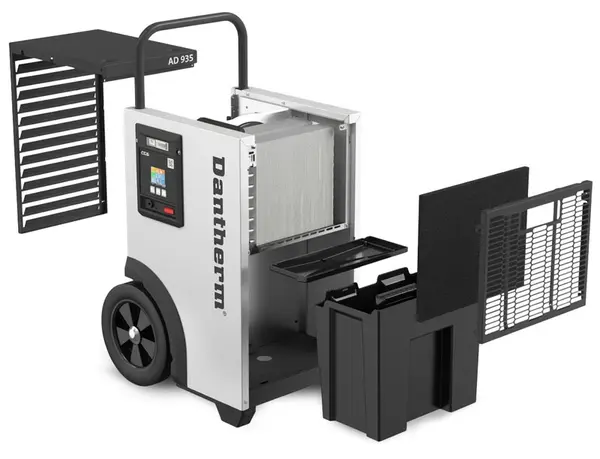

Simplified Maintenance

The design of the AD 9 series facilitates access to internal components by removing the front and top covers. Standardized and replaceable parts simplify maintenance and technical service operations.

Low GWP Refrigerant

The circuit uses A2L refrigerant with an extremely low GWP, in line with a design approach focused on reducing environmental impact.

Transport and Storage

The large wheels and telescopic handle facilitate movement, while the stackable structure optimizes the transport and storage of the units.

Features

• Professional condensation dehumidifier
• Dantherm AD 935 model
• 230 V single-phase power supply
• Maximum power/absorption 610 W
• Capacity up to 34 L/h
• Airflow 300-420 m³/h
• Night mode
• Temperature range 5-30 °C
• Humidity range 30-90% RH
• Noise level 51 dB(A)
• Condensate tank 8 L
• Condensate drain Ø15 mm
• CC6 Controller
• Simplify compatibility for remote monitoring
• MID kWh meter
• Non-resettable hour meter
• Provision for external humidistat
• Provision for dew point sensor
• Optional condensate pump kit
• Low GWP A2L refrigerant
• Large wheels and telescopic handle
• Stackable structure
• Standardized components for simplified maintenance

Optional Accessories

• Replacement filter - code 2004639
• Drain hose 15 x 2 mm - code 2002053
• Pump kit - code 2002341
• External humidistat - code 1110552
• Dew point sensor - code 32675
