Trotec PAC-C 1500 SH WiFi
4-in-1 Camping Air Conditioner
+ Heating Function

Trotec PAC-C 15000 SH WiFi - 4-in-1 Portable Air Conditioner with Heating Function

The Trotec PAC-C 1500 SH WiFi is a 4-in-1 camping air conditioner designed to provide maximum climate comfort in campers and caravans all year round. An evolution of the previous model, it integrates not only cooling , dehumidification and ventilation , but also an efficient heating function , making it ideal for both summer and colder seasons. The split system with external unit guarantees high performance with reduced space inside the vehicle. Thanks to intelligent compressor management, it maintains the set temperature stable while optimizing consumption. The use of the environmentally friendly R290 refrigerant ensures efficiency and environmental sustainability. The presence of integrated WiFi , silent night mode and automatic evaporation of condensation complete a device designed for practical, continuous and reliable use even during extended journeys.

Technical specifications

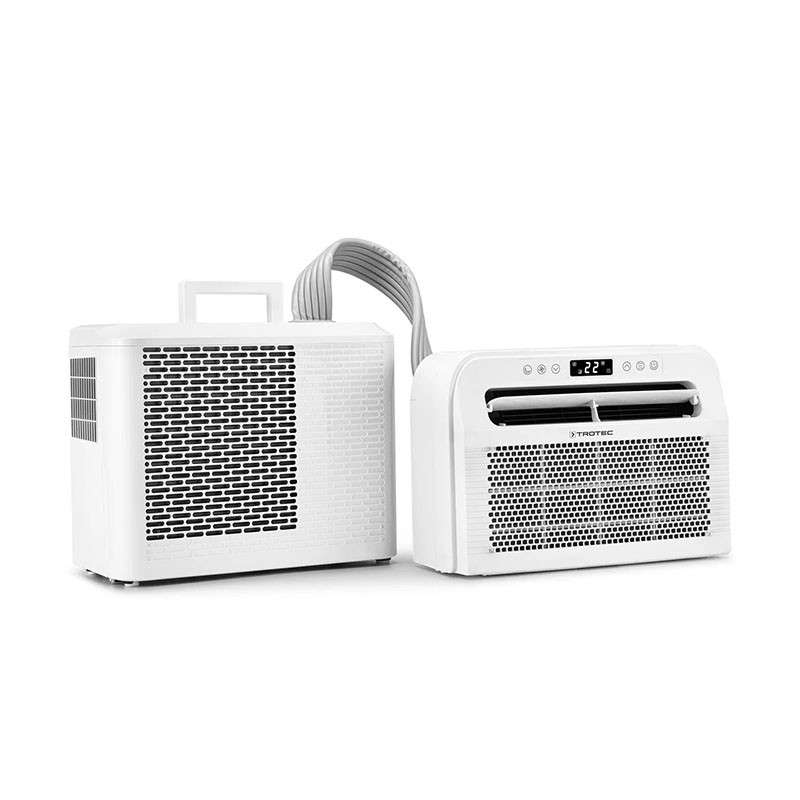

Compact split system with simplified installation

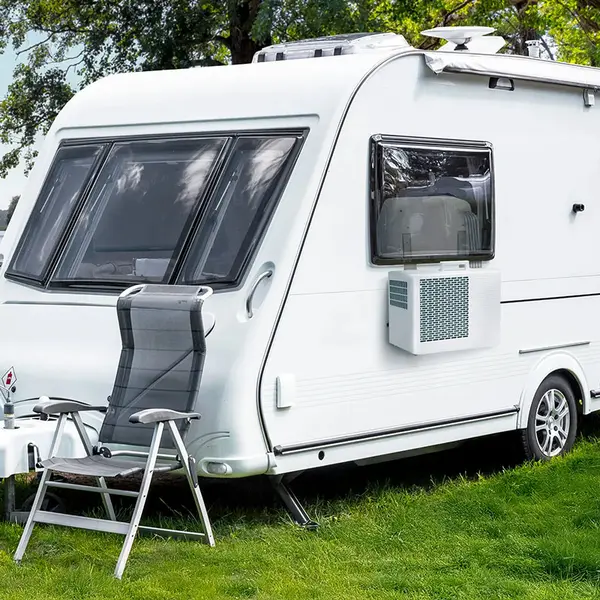

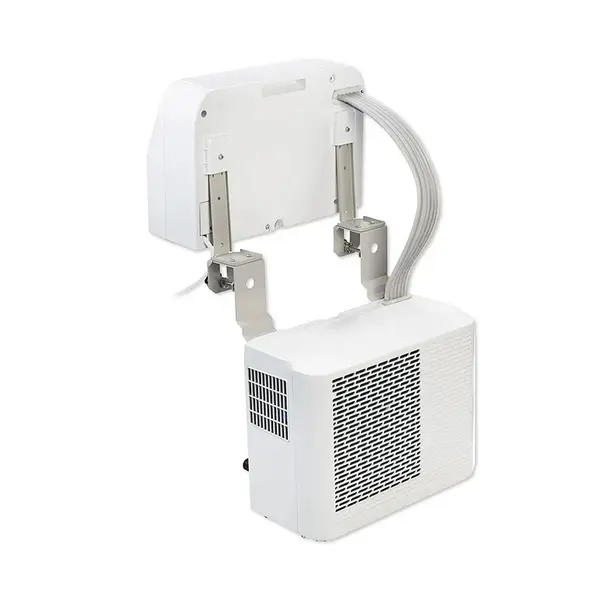

The Trotec PAC-C 1500 SH Wifi is a split air conditioner consisting of an indoor and outdoor unit connected via an integrated cable, designed for window mounting in campers or caravans. This configuration reduces internal space and improves heat exchange, ensuring efficient cooling and heating without the need for complex installations.

Cooling and heating performance

The Trotec PAC-C 1500 SH WiFi device offers a cooling capacity of 5000 Btu/h (1.46 kW) and an equivalent heating output , making it suitable for rooms up to 37 m³ . The compressor automatically modulates the power to maintain a constant set temperature between 16 °C and 30 °C , ensuring continuous comfort in any weather conditions.

Energy efficiency and environmentally friendly refrigerant

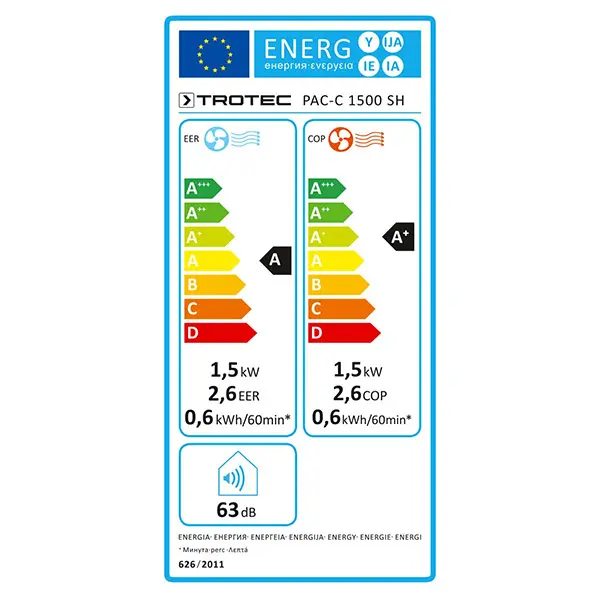

The low energy consumption of approximately 0.56 kW and the energy class A make the Trotec PAC-C 1500 SH WiFi efficient even for prolonged use. The refrigeration circuit uses R290 , with a low GWP (0.02) and a charge of approximately 120 g , guaranteeing high performance in compliance with European environmental regulations.

Ventilation and airflow control

The radial ventilation system reaches a maximum flow rate of 200 m³/h with two selectable speeds . The swing function distributes air evenly throughout the room, improving comfort in both cooling and heating modes.

Automatic dehumidification and evaporation

The dehumidification mode removes up to 0.5 L/h of moisture. The condensation is automatically transferred to the outdoor unit, where it evaporates on the heat exchanger, reducing the need for manual emptying and allowing continuous operation.

Digital control and smart features

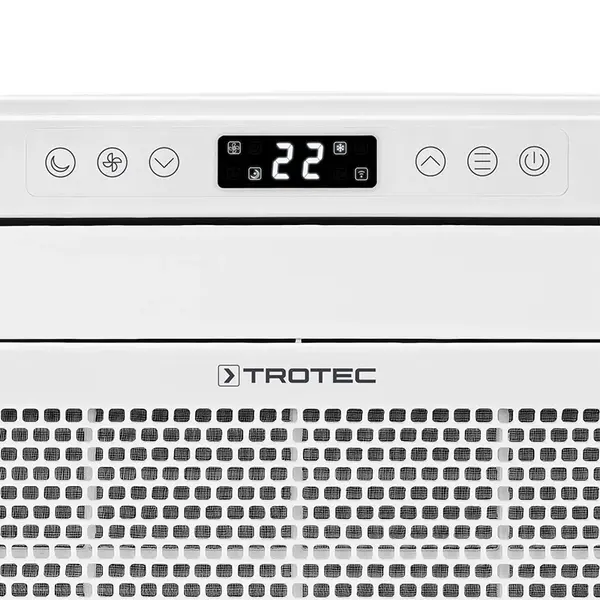

The air conditioner features an LED display , membrane controls , and a built-in thermostat . Thanks to Wi-Fi and a dedicated app, you can manage the temperature, operating modes, and programmable timer for up to 24 hours, even remotely.

Silence and operational safety

The indoor unit's noise level can drop to around 46 dB(A) in night mode, ensuring discreet operation. The device integrates overheating protection , child safety , a washable air filter , and automatic diagnostic systems, ensuring reliability and safety even under intensive use.

Characteristics

• Split system air conditioning
• 4 in 1 function
• Cooling and heating
• Dehumidification and ventilation
• Power supply 220–240 V
• Capacity 5000 Btu/h
• Power 1.46 kW
• Heating 1.46 kW
• Two ventilation speeds
• For rooms of 15 m²
• Ecological refrigerant R290
• Automatic evaporation
• Noise level up to 46 dB
• Silent night mode
• Integrated LED display
• WiFi with app
• 24-hour timer
• Air swing function
• Washable air filter
• Overheat protection

Standard Equipment

• Unit connection cable 1 m
• Washable air filter (already installed)
• Flexible condensation hose
• Condensation collection tray
• Mounting screws
