Trotec PT 5300 SP
Spotcool 3-Channel Air Conditioner

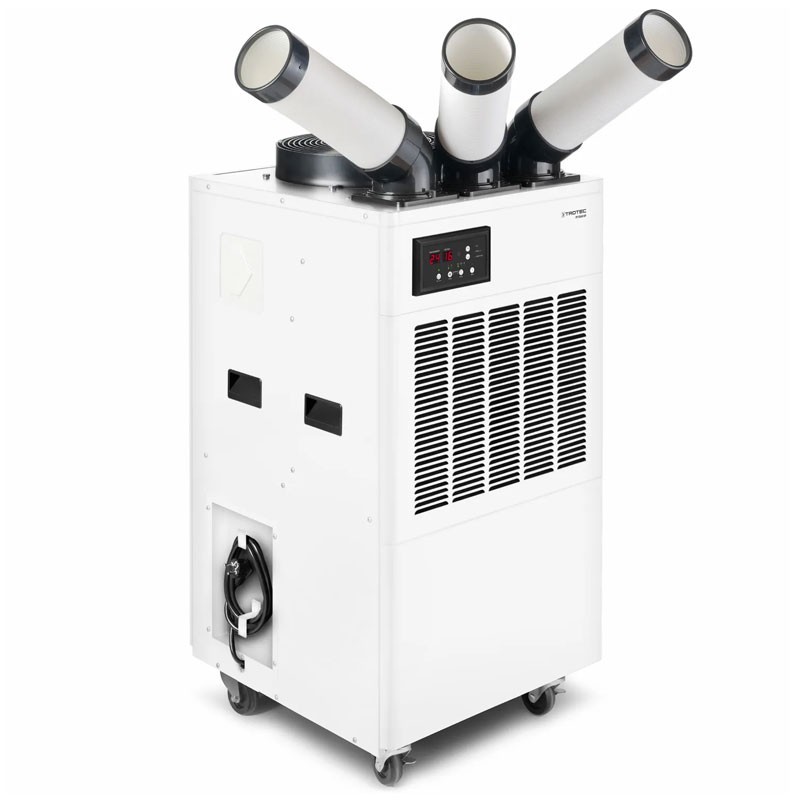

Trotec PT 5300 SP - Spotcool Air Conditioner with 3 Cold Air Outlet Channels

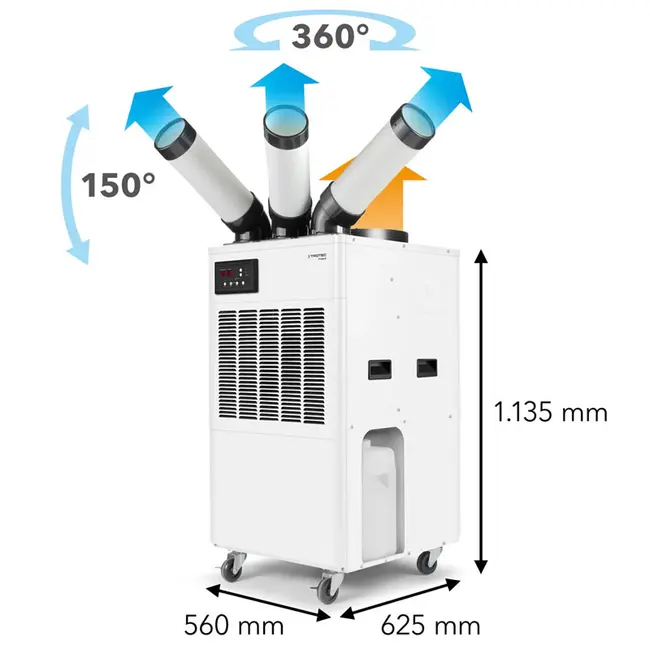

The Spotcool Trotec PT 5300 SP mobile air conditioner is a versatile and powerful solution, ideal for cooling large spaces . Thanks to its four integrated functions—targeted cooling, whole-room cooling, ventilation, and dehumidification— it ensures optimal comfort in any situation. Three adjustable cold air outlets allow for effective airflow distribution, with ducts that can be tilted up to 150° and rotated 360°, ensuring even and targeted cooling exactly where it's needed.

Ready to use with no installation required , this spot cooler offers a cooling power of 5.3 kW (18,000 Btu/h) and an air flow of 800 m³/h, ensuring instant and effective cooling.

Thanks to its ease of use, it is the ideal solution for targeted cooling in workshops, halls, industrial kitchens, server rooms and systems, as well as for events, welding work and the catering sector.

Technical Specifications

The PT 5300 SP spot cooler air conditioner combines power and compactness to offer targeted and efficient cooling in rooms with temperatures between 18°C and 45°C . With a capacity of 5.3 kW (18,000 Btu/h) and an air flow rate of 800 m³/h , it ensures even distribution of cool air thanks to its axial fan.

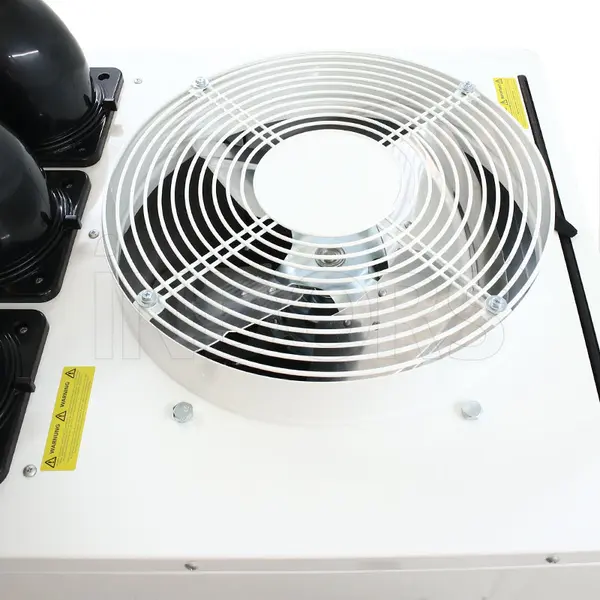

With a single-phase 230V connection , the PT 5300 SP mobile cooler absorbs 2200 W of power with a nominal current of 10 A, guaranteeing energy efficiency and excellent performance. Its structure is designed for practical and immediate use, with a cold air outlet duct 385 mm long and 120 mm in diameter , with a hot air outlet of Ø 370 mm .

Equipped with a condensation collection tank with a lighted filling indicator , the Trotec PT 3500 SP offers simple and trouble-free operation. Furthermore, it has a noise level of just 65 dB(A) at one meter.

This mobile cooler also features an electronic thermostat with dual digital indicator and LED display with membrane keys.

The Trotec PT 3500 SP features a hot air exhaust outlet to which an optional 7.6 metre hose (not included) can be added for greater flexibility of use.

4 functions in 1

Trotec spotcooler PT 5300 SP has 4 function modes:

1. Room cooling
   In this mode, the PT 5300 SP operates like a traditional monoblock air conditioner , efficiently cooling the room air. The built-in thermostat constantly monitors the temperature and automatically adjusts the flow of cold air to ensure the desired temperature is reached. Once the set value is reached, the device optimizes operation to maintain comfort without wasting energy.


2. Targeted cooling of a specific point
   In targeted cooling mode, the PT 5300 SP directs cold air exactly where it's needed, thanks to two adjustable ducts. Unlike ambient cooling, in this mode the room temperature is irrelevant: simply set the desired exhaust temperature using the thermostat. This allows the device to be placed in an adjacent room and the cold air flow to be directed to the area to be cooled via flexible ducts, thus ensuring effective cooling without taking up space in the main room.


3. Dehumidification function
   This mode allows for targeted dehumidification of the room air, helping improve comfort and air quality by removing excess humidity. To optimize the process, the fan power is reduced to a minimum, ensuring effective action without energy loss.


4. Ventilation function
   This function is ideal when, instead of cooling the air, you want to cool it like with a fan . In this energy-saving mode , the compressor is deactivated while all fan functions remain available.

Areas of use

• Direct cooling of workstations to eliminate heat stress
• Targeted cooling of end-of-line test benches or other workstations on the production line
• Rapid temperature reduction in rooms with servers, networks and heat-generating electronics
• Temporary backup cooling for existing systems in adverse weather conditions
• Spot cooling of heat-generating machinery and plant components
• Emergency cooling in case of primary system failure
• Targeted cooling on ships, in tents or in mess kitchens

Characteristics

• Multifunctional air conditioner: room cooling, targeted cooling, ventilation or dehumidification
• Three-channel spot cooler with three separately adjustable cold air ducts for different target areas
• No installation work, ready to use immediately
• Timer function for pre-selecting the time to switch on or off
• Robust sheet steel construction, ideal for use even in harsh environments
• High maneuverability and mobility thanks to the compact design and sturdy wheels with lock
• Electronic thermostat with double digital display for nominal value and actual value
• LED display with membrane keys
• Recessed cable reels with shock protection create order without the risk of tripping
• Connection for external condensate drain
• Indicator light that indicates when the water tank is full
• Washable air filter to protect internal components from dirt
• Possibility of connecting the flexible hose for the discharge of hot air to the outside

Standard Equipment

• 1x Washable Air Filter
• 3x Adjustable Air Outlet Pipe
• 1x Condensate Tank
• Instruction Manual
