Trotec PT 2700 SP
Spotcool Air Conditioner
with Hot Air Exhaust Hose

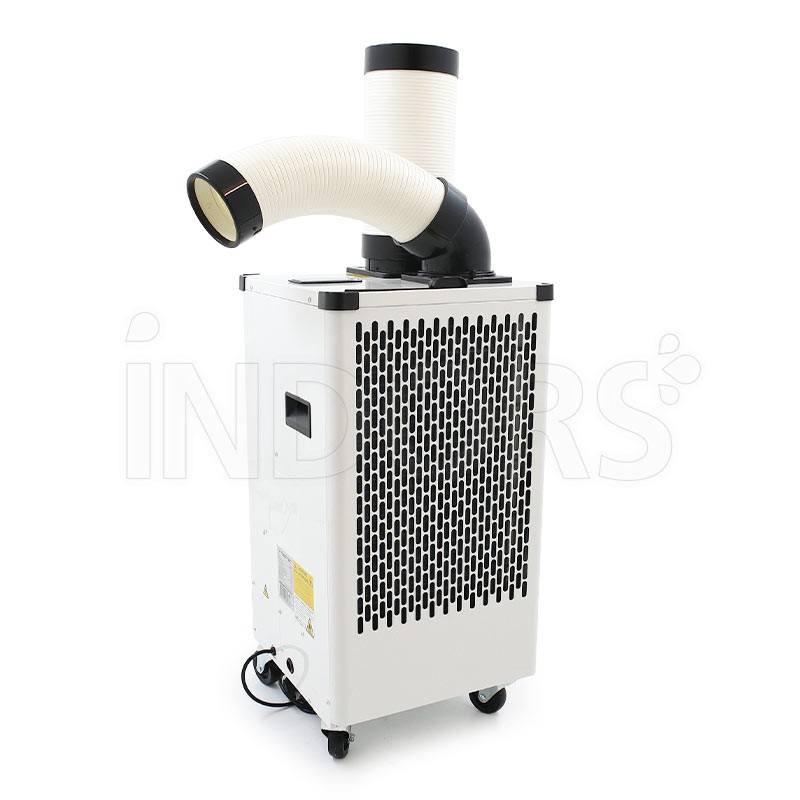

Trotec PT 2700 SP - Spotcool Air Conditioner with Hot Air Exhaust Hose

The Spotcool Trotec PT 2700 SP mobile air conditioner is designed to provide precise and immediate cooling directly at the workstation . Thanks to its vertical hot air exhaust duct , the heat generated by the device is expelled in another direction, with the option of installing an additional 6-meter air transport duct for greater flexibility of use.

Ready to use with no installation required , the PT 2700 SP boasts a cooling capacity of 2.7 kW (9200 Btu/h) and an air volume of 400 m³/h , ensuring instant cooling exactly where it's needed. The cold air duct can be swiveled by 150° and rotated 360° , allowing for a targeted and optimal airflow for every need.

Its ease of use, combined with an excellent price-performance ratio, makes it ideal for localized cooling in workshops, warehouses, industrial kitchens, server rooms and plant rooms, as well as for events, welding work and the catering sector.

Technical Specifications

The PT 2700 SP spot cooler air conditioner combines power and compactness to offer targeted and efficient cooling in rooms with temperatures between 18°C and 45°C . With a capacity of 2.7 kW (9,200 Btu/h) and an air flow rate of 400 m³/h , it ensures even distribution of cool air thanks to its axial fan.

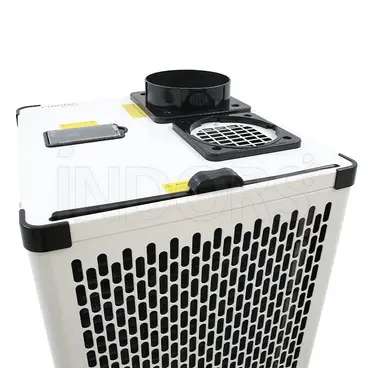

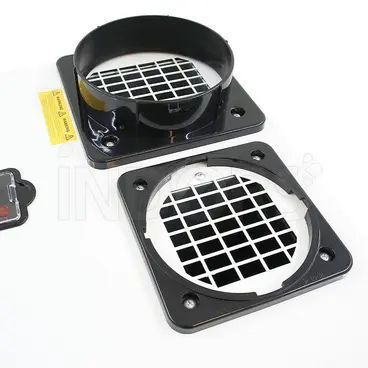

With a single-phase 230V connection , the PT 2700 SP mobile cooler absorbs 1150 W of power with a nominal current of 4.2 A, guaranteeing energy efficiency and excellent performance. Its structure is designed for practical and immediate use, with a cold air outlet duct 385 mm long and 120 mm in diameter , as well as a vertical hot air exhaust pipe Ø 160 mm x 350 mm .

Equipped with a condensate collection tank with a lighted filling indicator , the Trotec PT 2700 SP offers simple and trouble-free operation. Furthermore, with a noise level of 55 dB(A) at one meter, it ensures relatively quiet operation, making it ideal for precisely controlling air conditioning in workshops, industrial environments, utility rooms, and much more.

Ecological Refrigerant

This air conditioner uses R290 propane as a refrigerant, a natural organic compound belonging to the hydrocarbon class. Unlike synthetic refrigerants, eco-friendly propane (R290) has neither ozone depletion potential (ODP = 0) nor a significant greenhouse effect (GWP = 3).

Furthermore, thanks to its exceptional thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant and further reduces energy costs.

Areas of use

• Direct cooling of workstations to eliminate heat stress
• Targeted cooling of end-of-line test benches or other workstations on the production line
• Rapid temperature reduction in rooms with servers, networks and heat-generating electronics
• Temporary backup cooling for existing systems in adverse weather conditions
• Spot cooling of heat-generating machinery and plant components
• Emergency cooling in case of primary system failure
• Targeted cooling on ships, in tents or in mess kitchens

Characteristics

• Robust single-channel spot cooler for targeted cooling as needed, with two fan levels
• No installation work, ready to use immediately
• The cold air duct can be tilted and rotated as desired for precise air delivery
• Durable sheet steel construction, ideal for use even in harsh environments
• High maneuverability and mobility thanks to the compact design and sturdy wheels with lock
• Indicator light that indicates when the water tank is full
• Connection for external condensate drain

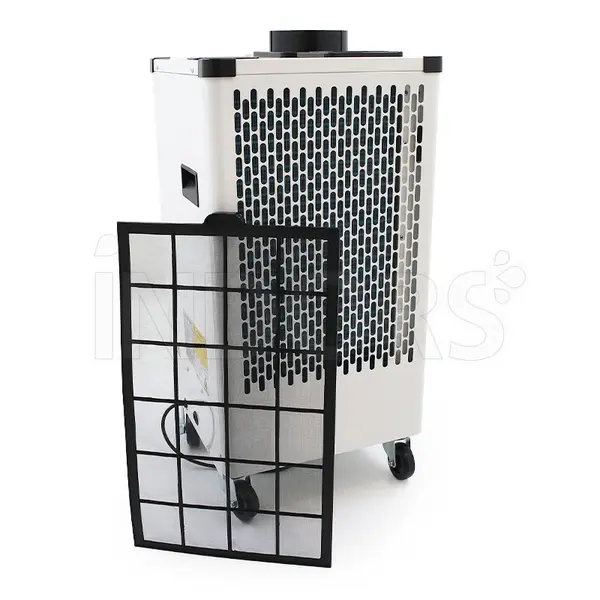

• Washable air filter to protect internal components from dirt
• Possibility of connecting the flexible hose for the hot air discharge to the outside

Standard Equipment

• 1x Washable Air Filter
• 1x Adjustable Air Outlet Pipe
• 1x Vertical hot air exhaust pipe
• 1x Condensate Tank
• Instruction Manual
