Trotec PT 2000 SP
Spotcool Air Conditioner

Trotec PT 2000 SP - Spotcool Air Conditioner for Hot Work Areas

The Spotcool Trotec PT 2000 SP air conditioner is a mobile cooler from the PT-SP Series designed to bring pleasant freshness to the workstation with
millimetre precision . Simply place it, switch it on and enjoy the fresh air that arrives. Ready to use and without the need for any installation , the Trotec PT 2000 SP has a cooling capacity of 2 kW (7000 Btu/h) and an air volume of 230 m³/h , providing instant cooling exactly where it is needed.

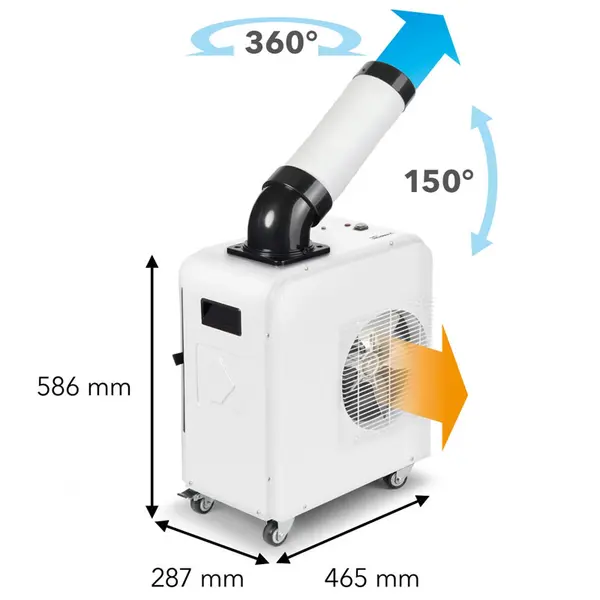

The spot cooler's cold air duct can be tilted 150 degrees and rotated 360 degrees to promote precise cooling by blowing cold air specifically to the desired area.

The ease of use and the excellent price-performance ratio make this spot cooler the best choice for the targeted cooling of workshops, halls, industrial kitchens but also machinery, system components, server rooms or for targeted cooling at events, during welding work or in the catering sector.

Technical Specifications

The PT 2000 SP spotcooler air conditioner is a compact and powerful air conditioner, designed to provide targeted and effective cooling in rooms with temperatures between 20 °C and 43 °C . With a maximum cooling capacity of 2.0 kW (7,000 Btu) , it guarantees a maximum air flow of 230 m³/h , supported by an axial fan that ensures uniform distribution of cold air.

With single-phase 230V (50 Hz) power supply , the Trotec PT 2000 SP absorbs a maximum power of 950 W with a nominal current of 3.2 A , making it energy efficient.

The structure of the air conditioner has been designed to facilitate installation and use. The device is equipped with a cold air outlet channel with a length of 385 mm and a diameter of 120 mm . The presence of a condensation collection tank , with a light signal in case of a full container, makes it a practical and immediate solution for localized air conditioning. With a noise level of 52 dB(A) at one meter distance, Trotec PT 2000 SP ensures fairly quiet operation.

Eco-friendly Coolant

This air conditioner uses R290 Propane as refrigerant, which is a natural organic compound that belongs to the hydrocarbon class. Unlike synthetic refrigerants, ecological propane ( R290 ) has neither an ozone depletion potential (ODP = 0) nor a significant greenhouse effect (GWP = 3).

Furthermore, thanks to its exceptional thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant and further reduces energy costs.

Areas of use

• Direct cooling of workstations to eliminate heat stress
• Targeted cooling of end-of-line test benches or other workstations in the production line
• Rapid temperature reduction in rooms with servers, networks and heat-generating electronics
• Temporary backup cooling for existing systems in adverse weather conditions
• Spot cooling of heat-generating machinery and plant components
• Emergency cooling in case of primary system failure
• Targeted cooling on ships, in tents or in canteen kitchens

Characteristics

• Robust single-channel spotcooler for rapid targeted cooling
• No installation work, ready to use immediately
• The cold air duct can be tilted and rotated as desired for precise air delivery.
• Durable sheet steel construction, ideal for use even in harsh environments
• High maneuverability and mobility thanks to the compact design and sturdy wheels with lock
• Indicator light that indicates when the water tank is full
• Washable air filter to protect internal components from dirt

Standard Equipment

• 1x Washable Air Filter
• 1x Adjustable Air Outlet Pipe
• 1x Condensation Tank
• Instruction Manual
