Trotec PAC-W 2650 SH
Wall-mounted Air Conditioner
with Heating Function

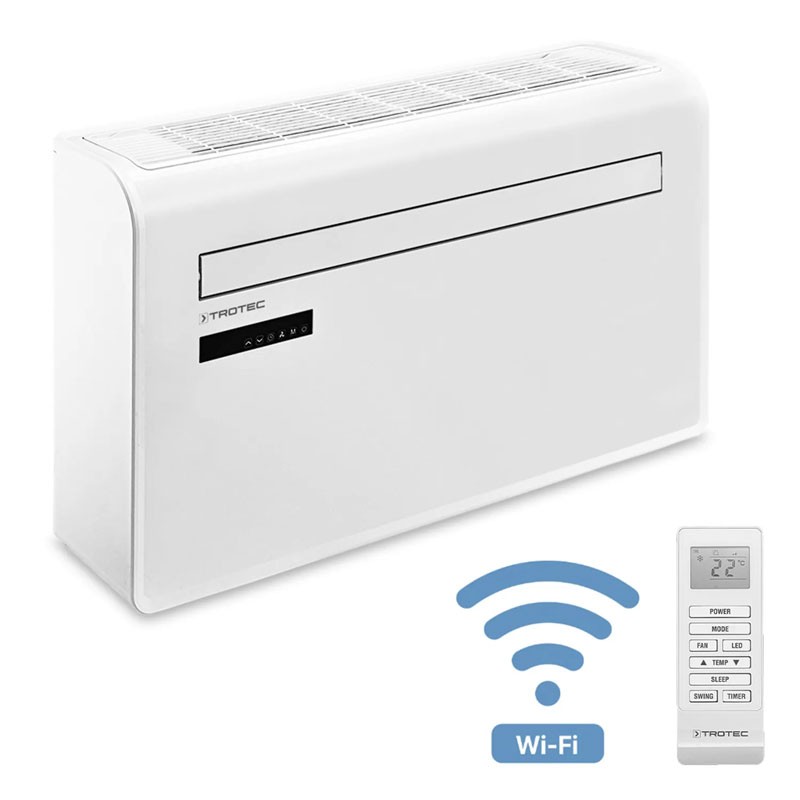

Trotec PAC-W 2650 SH - Wall-mounted Air Conditioner with Heating Function without Masonry Work

The PAC-W 2650 SH wall-mounted air conditioner represents a cutting-edge solution for cooling and heating, combining the two functions in a single, high-performance and energy-efficient machine. Thanks to the air-to-air heat pump technology , this device offers energy-efficient operation, using renewable energy to heat and cool rooms in a very short time . This means that your expensive gas heating system can remain switched off more often, saving you money and protecting the environment.

Ideal for both domestic and professional spaces, the Trotec PAC-W 2650 SH air conditioner cools quickly and efficiently without requiring professional installations and complex masonry work . In fact, its installation does not require unsightly external units , preserving the aesthetics of the building and simplifying the assembly process as well as avoiding the need to request special permits.

Trotec PAC-W 2650 SH is designed exclusively for indoor installation and can be placed either as a floor device (on the floor) or as a wall device (on the wall / under the ceiling) .

Maximum efficiency without the need for an unsightly external unit subject to approval

Functional specifications

Easy Installation

To install this designer air conditioner on the wall, only two Ø 18 cm diameter holes are needed on a wall that communicates with the outside. This allows the aesthetics of the facade to be kept almost intact, with only two discreet ventilation openings visible.
Through these ducts, fresh air enters the room, while the internal heat is expelled outside , ensuring a comfortable and efficient environment without altering the appearance of the building.

The Trotec PAC-W 2650 SH wall-mounted air conditioner offers a cooling system without an external heat exchange unit , eliminating the need to create a refrigerant circuit between the internal and external units. This innovative design simplifies installation, often making the intervention of specialized technicians unnecessary , with significant savings on assembly costs.

Automatic Temperature Control

The PAC-W 2650 SH air conditioner ensures automatic temperature regulation, offering comfort in every season.

On hot summer days, it cools rooms up to 85 m³ with a power of 2.6 kW, lowering the temperature even up to 16°C, while in cold periods it quickly spreads heat with a power of 2.3 kW , maintaining the ideal temperature. There is also a three-speed ventilation mode which offers an immediate sensation of freshness. The swing function distributes the air evenly.

There is also a Dehumidifier Mode that helps maintain the right level of humidity when desired.

Eco-friendly Coolant

This air conditioner uses R290 Propane as refrigerant, which is a natural organic compound that belongs to the hydrocarbon class. Unlike synthetic refrigerants, environmentally friendly propane (R290) has neither ozone depletion potential (ODP = 0) nor a significant greenhouse effect (GWP = 3).

Furthermore, thanks to its exceptional thermodynamic properties, propane (R290) is a particularly energy-efficient refrigerant and further reduces energy costs.

24 Hour Timer with App

The practical 24-hour timer allows you to program the on and off times. In addition, thanks to the dedicated smartphone app, you can manage the operation of the air conditioner even when you are away from home.

Silent Night Mode

The PAC-W 2650 SH air conditioner has a silent night mode with automatic temperature regulation. In cooling mode, the preset temperature is gradually increased by 2 °C during the first two hours and then kept constant, while in heating mode the night mode lowers the room temperature by 2 °C in the first two hours.

Technical Specifications

Trotec PAC-W 2650 SH offers a maximum cooling capacity of 2.6 kW (9000 Btu/h) and a maximum air flow rate of 500 m³/h . As for the maximum heating capacity, it is 2.3 kW with the same air flow rate. Maximum dehumidification capacity 1.2 L/h .

To operate it requires a single-phase 230V (50 Hz) connection with a maximum absorbed power of 1 kW . The air conditioner uses R290 refrigerant (280g). The noise level does not exceed 59 dB(A) , depending on the selected ventilation level.

The low-consumption Trotec 1211000023 air conditioner has an LED display , automatic error diagnostics and a timer function as well as an antibacterial filter for improving the air .

Areas of use

• Domestic dwellings
• Professional areas
• Public spaces
• Commercial areas

Characteristics

• 4-in-1 air conditioner: cooling, heating, ventilation, dehumidification
• Ultra-thin wall-mounted device without external unit: no visual impact on the facade of the house
• Easy to install
• Wireless connection and smartphone control via App
• Suitable for rooms up to 34 m² / 85 m³
• Cooling capacity up to 2.6 kW (energy efficiency class A)
• Thermal power up to 2.3 kW (energy efficiency class A)
• Energy-saving inverter technology for constant and smooth room temperatures
• No draughts in the room thanks to the supply of fresh air from outside
• 3 ventilation levels
• 24 hour timer function
• Infrared remote control
• Swing function
• Removable air filter against animal hair, fluff and dust
• Night mode
• Silent operation ≤ 48 dB(A)
• Ecological refrigerant R290

Watch the video

Standard Equipment

• 1 x Air Conditioner PAC-W 2650 SH - cod. 1.211.000.023
• Wall installation kit
• Infrared remote control
• Ceiling Installation Kit
• Instruction Manual

Real life photos

Extra Accessories on Request

• Wireless thermostat with timer BN35 - code 6100007008
• Socket thermostat BN30 - code 6100007009
