Trotec PT 23000 S
Commercial Air Conditioner
3 Heat Exchangers

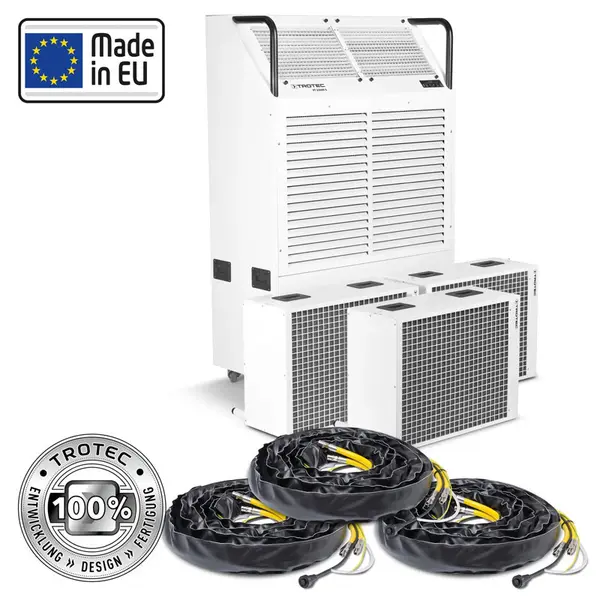

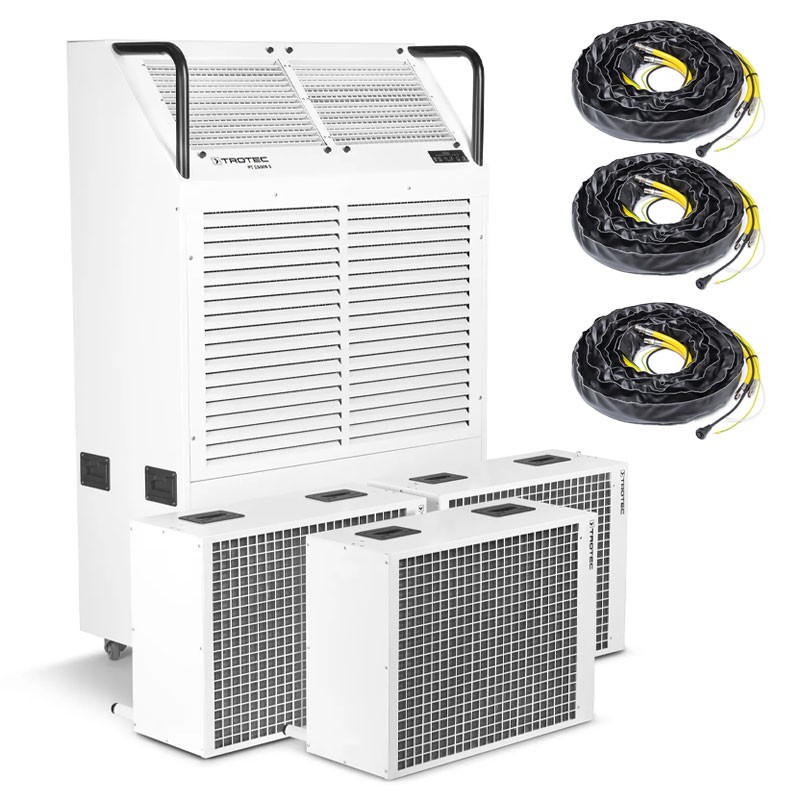

Trotec PT 23000 S - Commercial Portable Air Conditioner with 3 Heat Exchangers

The Trotec PT 23000 S commercial air conditioner is a mobile cooling solution designed to meet the highest demands in the professional sector .
Thanks to its robust split structure and ease of transport , this device ensures effective and reliable cooling in large environments.

Installation is quick and easy: by positioning the units, connecting the external heat exchangers via quick-release couplings and powering the system, the Trotec PT 23000 S is ready for use in just a few minutes.

In addition, the connection circuit uses glycol water , eliminating the risk of refrigerant leaks during connection or disconnection operations. The possibility of extending the connection distance up to 30 meters allows effective cooling even in remote or windowless environments.

Technical Specifications

The Trotec PT 23000 S offers a maximum cooling capacity of 29.4 kW (100,384 Btu/h) and an air flow rate adjustable in three levels:

• 2,500 m³/h
• 2,700 m³/h
• 3.200 m³/h

It is designed to reach ambient temperatures of up to 10 °C , depending on operating conditions. The required power supply is 400 V at 50 Hz , with a power consumption of 9.5 kW and a nominal current of 22.8 A.

The compressor uses R-410A refrigerant , with a quantity of 2,300 g and a GWP of 2,088. The noise level varies between 54 and 59 dB(A) , depending on the selected ventilation level.

Functional Specifications

This PT 23000 S professional mobile air conditioner is equipped with a powder-coated galvanized steel structure , which guarantees high resistance to bad weather and aggressive environments.

Stable wheels and a slim frame make it easy to transport and maneuver even in tight spaces; the device can pass through standard doors and enter elevators without difficulty. Two integrated handles protect the front panel from any impact damage and make it easy to move.

The microprocessor-controlled hot gas defrosting system ensures continuous operation without interruptions, while the two high-pressure radial fans ensure efficient air circulation, allowing uniform cooling even in large rooms.

The air outlet grille is adjustable , allowing you to direct the cold airflow to your specific needs. Additionally, the Trotec PT 23000 S can be used as a spot cooler with the optionally available insert, offering a versatile solution for a variety of cooling applications.

Extra fast connection

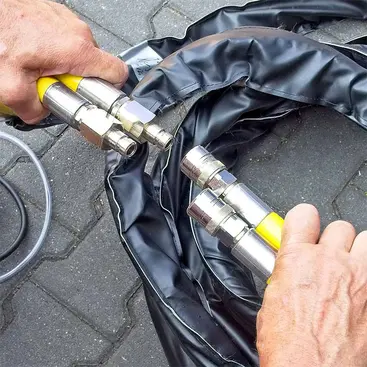

Thanks to the quick-connect water cooling circuit , installation becomes flexible and simple. The PT Series air conditioning systems are designed with two separate cooling circuits to ensure optimum efficiency. The cooling unit circuit is hermetically sealed , while a second circuit, which connects the cooling unit to the external heat exchanger, uses water with a reduced percentage of glycol as the cooling fluid. This system prevents any loss of refrigerant during installation or disconnection operations.

For quick and safe installation, the connection kits are equipped with high-quality quick couplings, allowing the exchanger to be positioned up to 30 meters away without difficulty. Thanks to this solution, the system is ideal for environments such as offices, server rooms, production rooms, distribution rooms and studios, where it is not possible to dissipate heat in the immediate vicinity.

Areas of use

• Emergency cooling
• Fairs and exhibitions
• Laboratori
• Offices and shops
• Party tents
• Temporary accommodations
• Warehouses and production premises
• Computer rooms, measuring and regulation centres
• Gastronomy
• Cooling during peak periods

Characteristics

• Robust structure designed
• Easily moveable
• Fast cooling even of large spaces
• Easy installation without the intervention of specialized personnel
• Ready to use in minutes
• Hot gas defrosting for uninterrupted cooling
• Double radial fan with high air circulation with AC motor
• Robust exchanger with aluminum fins with thick-walled copper tubing
• Refrigerant-free heat dissipation from indoor unit to heat exchanger
• Quick-connect ducts extendable up to 30 m to cool distant and windowless rooms

Standard Equipment

• 1 x Air conditioner PT 23000 S - code 1.210.001.080
• 3 x Heat Exchanger PT S+ - cod. 1.210.000.112

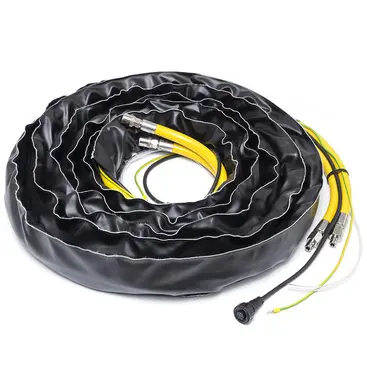

• 3 x Coated Connection Pipe Kit - cod. 1.210.000.133

Extra Accessories on Request

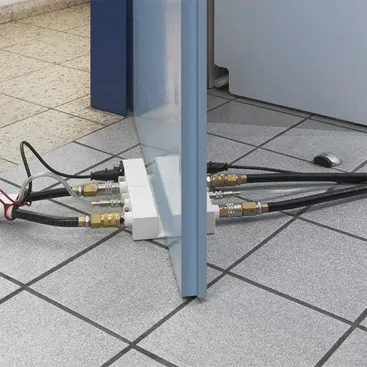

• PLANO PT - for connection under the door

The Trotec PT 23000 S comes with the PlanoPT included , a special connection system that can be conveniently installed under all conventional internal and external doors. The PlanoPT has no effect on the door closing, which allows you to keep external doors of event rooms closed, for example.

• DUALHEX JOINT - perfect for extreme ambient temperatures

Thanks to the DualHex coupling for the Duplex Cooling system, two heat exchangers can be connected in series on each connecting pipe. Thanks to this technique, this PT air conditioning system can also be used at temperatures of up to 45 °C – or at lower temperatures, the devices are prevented from operating at full load.
