Fiac AB 300/515
4 HP Three-Phase Compressor
270L Tank Made in Italy

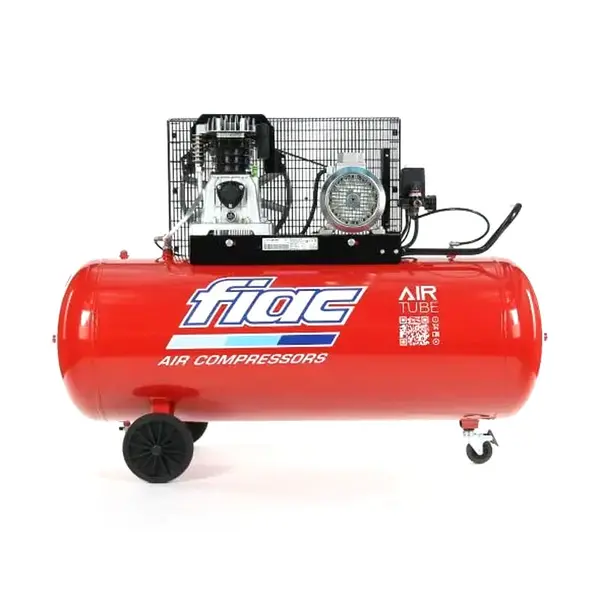

Fiac AB 300/515 - 4 HP Three-Phase Compressor 270L Tank Made in Italy

Fiac AB 300/515-4-TC is a professional quality compressor Made in Italy with belt drive and three-phase power supply. The machine guarantees high performance, providing high air flow at a pressure of 10 bar .

The Fiac AB 300/515 400V compressor uses a high-quality AB 515 pumping unit and cast iron cylinders; the robust structure has been developed to reduce vibrations to a minimum and there is also a one-piece crankcase which, thanks to its construction shape, prevents oil leaks. The large 270-litre tank has an epoxy powder coating to ensure maximum resistance over time.

Fiac AB 300 works at a low rotation speed (1280 RPM) and this allows to guarantee maximum reliability and great durability over time .

Functional Specifications

Belt Driven Compressor

This piston compressor with belt drive is oil lubricated and ideal for professional use . The Fiac AB 300 compressor is a two-stage compressor , equipped with 2 pistons that compress the air with 2 pressure jumps, to obtain a lower air temperature. With cooling pipes , cast iron cylinder , pressure switch and overload protection , double pressure gauge , metal bearing cover and large oil sight glass . Vibrations and reduced noise impact.

Epoxy powder coating

Epoxy powder coated to guarantee perfect durability over time.

Characteristics

• 400V Three Phase Belt Driven Compressor
• Single stage 2 cylinder engine
• Max pressure 10 bar
• Capacity 270 L
• Power 4 HP
• Engine speed 1280 RPM
• Flow rate 482 L/min
• Noise level 77 dB(A)
