Fiac AB 100/268-2-TC
2 HP Three-Phase Compressor
Made in Italy
MPN: 4116028315
400V - 2 HP
10 bar - 250 L/min
Serbatoio 100 L
€639.00
€523.77 tax excl.
Warranty 2 years
Shipped on Pallet

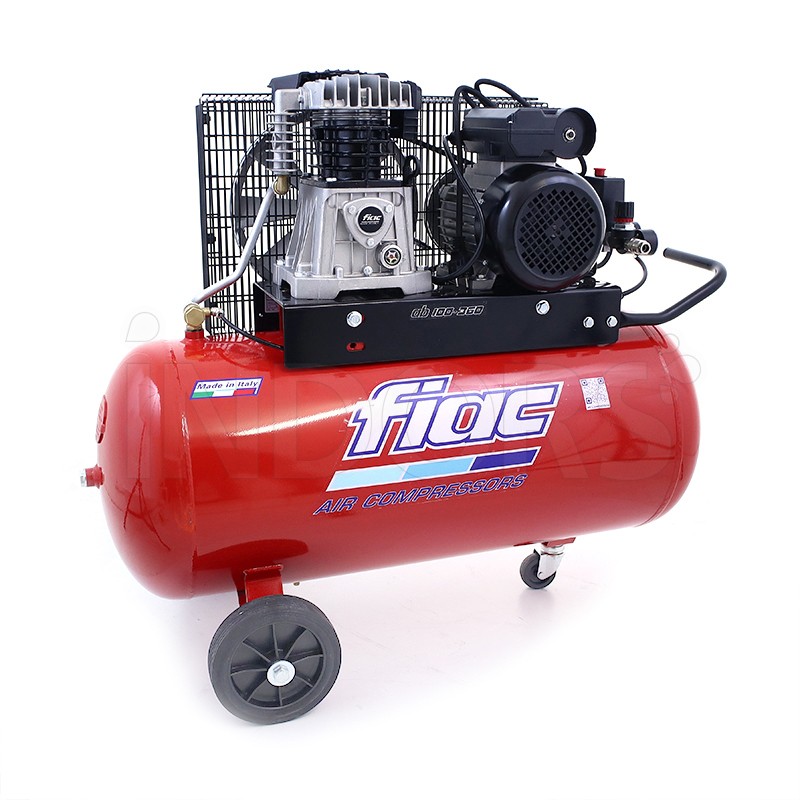

Fiac AB 100/268-2-TC - 2 HP Trolley Compressor with 100 L Tank, Made in Italy
The Fiac AB 100/268-2-TC compressor is a single-stage lubricated compressor equipped with an AB268 pump unit with double cast iron cylinder. Equipped with a 100 L tank, this professional compressor ensures high performance at low rotation speed , thus preventing engine overheating and significantly extending the compressor's life.
Fiac AB 100/268-2-TC has 2 HP power and maximum operating pressure 10 bar and are equipped with practical transport wheels and a handle .
These Fiac AB compressors are also perfectly suited for use in painting, inflating tyres and with nail guns.
Professional Compressors Made in Italy
DETAILS OF FEATURES
| Model | 100/268-2-TC |
| Power | 2 HP - 1.5 kW |
| Revolutions per Minute | 1240 RPM |
| Flow rate | 250 L/min |
| Connection | Three-phase 400 V |
| Pumping Group | AB 268 |
Technical Specifications
The 100L Fiac single-phase compressors from the Fiac AB 100 line are belt-driven compressors equipped with a pressure switch with overload protection and pressure regulator . These 100L tank compressors stand out for their high air flow rate of 250L/min and low engine speed (1240 RPM).
. Equipped with an AB 268 pump unit, this piston compressor is ideal for professional use and works at 1240 rpm .
Mechanically flawless, the pump unit is a robust and highly reliable Italian-made unit with a low rotation speed and belt drive . The electric motor used is a professional induction motor built to a high standard to support the high starting torque required.
Characteristics
- Three-phase compressor 400V
- Single-stage 2-cylinder engine
- Max pressure 10 bar
- Capacity 100 L
- Power 2 HP
- Engine speed 1240 RPM
- Flow rate 250 L/min
- Noise level 72 dB
Technical Data
| Model | AB 100/268-2-TC |
| Code | 4116028315 |
| Food | 400V |
| Power | 2 HP |
| Absorbed Power | 1.5 kW |
| Cylinders | 2 - Monostadium |
| Engine RPM | 1240 RPM |
| Scope | 250 L/min |
| Pressure | 10 bars |
| Tank | 100L |
| Pompante Group | AB 268 |
| Noise level at 7 meters | 72 dB(A) |
| Configuration | Truck |
| Dimensions | 50.2 x 98.1 x 86.2h cm |
| Peso | 58 kg |
Technical Data
| Model | AB 100/268-2-TC |
| Code | 4116028315 |
| Food | 400V |
| Power | 2 HP |
| Absorbed Power | 1.5 kW |
| Cylinders | 2 - Monostadium |
| Engine RPM | 1240 RPM |
| Scope | 250 L/min |
| Pressure | 10 bars |
| Tank | 100L |
| Pompante Group | AB 268 |
| Noise level at 7 meters | 72 dB(A) |
| Configuration | Truck |
| Dimensions | 50.2 x 98.1 x 86.2h cm |
| Peso | 58 kg |
