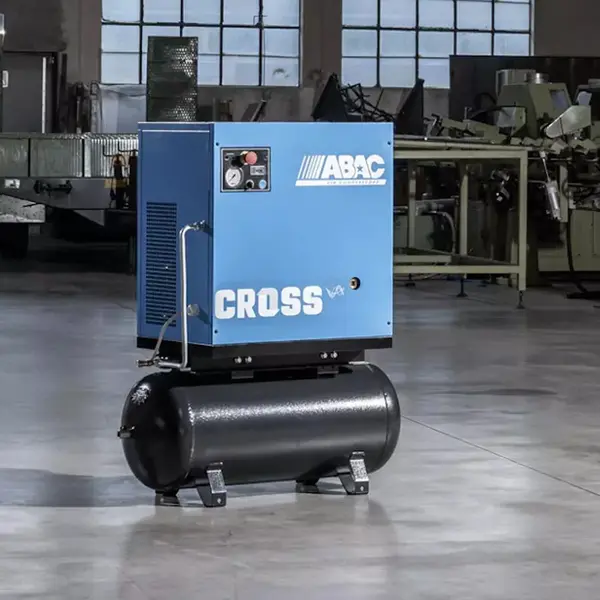

ABAC CROSS 900 Base-mounted Screw Compressor
10 HP Silenced

ABAS CROSS 900 Base-mounted Screw Compressor - 10 HP Silenced

The Abac Cross 900 base is a screw compressor with excellent performance and which allows significant energy savings, it is the ideal compressor for those looking for reliability and versatility .

Its advanced technology allows for an improvement in operating efficiency of 40% and a reduction in consumption of up to 25% compared to a normal piston compressor , ensuring optimal use for industrial and craft activities.

The Cross 900 stands out for its exceptional silence , with only 63 dB(A) , a sound level similar to that of a common household appliance.

The intelligent and compact design allows you to save up to 50% of the space compared to traditional models, while ensuring maximum performance.

With simple setup and intuitive features , this compressor is designed to minimize maintenance and optimize operating costs.

The Abac Cross 900 not only helps improve productivity, but also contributes to reducing environmental impact thanks to a significant decrease in CO2 emissions , representing a sustainable and cutting-edge choice .

This professional Ab ac piston compressor offers numerous advantages:

• Inverter technology with soft start, ensuring a long operating life
• Excellent for intermittent and continuous use
• Efficient operation and high durability over time
• High air flow and pressure of 10 bar
• Quiet operation with a noise level of up to 63 dB(A)

Technical specifications

The Abac Cross 900 compressor is equipped with a 200 L capacity tank and supports a real air flow rate of 848 L/min and a maximum operating pressure of 10 bar.
Thanks to the 7.5 kW (10 HP) motor with inverter technology , it offers a smooth and gradual start , reducing stress on components such as bearings and belts by up to 80% , prolonging their life.

Another strong point of the Cross 900 is its energy efficiency . The compressor guarantees air yield close to 100%, minimizing consumption and maximizing productivity.
Inverter technology allows for a high turndown rate , reducing stress on components and optimizing energy consumption. The machine is also designed to eliminate the risk of condensation under low-load conditions , ensuring dry compressed air and low oil content , thus protecting the connected tools .

The Cross 900 is built with a robust design that facilitates access to internal components, making maintenance quick and easy . With IP54 filter protection and an air-cooled PM motor with IP23 protection , the compressor ensures reliability even in demanding operating conditions. These features, combined with its versatility of use and adaptability to both intermittent and continuous applications, make the Abac Cross 500 an ideal solution for those seeking high performance, low operating costs and minimal environmental impact.

Watch the Video

Characteristics

• For intermittent and continuous use
• Actual air flow 900 L/min
• Maximum pressure 10 bar
• 7.5 kW - 10 HP engine
• Inverter technology
• Low noise up to 63 dB(A)
• Compact design, space reduced by 50%
• Simplified maintenance
• Low oil content and dry air
• Gradual start-up
