Abac EXT A29B 50 CM2/CT2
Professional Compressor 50L

Abac EXT A29B 50 CM2/CT2 - EXtensive Professional Compressor 50L EXceed range

Abac EXtensive model EXT A29B 50 CM2 and model EXT A29B 50 CT2 from the EXceed range with code 4116028000 / 4116028003 is a professional single-phase or three-phase (your choice) and single-stage piston compressor made of high-quality materials and easy to use. Ideal for professional use, this Abac EXT A29B 50-litre compressor has an excellent balance between performance and reliability .

With a 50 L tank, the Abac EXtensive EXT A29B piston compressor has a 230V or 400V 2 HP motor with an air flow rate of 255 L/min .

Available Models

The ABAC EXT A29B 50 compressor is available in single-phase 230 V and three-phase 400 V versions, selectable from the drop-down menu:

• ABAC EXT A29B 50 CM2 - Single phase 230V
• ABAC EXT A29B 50 CT2 - Three-phase 400V

Functional Specifications

Piston compressor

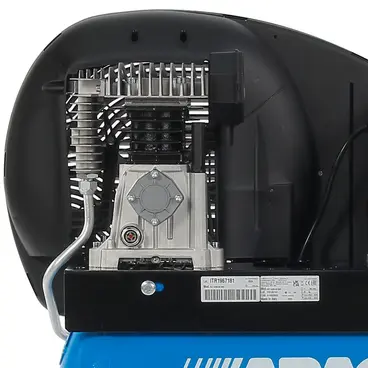

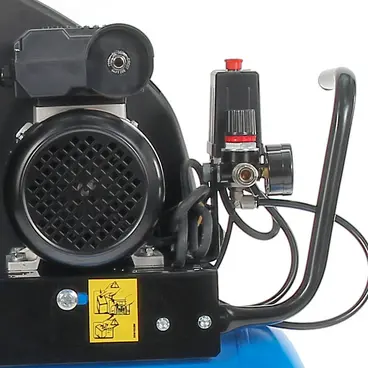

This belt-driven piston compressor with a drive pulley and ventilation fins is designed for professional use. The ABAC A29B 50 compressor is equipped with a robust 1.5 kW motor at 1075 RPM .

High Performance

The ABAC A29B 50 CM2 compressor, with a flow rate of 255 L/min , 50 litre tank and maximum pressure of 10 bar , is ideal for professional use, offering high performance for a wide range of applications.

Compact and Easily Transportable

It facilitates transport and use in confined spaces. Furthermore, the Abac EXT A29B 50 CM2 features a sturdy single-sided carrying handle that allows for easy transport without straining your back. The 200 mm rear wheels are designed for high resistance and maximum stability , while the front wheel is swivel and has a brake.

Simple Maintenance

Easily accessible components for quick maintenance make Abac EXceed the suitable solution even for the less experienced user without needing to dismantle the machine for ordinary maintenance.

Energy Efficiency and Safety

This compressor is equipped with an optimised control system to reduce consumption. It also features safety valves and thermal protections for safe operation.

Functional Specifications

Abac EXtensive EXT A29B 50 CM2 is equipped with a 2 HP (1.5 kW) single-stage motor with a 1075 rpm pump unit . This professional compressor has a maximum air flow rate of 255 L/min and an operating pressure of 10 bar .

With a 50 L tank , the ABAC piston compressor is equipped with a Schuko plug .

Characteristics

• Available in both single-phase and three-phase
• 50 L horizontal tank
• Power 2 HP - 1.5 kW
• Pressure 10 bar
• Low rpm 1075 rpm
• Easy to carry
