Abac EXT A29B 50 CM3/CT3
Single Stage Compressor 50L

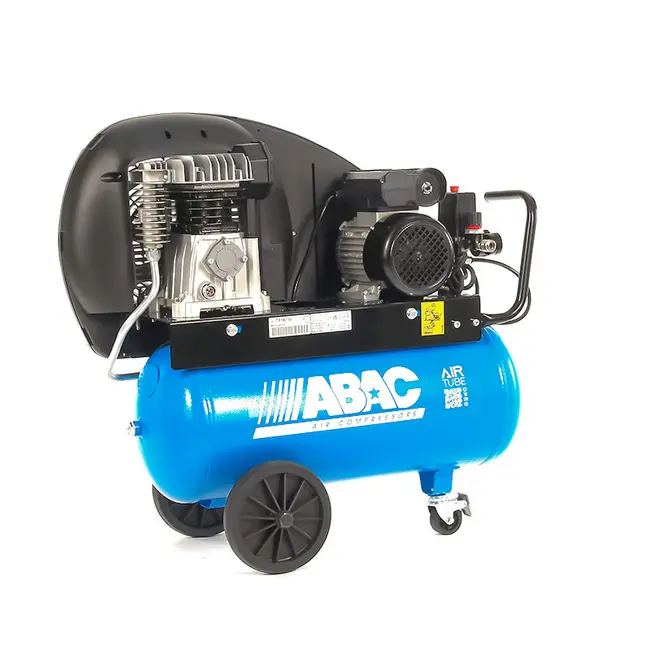

Abac EXtensive A29B 50 CM3 / CT3 - Single-stage compressors 50L EXceed range

The Abac EXTensive compressors model EXT A29B 50 CM3 and EXT A29B 50 CT3 of the EXceed range are high quality single-phase and three-phase piston compressors, both single-stage, designed for professionals and DIY enthusiasts. With an excellent balance between performance and reliability , this 50L Air Compressor is easy to use and made of high quality materials.

With a 50L tank, the Abac EXtensive EXT A29B piston compressor has a 230V / 400V 3 HP motor with an air flow of 320 L/min .

Available models

The following two versions of Abac EXT A29B 50 are available from the drop-down menu:

• Single phase 230V - EXT A29B 50 CM3
• Three-phase 400V - EXT A29B 50 CT3

Functional specifications

Compact and Easily Transportable

It facilitates transport and use in narrow spaces. In addition, Abac EXT A29B 50L has a sturdy single-side transport handle that allows you to transport it easily without straining your back. The 200 mm rear wheels are designed to obtain high resistance and maximum stability while the front wheel is pivoting with brake

Simple Maintenance

Easily accessible components for quick maintenance make Abac EXceed the suitable solution even for the less experienced user without having to dismantle the machine for ordinary maintenance.

Energy Efficiency and Safety

This compressor is equipped with an optimized control system to reduce consumption, and it also features safety valves and thermal protections for safe operation.

Low Noise

The sound power level is 96 LWA / 75 LPA.

Functional Specifications

Abac EXtensive EXT A29B 50 is equipped with a 3 HP (2.2 kW) single-stage motor with a 1300 rpm A29B pump unit . This professional compressor has a maximum air flow rate of 320 L/min and an operating pressure of 10 bar .

With a 50 L tank, the ABAC piston compressor is equipped with a Schuko plug .

Characteristics

• Single-phase / three-phase compressor
• Horizontal tank 50 L
• Power 3 HP - 2.2 kW
• Pressure 10 bar
• Low rpm 1300 rpm
• Easy to carry
