ABAC SPINN 11 500 L
Screw Compressor 500L 11 kW Dryer Option
400V - 15 HP
10 bar - 1416 L/min
500 L Tank Dryer Option
Warranty 2
years
Shipped on Pallet

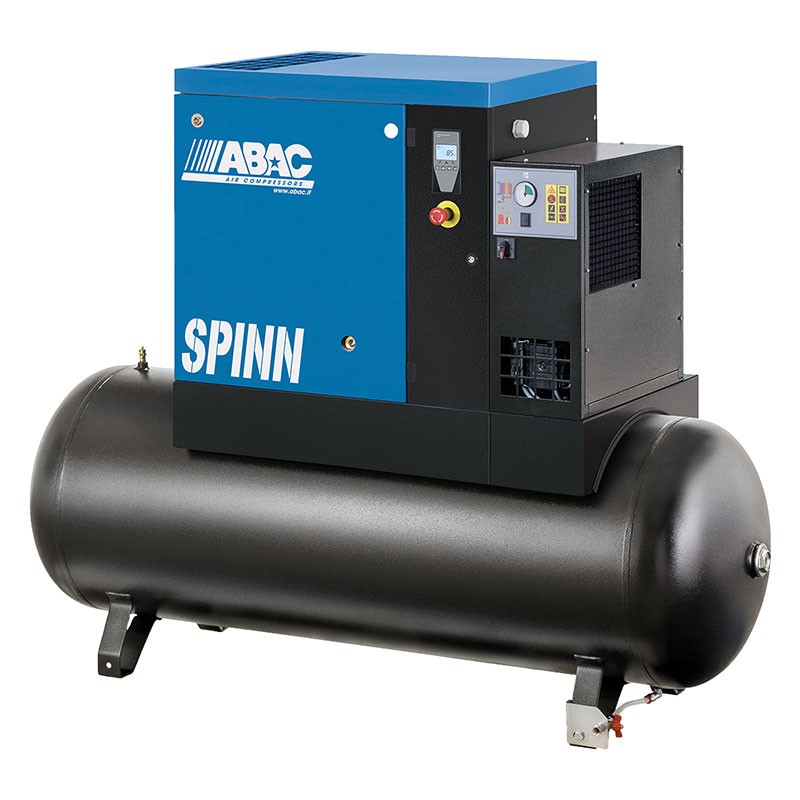

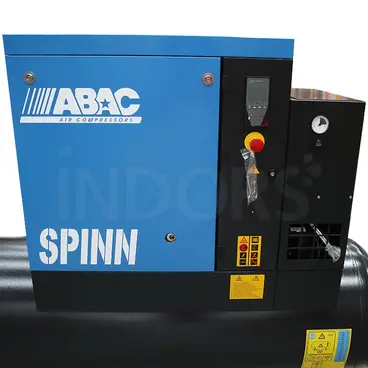

ABAC SPINN 11 500 L - Screw Compressor 11 kW 500 L Tank Dryer Option
ABAC SPINN 11 is an 11 kW 500-liter screw compressor designed for intensive professional use in workshops, garages, tire shops, companies, and workplaces with a continuous demand for compressed air. The 500-liter tank configuration provides a significant air reserve, while the 11 kW (15 HP) three-phase motor and maximum pressure of 10 bar make it suitable for numerous professional applications.
The range is also available in the SPINN 11E version with an integrated dryer, recommended when compressed air with reduced moisture content is required. The screw unit, compact structure, and soundproofed casing with noise levels of only 69 dB(A) allow the machine to be used even close to the work area.
Also available in 8 bar and 13 bar versions upon request.
Available Models

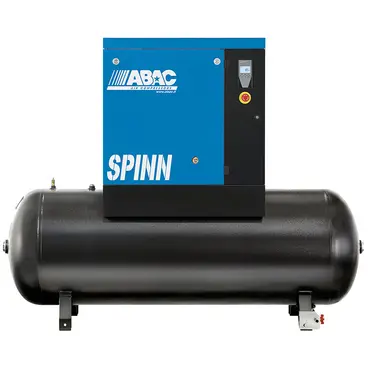

- SPINN 11 - 500 L tank

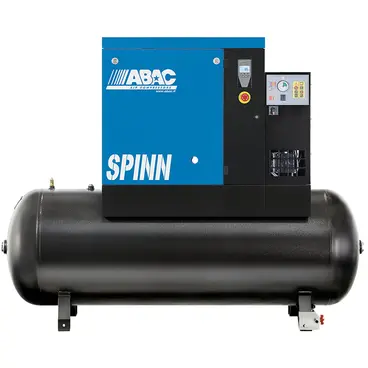

- SPINN 11E - 500 L tank + dryer
Technical Specifications
ABAC SPINN 11 features an 11 kW - 15 HP electric motor. The power supply is three-phase 400 V / 50 Hz, and the starting type is star-delta. The configuration is mounted on a 500-liter tank. The maximum operating pressure is 10 bar, and the air flow rate is 1416 l/min. The noise level is 69 dB(A).
Functional Specifications
Abac SPINN compressors are easy to install and, thanks to quick access to components, allow for fast maintenance. The ability to easily install them near the work area also reduces the need for extensive piping. Abac Spinn compressors are built with high-quality components and achieve over 30% greater efficiency compared to piston compressors.
You can choose from a wide range of models with different power ratings to meet every need and decide whether to equip the compressor with a dryer or not. The presence of an integrated dryer is perfect for situations where compressed air without water vapor residue is required.
These compressors are equipped with an Infologic Basic Controller digital controller for secure and intuitive setting control. This system allows for daily configuration of settings.
Also available in versions with a 270 L tank or without a tank.
Simplified Maintenance and Quick Component Access
The design of the SPINN series provides easy access to components, aiming to make routine maintenance operations simpler and faster. For professional use, this aspect helps reduce downtime and facilitates machine inspection activities.
The construction with components designed for professional use, combined with screw technology with fewer moving parts compared to a piston compressor, contributes to the robustness and longevity of the solution.
Quiet Operation and Dryer Version
With noise levels of only 69 dB(A), the ABAC SPINN 11 belongs to a range designed to operate with low acoustic levels, a useful feature when the compressor needs to be installed near operators.
Features
- For intensive and continuous use
- Low noise level
- Ease of use and maintenance
- Ready for installation
- High efficiency
- Available with integrated dryer and tank
Technical Data
| SPINN 11E | SPINN 11 | |
| Tank | 500 L | 500 L |
| Max. pressure | 10 bar | 10 bar |
| Connection | 400 V | 400 V |
| Air Flow Rate | 1416 L/min | 1416 L/min |
| Power | 15 HP (11 kW) | 15 HP (11 kW) |
| Dryer | Yes | No |
| Air Outlet | 1/2'' | 3/4'' |
| Dimensions | 195 x 65 x 147 cm | 195 x 65 x 147 cm |
| Weight | 315 kg | 282 kg |
