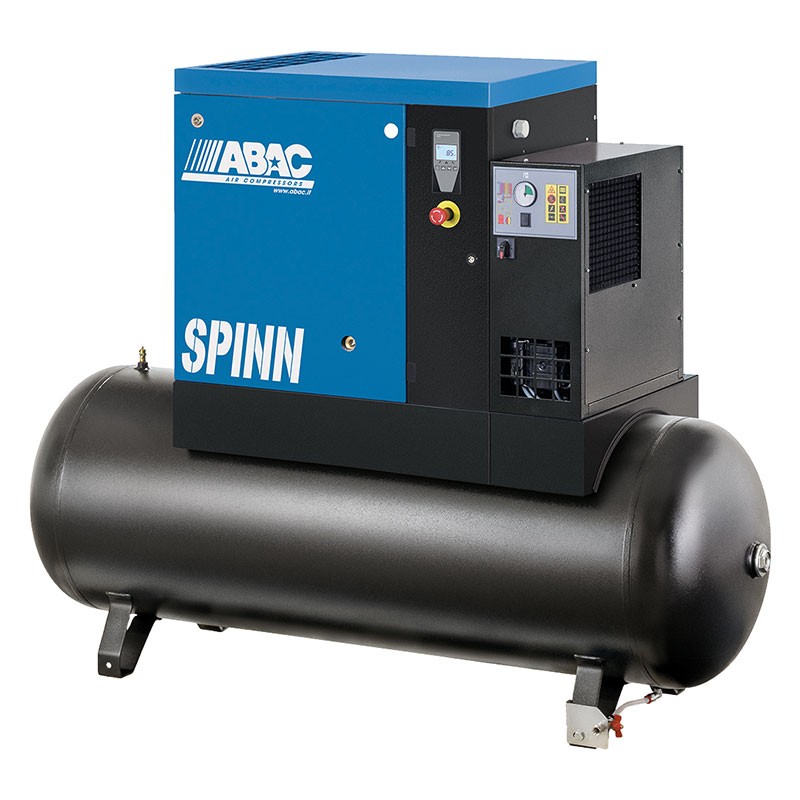

ABAC SPINN 5.5X 500 L
Screw Compressor 500L 5.5 kW Dryer Option

ABAC SPINN 5.5X 500 L - Screw Compressor 5.5 kW 500 L Tank Dryer Option

ABAC SPINN 5.5X is a 5.5 kW 500-liter screw compressor designed for intensive professional use in workshops, garages, tire shops, companies, and workplaces with a continuous demand for compressed air. The 500-liter tank configuration provides a significant air reserve, while the 5.5 kW (7.5 HP) three-phase motor and 10 bar maximum pressure make it suitable for numerous professional applications.

The range is also available in the SPINN 5.5XE version with an integrated dryer, indicated when compressed air with reduced moisture content is required. The screw unit, compact structure, and soundproofed casing with only 64 dB(A) noise level allow the machine to be used even close to the work area.

Also available in an 8 bar version upon request.

Available Models

• SPINN 5.5X - 500 L tank
• SPINN 5.5XE - 500 L tank + dryer

Technical Specifications

ABAC SPINN 5.5X features a 5.5 kW - 7.5 HP electric motor. The power supply is three-phase 400 V / 50 Hz, and the starting is star-delta type. The configuration is mounted on a 500-liter tank. The maximum operating pressure is 10 bar, and the air flow rate is 696 l/min. The noise level is 64 dB(A).

Functional Specifications

Abac SPINN compressors are easy to install and, thanks to quick access to components, allow for fast maintenance. The ability to easily install them near the work area also reduces the need for extensive piping. Abac Spinn compressors are built with high-quality components and can achieve over 30% greater efficiency compared to piston compressors.

You can choose from a wide range of models with different power ratings to meet every need and decide whether to equip the compressor with a dryer or not. The presence of the integrated dryer is perfect if you need to use compressed air without water vapor residue.

These compressors are equipped with an Infologic Basic digital controller for safe and intuitive setting control. This system allows for daily setting configuration.

Also available in versions with a 270 L tank or without a tank.

Simplified Maintenance and Quick Component Access

The design of the SPINN series provides easy access to components, aiming to make routine maintenance operations simpler and faster. For professional use, this aspect helps reduce the time required for interventions and facilitates machine inspection activities.

The construction with components designed for professional use, combined with screw technology with fewer moving parts compared to a piston compressor, contributes to the robustness and durability of the solution.

Quiet Operation and Dryer Version

With a noise level of only 64 dB(A), the ABAC SPINN 5.5X belongs to a range designed to operate with low acoustic levels, a useful feature when the compressor needs to be installed near operators.

Features

• For intensive and continuous use
• Low noise level
• Ease of use and maintenance
• Ready for installation
• High efficiency
• Available with dryer and integrated tank
