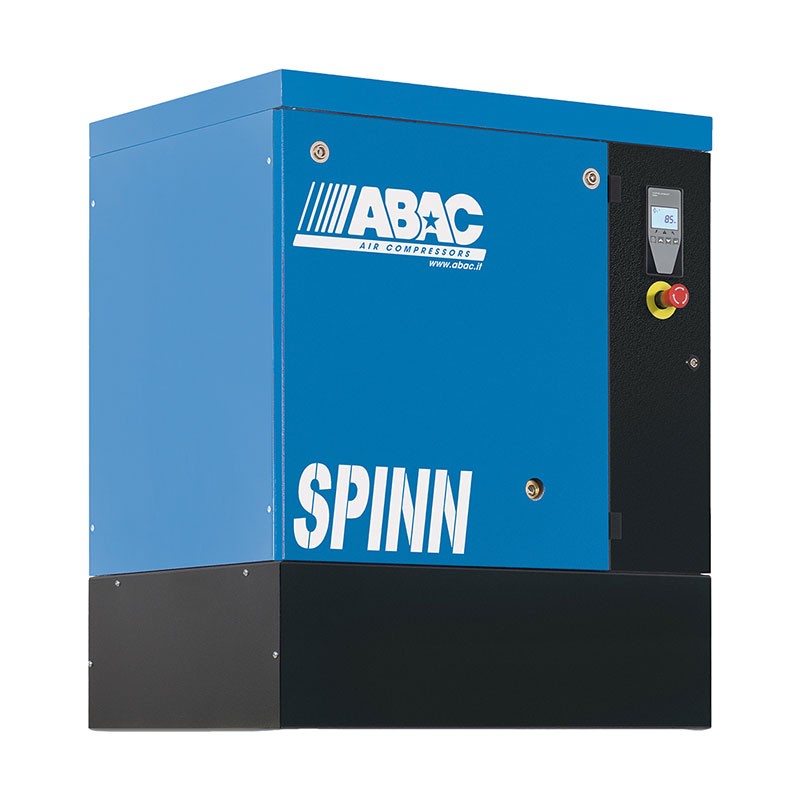

ABAC SPINN 5.5X
5.5 kW Three-Phase Fixed Speed Screw Compressor

ABAC SPINN 5.5X - 5.5 kW - 7.5 HP Three-Phase Fixed Speed Screw Compressor

ABAC SPINN 5.5X is a fixed-speed 5.5 kW screw compressor, designed for continuous compressed air production in professional settings. With a 7.5 HP motor, 400 V three-phase power supply, a maximum pressure of 10 bar, and an air flow rate of 696 l/min, it is suitable for garages, workshops, tire shops, and businesses that require a constant supply of compressed air.

The compact structure and soundproofed casing allow the 5.5 kW professional compressor to be installed near the work area, minimizing space requirements and helping to reduce ambient noise. The noise level of 64 dB(A) and the Infologic® Basic digital controller complete a configuration designed for daily and intensive use.

Also available in an 8 bar version upon request.

Technical Specifications

The compression unit is driven by a 5.5 kW - 7.5 HP electric motor, with a 400 V - 50 Hz three-phase power supply. The model is fixed speed and uses a star-delta starting system, a solution suitable for continuous professional use. The configuration is base-mounted without a tank.

The 5.5 kW screw compressor reaches a maximum operating pressure of 10 bar and a flow rate of 696 l/min, equivalent to 41.8 m³/h. The noise level is contained at 64 dB(A). The model uses oil-lubricated screw technology and is designed for continuous operation.

Functional Specifications

Continuous operation for professional applications

The screw technology allows for a continuous flow of compressed air, making the ABAC SPINN 5.5X suitable for activities where the compressor needs to work for extended periods. It is an ideal solution for workshops, tire shops, professional garages, and other applications with a regular need for compressed air, where a standard piston compressor may be less suitable for continuous work.

Compact installation near the work area

The base configuration and compact footprint facilitate the installation of the compressor within workshops and professional environments where available space needs to be optimized.

Soundproofed casing for a more comfortable working environment

With a declared noise level of 64 dB(A), the SPINN 5.5X features a soundproofed casing, making the ABAC screw compressor particularly attractive for workshops and professional environments where acoustic comfort is an important operational factor.

Digital controller and simplified maintenance

The Infologic® Basic controller allows for the management and monitoring of the compressor's operation through a dedicated digital interface. Component accessibility is designed to facilitate routine checks and maintenance operations, reducing the time required for interventions and simplifying the daily management of the machine.

Also available in versions with a 270 L tank or a 500 L tank.
