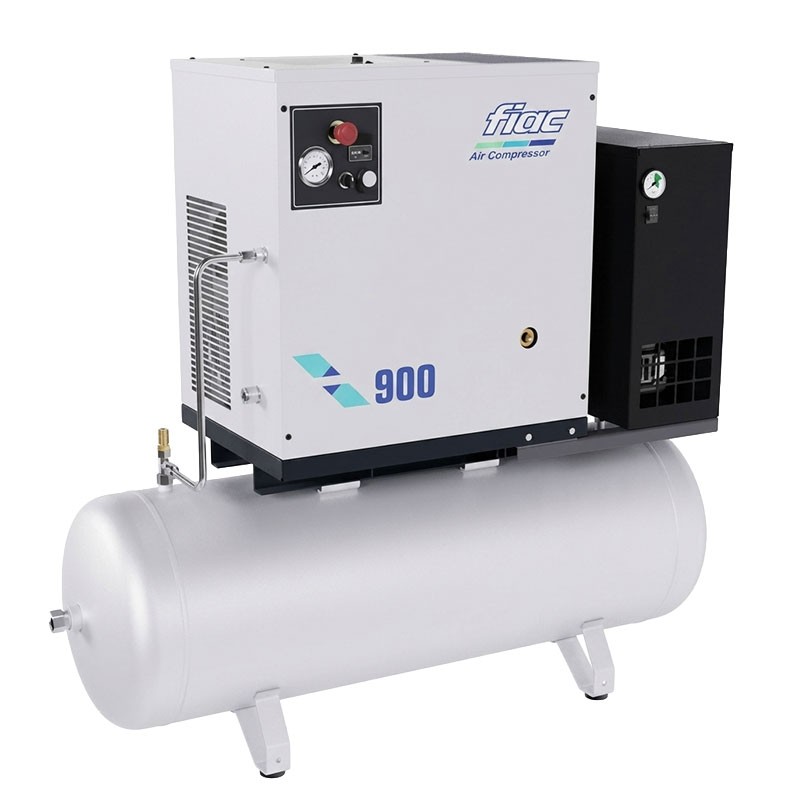

Fiac X 900 500L / X 900 D 500L
10 HP Screw Compressor with Dryer Option

Fiac X 900 500L / Fiac X 900 D 500L - 10 HP Screw Compressor with Dryer Option

FIAC X 900 500L is a 10 HP screw compressor designed for professional installations in workshops, companies, and production environments requiring continuous compressed air production with high energy efficiency. Available in versions with or without an integrated dryer, it combines direct drive with electropneumatic control to ensure reliability, operational continuity, and low management costs.

Equipped with a 10 HP (7.5 kW) motor, a 500-liter tank, and a maximum pressure of 10 bar, this industrial screw compressor is designed to offer quiet operation, reduce maintenance, and optimize energy consumption compared to traditional piston compressors.

FEATURE DETAILS

Technical Specifications

The FIAC X 900 500L screw compressor is equipped with a 10 HP (7.5 kW) electric motor and features a direct drive with electropneumatic control. The rotary screw system is designed to ensure continuous operation, high efficiency, and reliable management in the most demanding professional applications.

The 500-liter tank provides a significant compressed air reserve, while the maximum operating pressure is 10 bar. The declared noise level is 63 dB(A), a particularly low value for this category of machinery.

The compressor is available in both the standard configuration and the version with an integrated dryer.

Functional Specifications

Screw Compressor for Workshops and Professional Plants

This industrial screw compressor has been developed for direct installation in workshops, offering a reduced footprint compared to traditional silenced piston compressors. The compact design allows for a space reduction of up to 30%, facilitating the organization of work areas without compromising the performance of the compressed air system.

Energy Efficiency and Consumption Reduction

The rotary screw technology allows for more efficient operation compared to traditional piston compressors. The 10 HP screw compressor is designed to reduce energy consumption by up to 25%, helping to lower daily operating costs and improve the overall efficiency of the compressed air system.

Increased Durability of Mechanical Components

The soft start system significantly reduces mechanical stress on the main transmission components, limiting stress on bearings and belts by up to 80%. This contributes to increasing the lifespan of components and containing maintenance costs over time. The gradual start also reduces the initial current peak, facilitating installation even in environments with limited electrical power availability.

Available with Dryer for Compressed Air Systems

The FIAC X 900 500L can be chosen in the version with or without an integrated dryer, allowing the system to be configured according to specific production needs. The combination of a 500-liter tank, direct drive, and rotary screw technology makes this range a suitable solution for companies seeking operational continuity, high efficiency, and competitive ownership costs.

Features

• 500 L Tank
• Maximum Pressure 10 bar
• 10 HP 7.5 kW Motor
• Noise Level 63 dB(A)
• Available with dryer
• 30% space reduction compared to silenced piston models
• Low-maintenance design
• Optimized energy consumption
• 25% energy saving compared to silenced piston models
