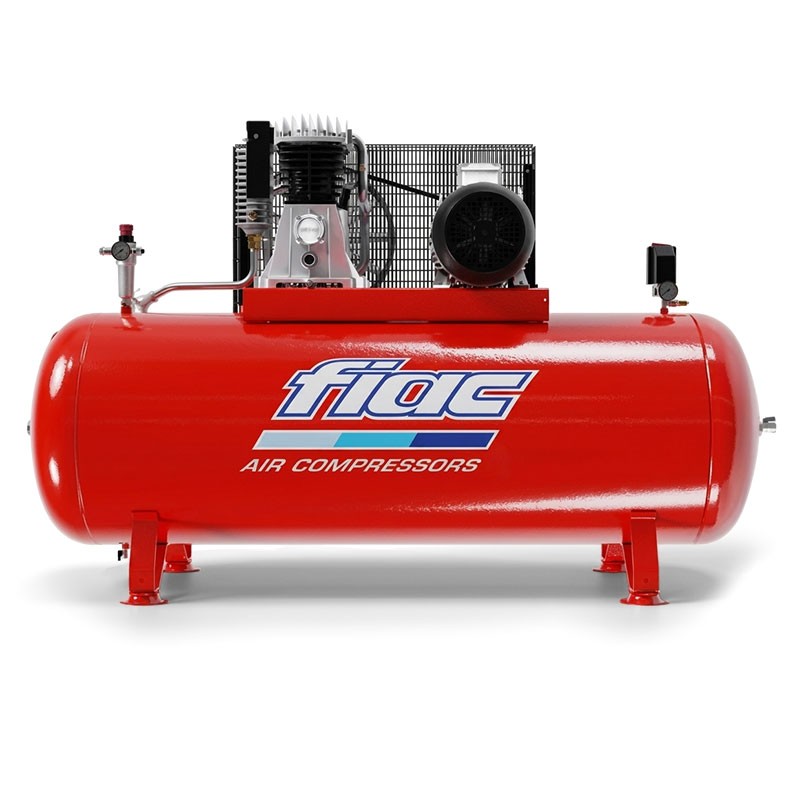

Fiac AB 500/825 TF 7.5
Air Compressor 400V Two-Stage 7.5 HP 11 Bar

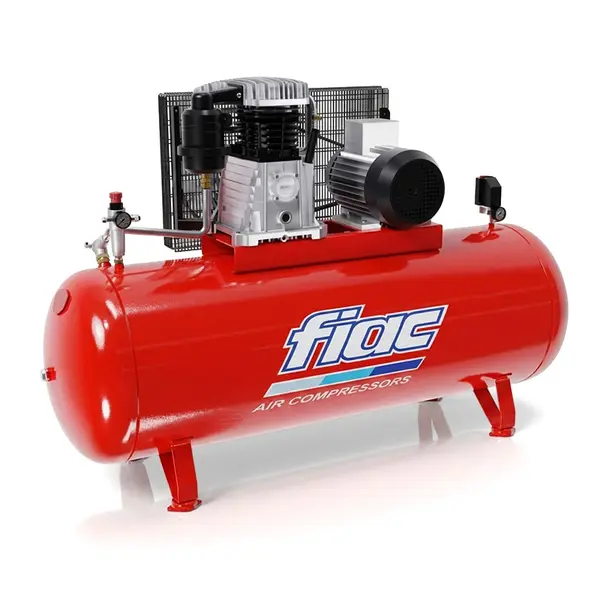

Fiac AB 500/825 TF 7.5 - Air Compressor 400V Two-Stage 7.5 HP 11 Bar

FIAC AB 500/825 TF 7.5 is a professional oil-lubricated two-stage piston Air Compressor, 400V Three-Phase, designed for intensive applications in workshops, companies, artisan activities, and professional settings where reliability and operational continuity are required. With a 7.5 HP (5.5 kW) motor, 500 L tank, and maximum pressure of 11 bar, it is suitable for powering numerous pneumatic tools and compressed air equipment.

The AB 825 pump unit with a cast iron double cylinder operates at a low rotation speed, a solution designed to limit overheating of the pump unit and motor, promoting longer lifespan. The large flywheel aids cooling during operation, while the metal belt guard ensures more robust protection even during handling and transport. The configuration is designed for those seeking a professional 500-liter compressor for frequent and heavy-duty use.

FEATURE DETAILS

Technical Specifications

The 7.5 HP two-stage compressor is equipped with a 7.5 HP (5.5 kW) three-phase motor and the AB 825 cast iron double-cylinder pump unit, operating oil-lubricated. The transmission is designed to work at a rotation speed of 1326 RPM, helping to contain component heating and preserve system reliability over time.

The tank has a capacity of 500 L, while the maximum pressure is 11 bar. Air flow rate is 827 L/min and noise level is 77 dB(A). The fixed and robust structure is designed for professional installations and applications requiring an adequate air reserve to support frequent and intensive use.

Functional Specifications

Cast Iron Two-Stage Pump Unit for Intensive Use

The AB 825 pump unit uses a cast iron double-cylinder system designed to offer robustness and reliability in professional applications. The two-stage configuration allows for the necessary pressure to power various pneumatic tools, while the low rotation speed of 1326 RPM helps reduce overheating during operation.

500 Liter Tank for Increased Air Reserve

The 500 L tank provides a significant reserve of compressed air. The storage capacity allows for a substantial amount of available air and more effective management of system demands.

Large Flywheel to Aid Cooling

The pump unit is equipped with a large flywheel designed to aid cooling during operation. This solution contributes to managing the temperature of the pump unit, a particularly important aspect when the professional piston compressor is subjected to frequent work cycles.

Features

• 500-liter tank
• 7.5 HP / 5.5 kW three-phase motor
• 11 bar maximum pressure
• 827 L/min air flow rate
• AB 825 pump unit
• low rotation speed of 1326 RPM
• 77 dB(A) noise level
• oil-lubricated
• two-stage and equipped with cast iron double cylinder
• large flywheel for cooling
• oil level indicator and metal belt guard
