Fiac AB 300/590 TC 5.5
Two-Stage Piston Air Compressor 5.5 HP 11 Bar

Fiac AB 300/590 TC 5.5 - Two-Stage Piston Air Compressor 5.5 HP 11 Bar

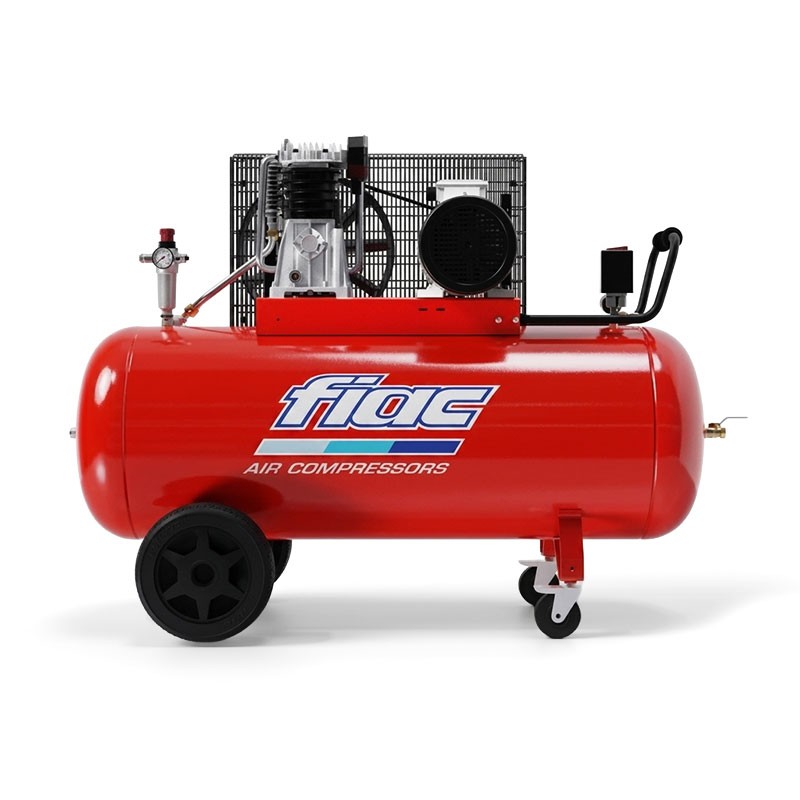

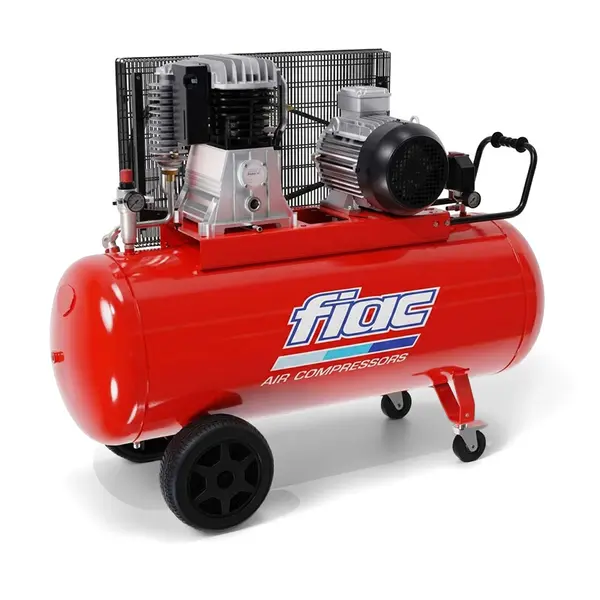

FIAC AB 300/590 TC 5.5 is a professional 5.5 HP piston compressor, oil-lubricated and designed for intensive applications in industrial, professional, and maintenance sectors. The two-stage configuration with the AB 590 pump unit, cast iron twin cylinders, and a 270-liter tank offers a combination suitable for uses requiring robustness, operational continuity, and compressed air availability.

The 5.5 HP (4 kW) motor, 11 bar maximum pressure, and 582 L/min air flow rate make this professional compressor a suitable solution for workshops and work environments where the compressor is subjected to frequent and prolonged cycles. The low rotation speed of the pump unit helps to limit overheating of the pump and motor, promoting longer service life.

FEATURE DETAILS

Technical Specifications

The 5.5 HP piston compressor is equipped with a 5.5 HP - 4 kW motor and a two-stage AB 590 pump unit with cast iron twin cylinders. The unit operates at a rotation speed of 1371 rpm with belt drive. The product is indicated as a wheeled version, and the provided designation also includes the three-phase 3 Ph power supply.

The tank has a capacity of 270 liters, while the maximum pressure reaches 11 bar and the air flow rate is 582 L/min. The noise level is 77 dB(A). The low rotation speed configuration is designed to limit overheating during operation, while the large flywheel contributes to cooling the pump unit.

Functional Specifications

Two-Stage Pump Unit for Intensive Professional Use

The two-stage configuration allows working with a maximum pressure of 11 bar and is part of a structure designed for frequent and intensive use. The cast iron twin cylinders of the AB 590 pump unit ensure robust construction, suitable for the needs of workshops, maintenance professionals, and professional entities.

Low Rotation Speed and Overheating Management

The pump unit operates at 1371 RPM, a moderate speed that helps limit overheating of the pump and motor during use. This feature is particularly advantageous in professional environments where the compressor is used with high frequency and where reliability and component durability are important aspects in the daily operation of the machine.

Optimized Pump Unit Cooling

The large flywheel promotes cooling of the pump unit, contributing to proper thermal management during operation. The large oil level indicator also allows for easier monitoring of the unit's lubrication, facilitating routine checks and maintenance operations.

Features

• AB 590 Pump Unit - 1371 RPM
• Cast iron twin cylinders
• 5.5 HP - 4 kW Motor
• Belt drive
• 270 Liter Tank
• Air Flow Rate 582 L/min
• Maximum Pressure 11 bar
• Noise Level 77 dB(A)
• Wheeled Configuration
• Metal Belt Guard
