Fiac AB 300/825 TC 7.5
7.5 HP Wheeled Air Compressor 11 Bar
MPN: 1839035111
EAN: 8024900754797
400V - 7.5 HP
11 bar - 827 L/min
270 L Tank
Warranty 2 years
Shipped on Pallet

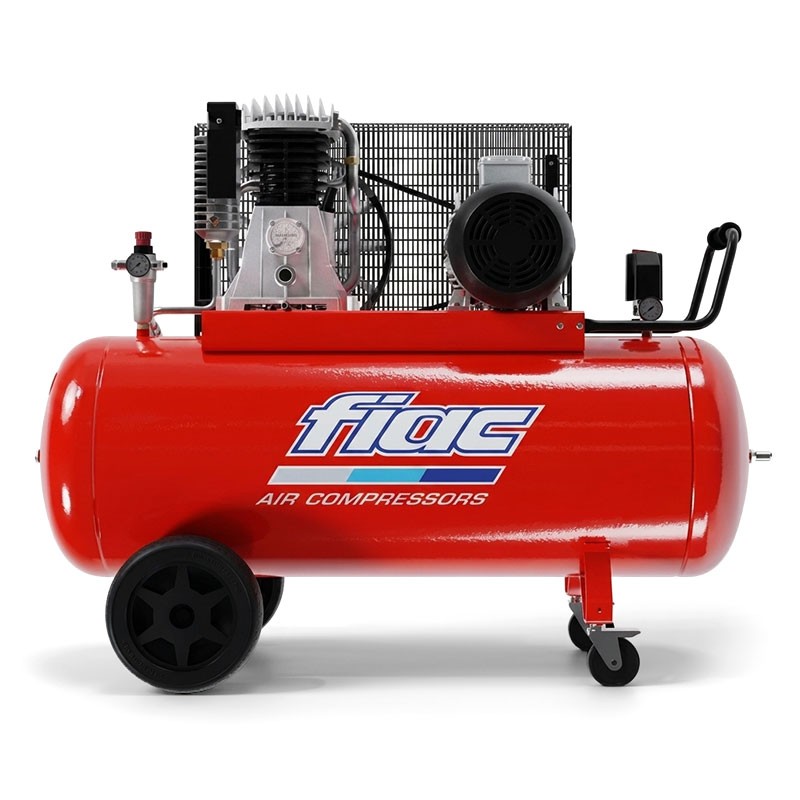

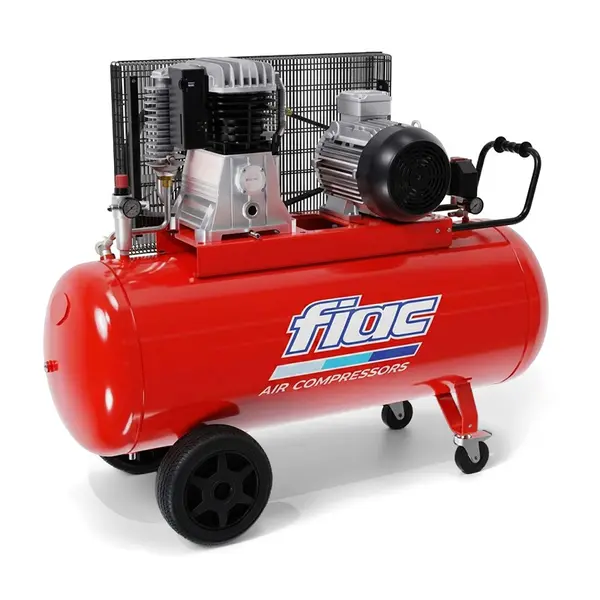

Fiac AB 300/825 TC 7.5 - 7.5 HP Wheeled Air Compressor 11 Bar
Fiac AB 300/825 TC 7.5 is a professional wheeled compressor with 7.5 HP, designed for intensive applications in industrial, artisanal, and professional settings. The configuration with a 270-liter tank, maximum pressure of 11 bar, and air flow rate of 827 L/min makes it suitable for uses requiring a constant supply of compressed air and a robust structure for frequent use.
The AB 825 pump unit is oil-lubricated, two-stage, and equipped with two cast iron cylinders. The low rotation speed, at 1326 RPM, helps limit overheating of the pump unit and motor, promoting longer operational life. The large flywheel improves cooling, while the metal belt guard offers more effective protection during use and transport operations.
FEATURE DETAILS
| Model | AB 300/825 TC 7.5 |
| Power | 7.5 HP - 5.5 kW |
| Revolutions per Minute | 1326 RPM |
| Flow Rate | 827 L/min |
| Connection | Three-phase 400 V |
| Tank | 270 L |
| Pump Unit | AB 825 |
Technical Specifications
The Fiac AB 300/825 TC 7.5 is equipped with a 7.5 HP - 5.5 kW motor, with three-phase power supply (3Ph) and belt drive. The AB 825 pump unit is two-stage, two-cylinder, and oil-lubricated, with a rotation speed of 1326 RPM. The two cast iron cylinders are designed to ensure robustness and reliability under the most demanding working conditions.
The compressor features a 270-liter tank and reaches a maximum pressure of 11 bar, with a declared air flow rate of 827 L/min. The tank capacity provides a good reserve of compressed air, while the wheeled structure facilitates the movement of the unit in work environments.
Functional Specifications
Two-stage twin-cylinder pump unit for intensive use
The two-stage AB 825 pump unit is designed to offer reliable performance in professional applications characterized by frequent use. The two cast iron cylinders ensure a durable structure suitable for demanding working conditions, making the compressor ideal for workshops, businesses, maintenance professionals, and activities that require a continuous supply of compressed air.
Low rotation speed for longer operational life
The rotation speed of 1326 RPM helps to limit overheating of the pump unit and motor during operation. This feature allows for more effective temperature management and helps preserve the reliability and lifespan of the main components over time.
Optimized cooling of the pump unit
The large flywheel aids in cooling the pump unit during operation, contributing to the machine's proper thermal management. The large oil level indicator also allows for quicker checking of the oil level, facilitating the necessary checks for proper compressor maintenance.
Robust wheeled structure and metal transmission guard
The wheeled configuration facilitates the movement of the compressor within the workshop or work area, while the robust structure is designed to withstand frequent professional use. The metal belt guard protects the belt drive and offers greater resistance even during transport operations, contributing to the safety and protection of the mechanical components.
Features
- Three-phase 400V compressor
- Two-stage 2-cylinder motor
- 270 L Tank
- Air Flow Rate 827 L/min
- 7.5 HP - 5.5 kW Motor
- AB 825 Pump Unit - 1326 RPM
- 11 bar Pressure
- Noise Level 77 dB(A)
Technical Data
| Power | 7.5 HP |
| Absorbed Power | 5.5 kW |
| Cylinders | 2 - Two-stage |
| Motor RPM | 1326 RPM |
| Flow Rate | 827 L/min |
| Pressure | 11 bar |
| Tank | 270 L |
| Pump Unit | AB 825 |
| Noise Level at 7 meters | 77 dB(A) |
| Configuration | Wheeled |
| Dimensions | 145.8 x 50 x 105.8 cm |
| Weight | 191 kg |
