Abac EXP A49B 270V FM3
230V Belt-Driven Vertical Compressor

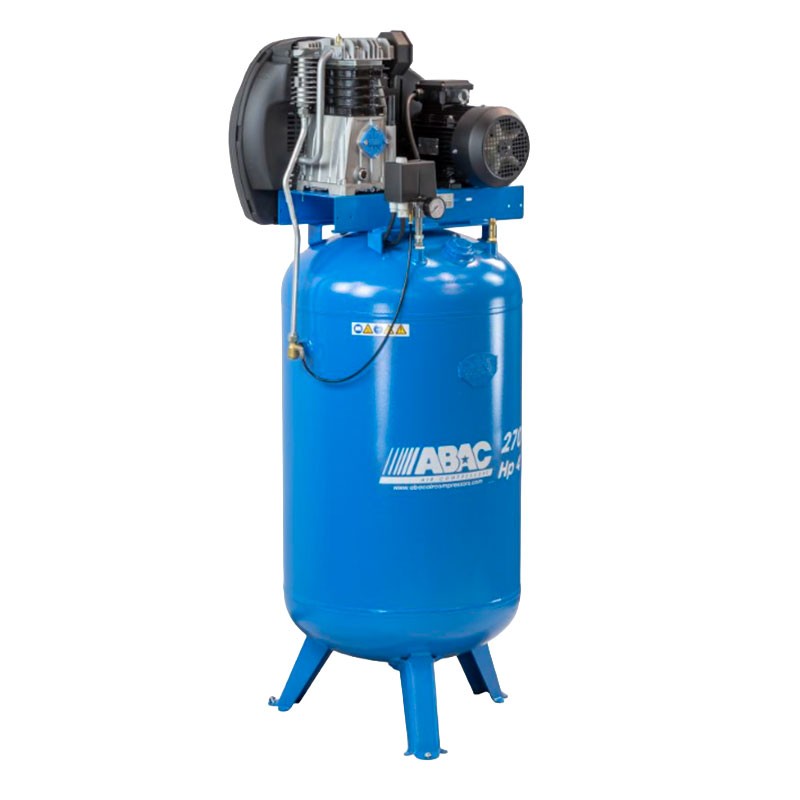

Abac EXP A49B 270V FM3 - 230V Vertical Piston Compressor 270 L

The Abac EXP A49B 270V FM3 compressor is a two-stage piston model designed for professional and industrial use . Thanks to the belt drive and robust construction , it offers high performance, reliability and efficient operation even during the most intensive use.

The dual-stage compression technology allows for high pressures while reducing engine load, resulting in improved fuel economy and longevity. The vertical configuration also optimizes workspace, while the dual outlet with filter ensures clean, high-quality compressed air , ideal for powering pneumatic tools and equipment.

Catalog image

Technical specifications

• Two-stage pumping group
• Compact size
• High efficiency
• Less wear thanks to better cooling
• Maximum pressure 11 bar
• Innovative belt guard design for improved cooling airflow
• 270 L tank
• Induction motor
• Low rotation speed to guarantee a low operating temperature
• Belt drive
• Transmission pulley with ventilation fins
• Ball purge valve
• Three feet for maximum stability

Pumping Group

ABAC A49B pump units are the result of advanced technology and are unique in terms of reliability, durability, low operating temperatures, and efficiency. They use innovative materials with a low friction coefficient and high wear resistance:

• oversized oil sumps
• cast iron cylinders for longer life
• die-cast aluminum heads for better heat dissipation
• high-strength stainless steel reed valves
• aluminum final cooler with fins

Applications

• Chiselling
• Sanding/rotororbital
• Screwing
• Drilling
• Sandblasting
