Abac VCF3/100 CM3
3 HP Cast Iron Cylinder Compressor
MPN: 4116021387
230V - 3 HP
9 bar - 350 L/min
Serbatoio 100 L
€998.00
€818.03 tax excl.
Warranty 2 years
Shipped on Pallet

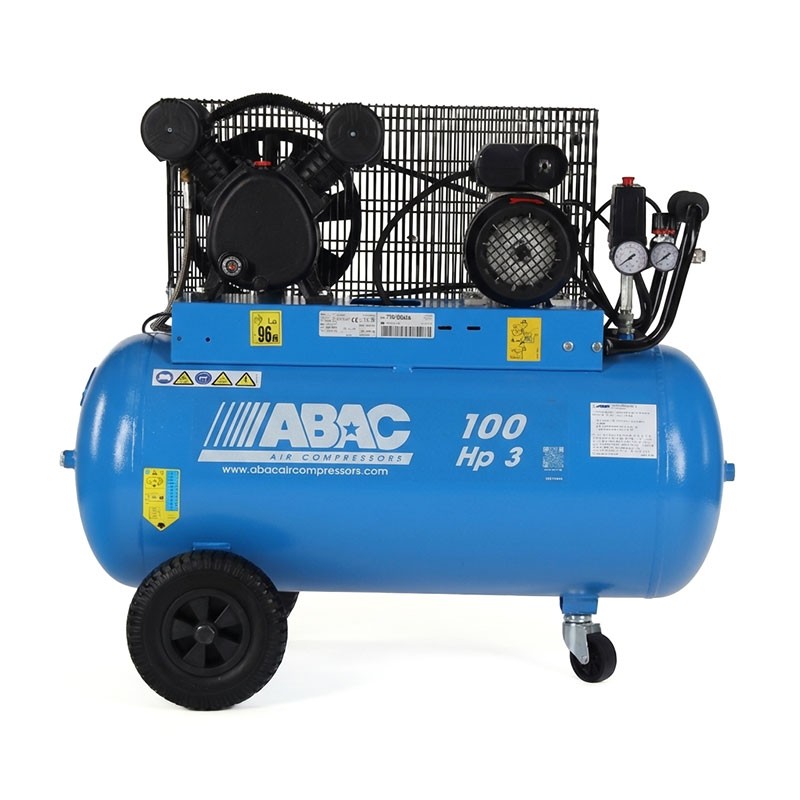

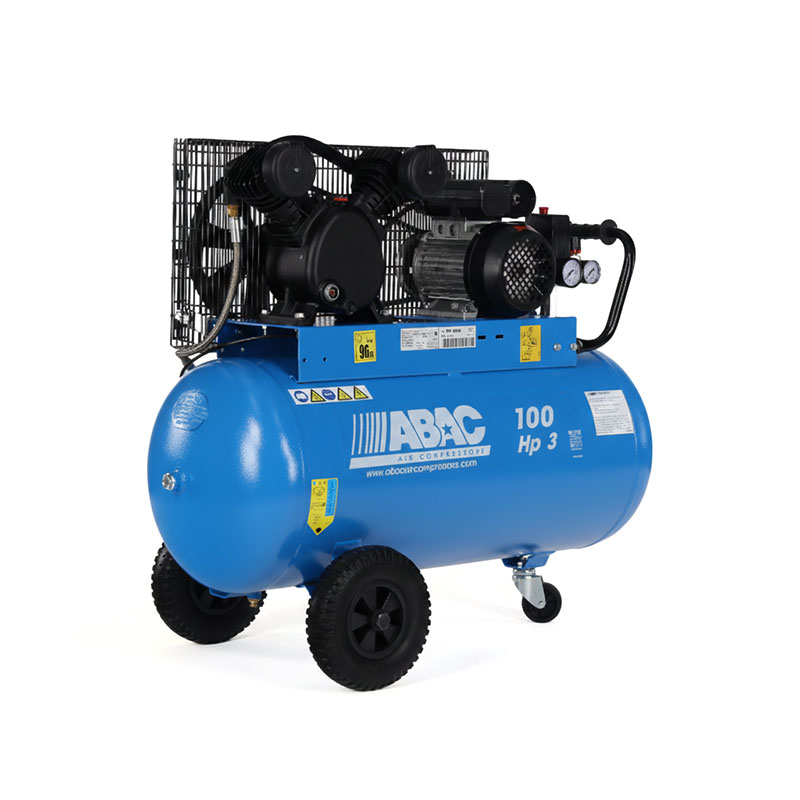

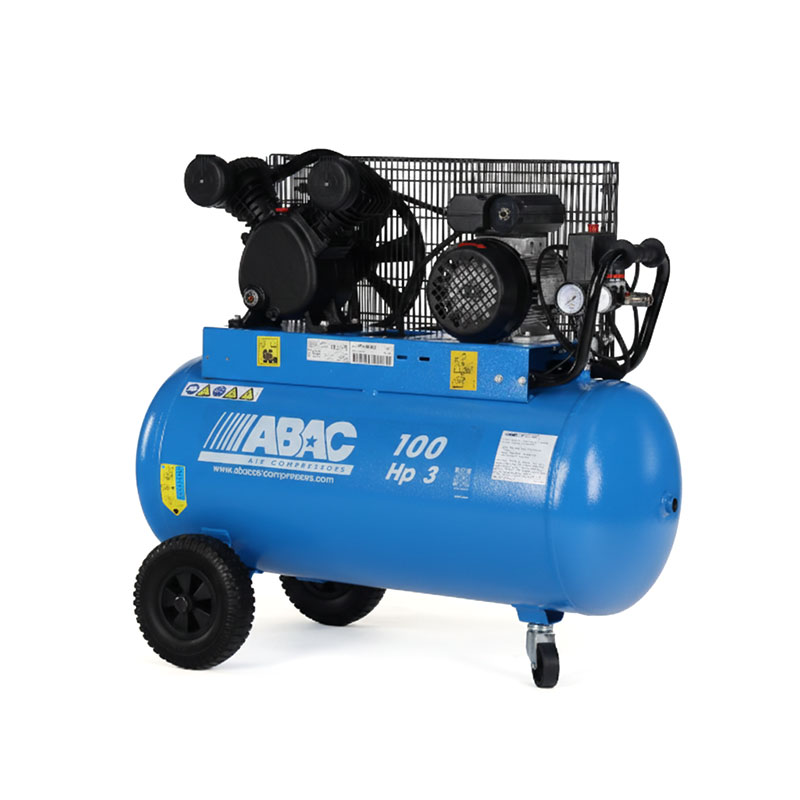

Abac VCF3/100 CM3 - 3 HP Single-Phase Piston Compressor with V-Twin Engine
The Abac VCF3/100 CM3 is a professional single-phase piston compressor with a 100L tank and CAST IRON CYLINDERS designed for light industrial and professional applications requiring operational continuity, reliability and consistent performance. This 1-stage belt-driven compressor , equipped with a cast iron V-twin engine , is designed for mechanical workshops, body shops, artisan workshops and production environments.
Thanks to oil lubrication , optimized cooling technology, and cast iron cylinders , the Abac VCF3/100 CM3 compressor ensures reliable airflow even under harsh working conditions, maintaining stable performance over time. Its maximum pressure of 9 bar makes it ideal for use with professional pneumatic tools.
Image from Catalog
Technical Specifications
The Abac VCF3/100 CM3 professional single-phase compressor has a single-phase 230 V – 50 Hz power supply , a feature that allows it to be installed even in domestic environments. The 3 HP (2.2 kW) motor ensures high electrical and mechanical reliability, reducing the risk of overload.
This oil-lubricated piston compressor has a maximum air flow rate of 350 L/min , with a pump speed of 1170 rpm which helps reduce mechanical wear and improve the life of the pump unit. Noise level of 96 dB(A).
Functional specifications
Twin-cylinder cast iron pump unit
The cast iron V-twin motor is a key element of the Abac reciprocating compressor, ensuring structural strength, thermal stability, and long operating life. Cast iron provides better wear resistance than lighter materials, a key feature for an oil-lubricated industrial compressor.
Optimized cooling system for intensive use
Optimized cooling technology allows the Abac VCF3/100 CM3 professional compressor to maintain constant airflow even in harsh environments and at high temperatures. This reduces the risk of overheating and contributes to continuous production.
Characteristics
- Single-phase compressor
- 100 L horizontal tank
- Power 3 HP - 2.2 kW
- Pressure 9 bar
- Rotation speed 1170 RPM
- Easy to carry
Technical Data
| Power Supply | 230V |
| Engine Power | 3 HP - 2.2 kW |
| Engine RPM | 1170 RPM |
| Reservoir | 100 L |
| Noise | 96 dB |
| Air Flow | 350 L/min |
| Max Pressure | 9 Bar |
| Size | 101.5 x 42.5 x 89.5h cm |
| Weight | 63.9 kg |
Technical Data
| Power Supply | 230V |
| Engine Power | 3 HP - 2.2 kW |
| Engine RPM | 1170 RPM |
| Reservoir | 100 L |
| Noise | 96 dB |
| Air Flow | 350 L/min |
| Max Pressure | 9 Bar |
| Size | 101.5 x 42.5 x 89.5h cm |
| Weight | 63.9 kg |
