Abac VCF3/100 CM3
Super Professional Air Compressor 3 HP 100 Liters
MPN: 4116021387
230V - 3 HP
9 bar - 350 L/min
100 L Tank
€998.00
- €50.00
€948.00
€777.05 tax excl.
Warranty 2
years
Shipped on Pallet

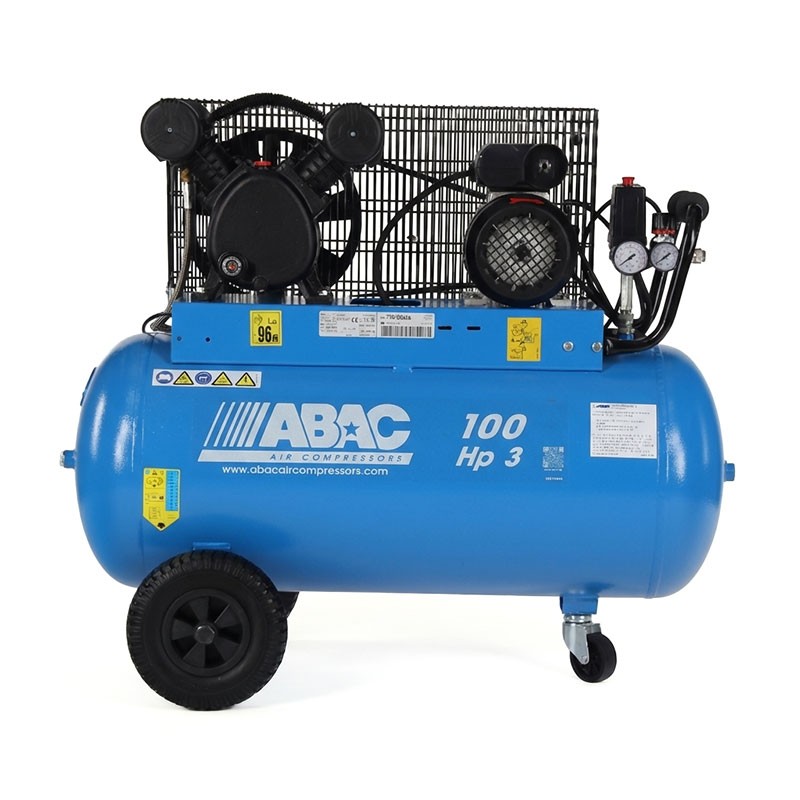

Abac VCF3/100 CM3 - 3 HP Single-Phase Piston Compressor with V-Twin Cylinder Engine
Abac VCF3/100 CM3 is a professional single-phase piston compressor with a 100L tank and CAST IRON CYLINDERS designed for light industrial and professional applications requiring operational continuity, reliability, and consistent performance. This 1-stage belt-driven compressor, equipped with a cast iron V-twin engine, is intended for mechanical workshops, body shops, artisan laboratories, and production environments.
Thanks to oil lubrication and optimized cooling technology and cast iron cylinders, the Abac VCF3/100 CM3 compressor ensures a reliable airflow even under demanding working conditions, maintaining stable performance over time. The maximum pressure of 9 bar makes it ideal for use with professional pneumatic tools.
Catalog Image
Technical Specifications
The Abac VCF3/100 CM3 professional single-phase compressor has single-phase power supply 230 V – 50 Hz, a feature that allows it to be installed even in domestic environments. The 3 HP (2.2 kW) engine ensures high electrical and mechanical reliability, reducing the risk of overload.
This oil-lubricated piston compressor has a maximum air displacement of 350 L/min, with a pump speed of 1170 rpm which helps reduce mechanical wear and improve the lifespan of the pump unit. Noise level of 96 dB(A).
Functional Specifications
Cast Iron Twin-Cylinder Pump Unit
The cast iron V-twin engine is a key component of the Abac piston compressor, ensuring structural robustness, thermal stability, and long operational life. Cast iron ensures better wear resistance compared to lighter materials, a fundamental characteristic for an oil-lubricated industrial compressor.
Optimized Cooling System for Intensive Use
The optimized cooling technology allows the Abac VCF3/100 CM3 professional compressor to maintain a constant airflow even in difficult environments and at high temperatures. This aspect reduces the risk of overheating and contributes to production continuity.
Features
- Single-phase compressor
- Horizontal 100 L tank
- Power 3 HP - 2.2 kW
- Pressure 9 bar
- Rotation speed 1170 RPM
- Easy to transport
Technical Data
| Power Supply | 230V |
| Motor Power | 3 HP - 2.2 kW |
| Motor Speed | 1170 RPM |
| Tank | 100 L |
| Noise Level | 96 dB |
| Air Flow Rate | 350 L/min |
| Max Pressure | 9 Bar |
| Dimensions | 101.5 x 42.5 x 89.5h cm |
| Weight | 63.9 kg |
