Abac Tech Pro ATF-S 4 5+5 10
Continuous Cycle Compressor
4 HP OIL LESS

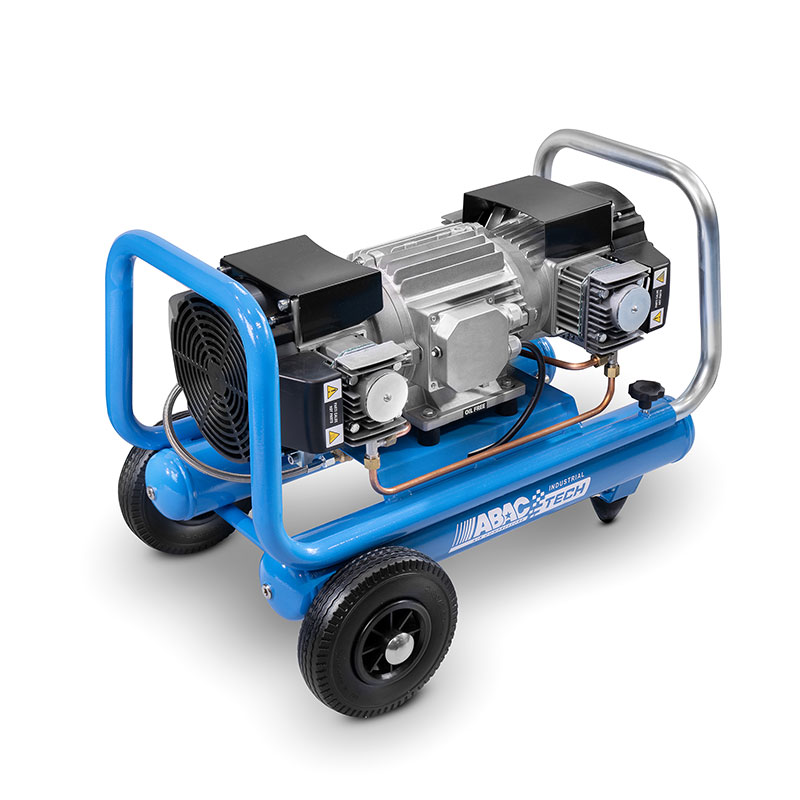

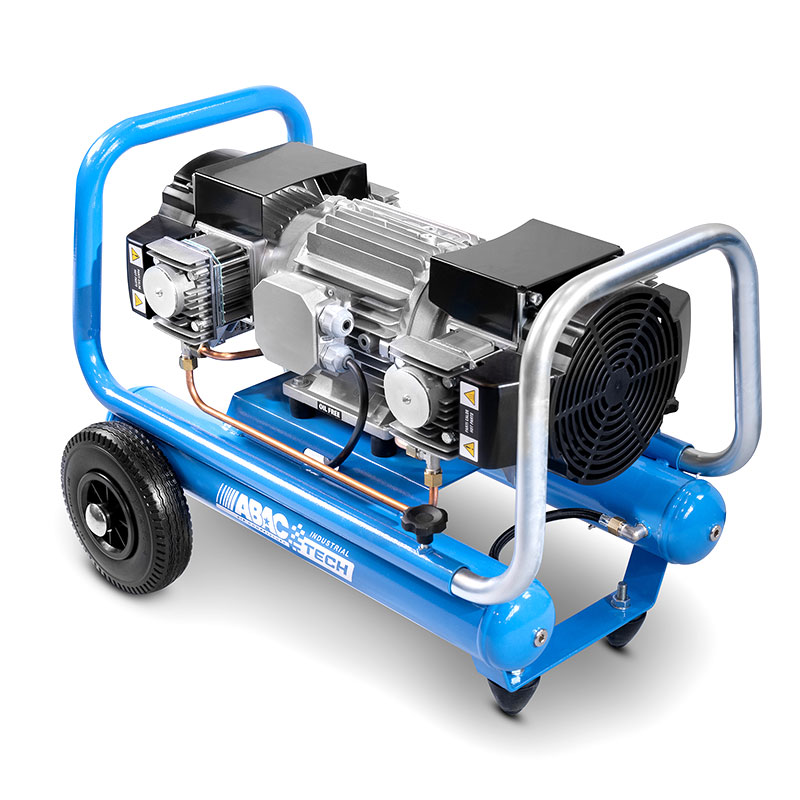

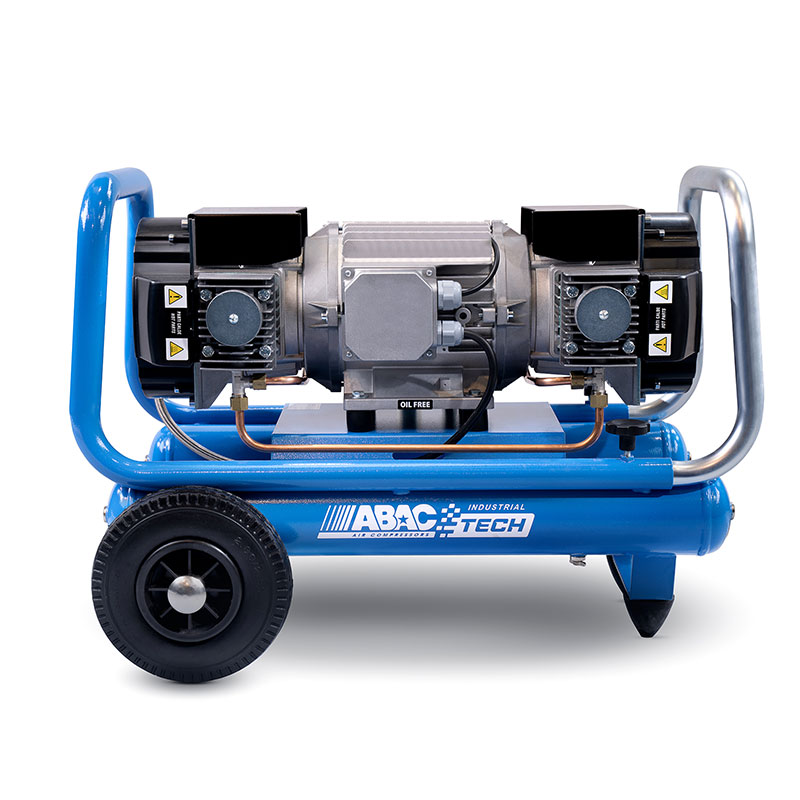

Abac Tech Pro ATF-S 4 5+5 10 - Continuous Cycle Air Compressor 10 bar 4 HP with 5+5 L Tank

100% Duty Cycle

The Abac Tech PRO ATF-S 4 HP professional compressor , with a maximum pressure of 10 bar and a double 5+5 litre tank , is designed to offer high performance in a compact format. Its compact design makes it perfect for a variety of applications, even in limited spaces.
Thanks to its oil-free technology , the ATF-S model ensures completely clean air, ideal for use in environments where it is essential to avoid any risk of contamination. Furthermore, extremely quiet operation and minimal vibrations ensure superior operating comfort.

Designed for continuous and intensive use, the Abac Tech PRO ATF-S 4 5+5 10 230/1/50 compressor is capable of operating in a continuous cycle (100%) , supplying air without interruption. This feature increases its reliability and longevity, minimizing machine downtime and eliminating the need for cooling breaks.

Technical Specifications

ABAC Tech ATF-S, thanks to its oil-free nature, requires less maintenance and allows for versatile use. Furthermore, this model offers market-leading reliability and performance. This professional 10 bar compressor is equipped with double, non-lubricated pistons obtained from a single die casting that slide along the single axis of the aluminum cylinder , which is ceramic-coated, reducing wear and increasing durability.

With 4 HP (3 kW) power, this professional air compressor has two 5 L tanks for a total air capacity of 10 L. Its air flow rate is 260 L/min with an engine rotation speed of 1400 RPM .

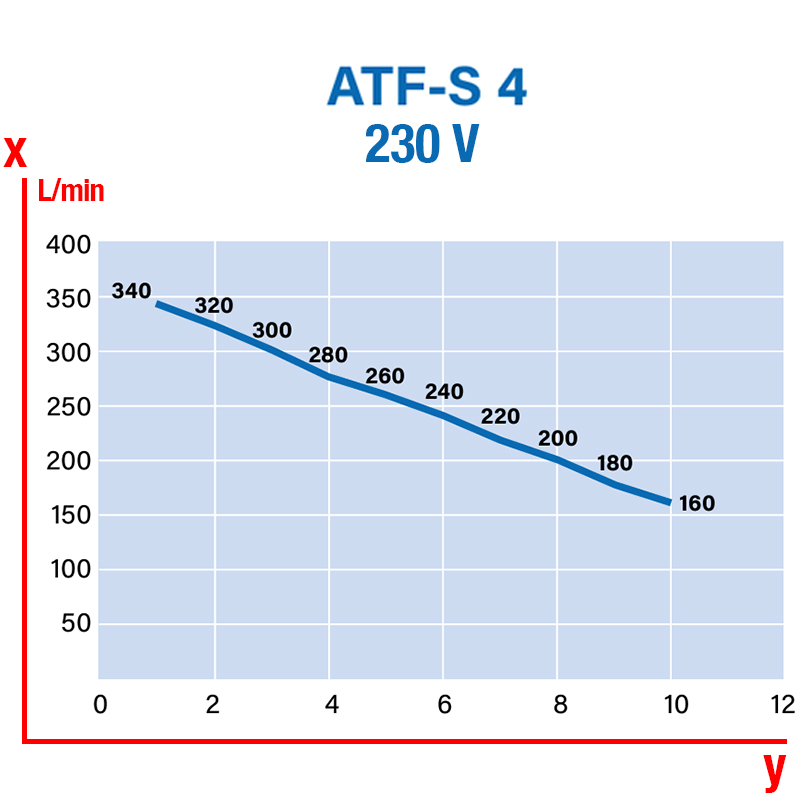

Air Delivery ATF-S 4 models

The diagram shows the data relating to the air volume delivered in L/min (X axis) and the pressure (Y axis).

Functional specifications

Continuous operation

Abac Tech is a range of pumping units and compressors designed to optimise compressor operating times , limiting downtime.

In particular, Abac Tech compressors operate in a continuous cycle , where continuous cycle refers to the time interval in which the compressor delivers pressurized air in relation to the total operating cycle.

Abac Tech Pro continuous cycle compressors constantly power machinery and tools without downtime and are reliable allies of production companies, managing to optimise working time/maintenance costs .

For example, while a continuous cycle compressor continues to work, a compressor operating at 50% requires the same number of minutes of downtime for every 30 minutes of operation.

Oil-Free

The absence of oil eliminates the risk of contamination and the minimal need for maintenance reduces the cost of consumables and the compressor can be easily moved wherever it is needed.

Compact design and mobility

Continuous operation eliminates the need for large air reserves, making the compressor lighter and more compact. ABAC Tech PRO is easy to move and can be used wherever needed, without getting in the way.

Maximum Silence

Thanks to low noise levels of 68–72 dB, the compressor contributes to the creation of a superior operating environment, protecting the acoustic health of users and allowing installation close to the point of use, resulting in a reduction in the need for air distribution lines.

Duty Cycle 100%

The following diagram shows the data relating to the compression temperature (X-axis) and the operating temperature (Y-axis), setting the maximum design temperature as the limit value.

Areas of Application

• Professional and industrial construction
• Industrial production
• Professional and industrial agriculture
• Professional and industrial railway
• Professional and industrial automotive sector
• Industrial dry cleaning
• Professional carpentry
• Professional and industrial pressure washing
• Industrial pharmaceuticals
• Industrial energy exploration
• CAD/CAM for the medical segment
• Professional and industrial sandblasting

Characteristics

• Non-lubricated pumping group
• Single-phase 230V
• 100% duty cycle
• Pressure up to 10 bar
• RPM 1400
• Robust and durable design
• Premium performance
