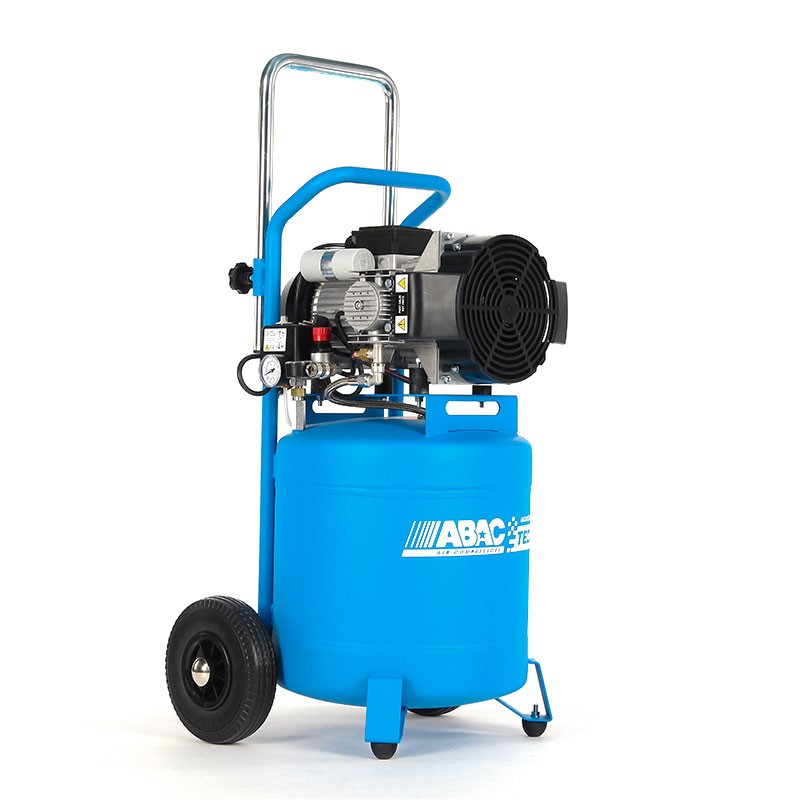

Abac Tech Pro ATF-S 3 50 10
Continuous Cycle Compressor
3 HP 50 L Tank

Abac Tech Pro ATF-S 3 50 10 - Continuous Cycle Air Compressor 10 bar 3 HP with 50 L Tank

100% Duty Cycle

The Abac Tech PRO series professional compressor, model ATF-S, 10 bar, single-phase , 3 HP , with a 50 L tank . Thanks to its compact size, it can be used in a wide range of applications. With low vibration and extreme silence, the Abac Tech ATF-S series compressors are oil-free , meaning they are not lubricated, specifically for use in sensitive environments where it is essential to avoid air contamination.

Designed for continuous operation , the Abac Tech PRO ATF-S 3 50 10 230/1/50 is ideal even in extreme conditions. With a 100% duty cycle , it provides continuous air, ensuring reliability and a long life for equipment, minimizing downtime since it does not require machine cooling.

Technical Specifications

ABAC Tech ATF-S, thanks to its oil-free design, requires less maintenance and allows for versatile use. Furthermore, this model offers market-leading reliability and performance.

This professional 10 bar compressor is equipped with double non-lubricated pistons obtained from a single die casting that slide along the single axis of the aluminium cylinder , which is coated in ceramic, reducing wear and increasing durability.

Air Delivery ATF-S 3 models

The diagram shows the data relating to the air volume delivered in L/min (X axis) and the pressure (Y axis).

Functional specifications

Continuous operation

Abac Tech is a range of pumping units and compressors designed to optimise compressor operating times , limiting downtime.

In particular, Abac Tech compressors operate in a continuous cycle , where continuous cycle refers to the time interval in which the compressor delivers pressurized air in relation to the total operating cycle.

Abac Tech Pro continuous cycle compressors constantly power machinery and tools without downtime and are reliable allies of production companies, managing to optimise working time/maintenance costs .

For example, while a continuous cycle compressor continues to work, a compressor operating at 50% requires the same number of minutes of downtime for every 30 minutes of operation.

Duty Cycle 100%

The following diagram shows the data relating to the compression temperature (X-axis) and the operating temperature (Y-axis), setting the maximum design temperature as the limit value.

Areas of Application

• Professional and industrial construction
• Industrial production
• Professional and industrial agriculture
• Professional and industrial railway
• Professional and industrial automotive sector
• Industrial dry cleaning
• Professional carpentry
• Professional and industrial pressure washing
• Industrial pharmaceuticals
• Industrial energy exploration
• CAD/CAM for the medical segment
• Professional and industrial sandblasting

Characteristics

• Non-lubricated pumping group
• Single-phase 230V
• 100% duty cycle
• Pressure up to 10 bar
• RPM 1400
• Robust and durable design
• Premium performance
