Airmec TEB 22/620 NB4
Motocompressore 7 HP
Motore Loncin G210F

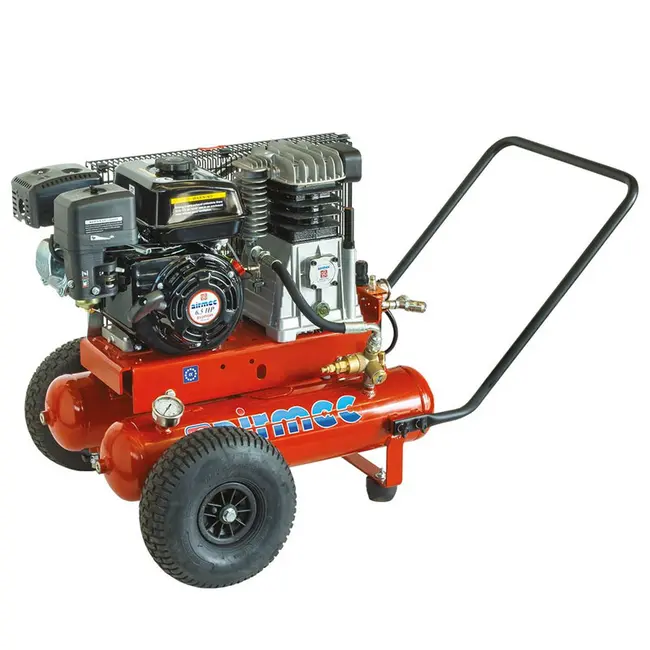

Airmec TEB 22/620 - Motor Compressor with 7 HP Loncin G210F Engine

Airmec TEB 22/620 is a petrol compressor specifically designed for professional use . Equipped with a 7 HP 4-stroke Loncin G210F engine, this petrol compressor has two 11 + 11 L tanks, providing a double advantage: capacity and compactness.

Airmec TEB 22/620 has an air flow rate of 620 L/min with a working pressure of 11 bar . Thanks to the foldable handle and the lightweight structure equipped with pneumatic wheels, this compressor is very handy and easy to transport.

Technical Specifications

The Airmec TEB 22/620 4-stroke petrol compressor is the ideal solution for those who need a powerful compressed air source that is independent of the electricity grid. The internal combustion engine with recoil starter and self-winding cord ensures rapid and reliable ignition even in demanding work environments. Designed to offer maximum practicality, it is equipped with a folding handle that makes it extremely compact and easy to transport.

The sturdy and easy-to-handle frame , combined with pneumatic wheels, allows the compressor to be moved easily even on rough terrain. The presence of a single-stage twin-cylinder head guarantees excellent air production capacity, while the automatic venting and vacuum valve keeps the pressure in the tank constant, improving work efficiency. The equipment is completed by the filter-reducer-lubricator , the glycerine pressure gauge for precise reading and the universal quick-release taps , which make connecting tools simple and immediate. A sturdy, efficient machine that is perfect for use on construction sites or in mobile workshops.

Functional specifications

Double Tank 11 + 11 L

Airmec TEB 22/620 has two 11-liter tanks, optimizing their size and capacity. This configuration allows for a greater air reserve while maintaining compact dimensions and also offers greater air cooling, making the separation of condensation from the air that feeds the equipment more efficient.

Loncin G210F Engine

The Loncin engine that equips the Airmec TEB 22 compressor is highly reliable and robust. With 7 HP power and a 212 cc displacement, it guarantees high performance and durability over time.

Features of the Airmec TTS Internal Combustion Engine Compressor

• 4-stroke petrol engine
• Recoil start with self-winding rope
• Folding handle
• Compact and easy to carry
• Pneumatic wheels
• NB4 Pumping Group
• Air flow 620 L/min
• Double tank 11 + 11 L
