Munters EMS50
Air Circulator
Up to 41,200 m³/h
Volume from 35,650 to 41,200 m3/h
Size Ø 127 cm
Power 1 to 1.5 HP
Warranty 2 years
Shipped on Pallet

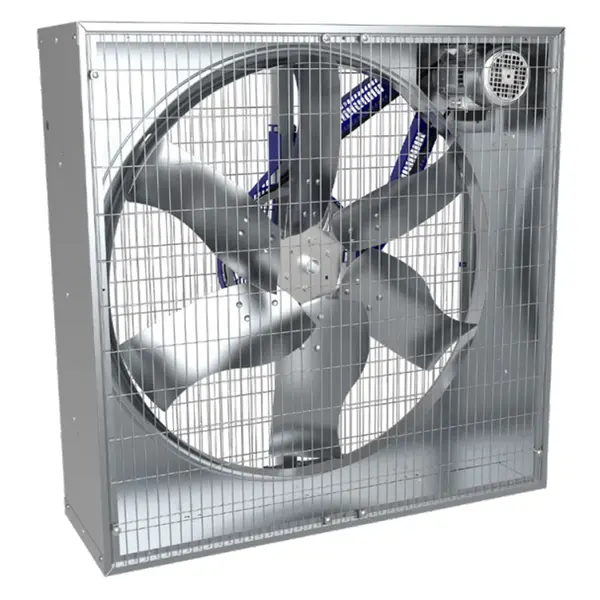

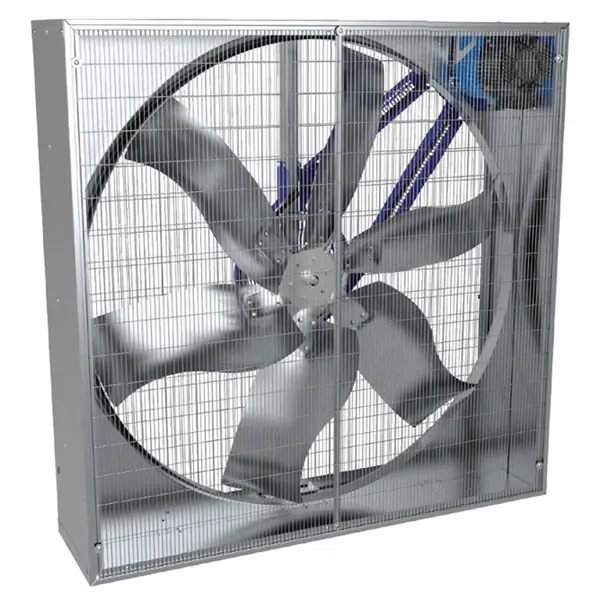

Munters EMS50 - Industrial Circulation Fan - 1 to 1.5 HP
Munters EMS50 is a powerful air circulator designed to provide high air movement capacity, ideal for agricultural and industrial applications. With a statically and dynamically balanced six-blade self-cleaning impeller , it offers maximum efficiency and reliability. The casing and air conveyor are made of robust galvanized steel sheet, ensuring durability and corrosion resistance.
This air circulator is equipped with double protection net to ensure maximum safety during operation and prevent the entry of foreign objects.
Available Models
- EMS50 AC 1 HP fan 127 cm - cod. 2600285EU
- EMS50 AC 1.5 HP fan 127 cm - cod. 2600645EU
Technical Specifications
The EMS50 model is available with 1.0 and 1.5 HP motors, equipped with 1270 mm diameter fans. The air flow rate at 0 Pa varies between 35,650 and 41,200 m³/h , with a specific efficiency of up to 30.7 m³/Wh .

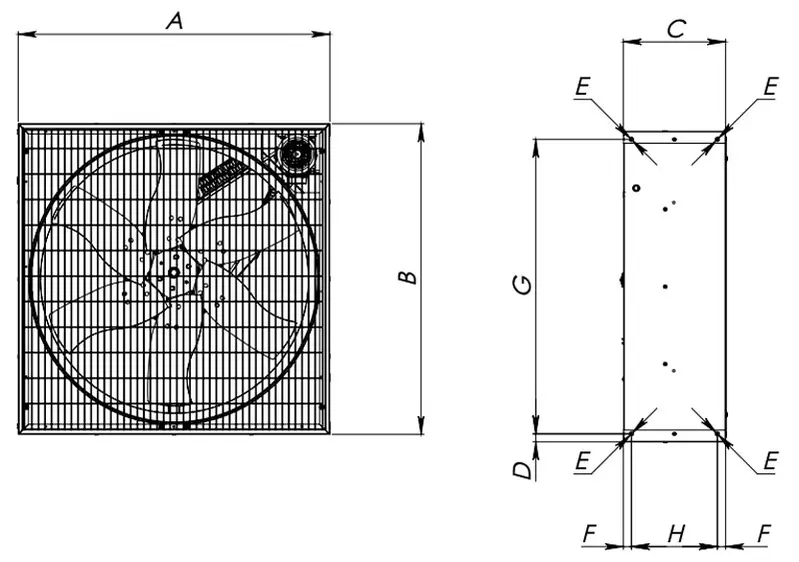

Dimensions
| TO | B | C | D | AND | F | G | H | |
| EMS50 | 1380 mm | 1380 mm | 353 mm | 28mm | M8 | 27mm | 1315 mm | 300mm |
Functional Specifications
High air movement capacity
The unique fan design ensures high airflow , making the EMS50 ideal for environments requiring effective air circulation .
Energy efficiency
The low-speed belt drive system reduces energy consumption and noise levels, contributing to a more comfortable working environment.
Ease of installation and maintenance
Special threaded bushings on the side panels allow for easy installation, while the two-section protective grille facilitates access for maintenance.
Regulatory compliance
Each motor is individually tested to ensure the highest quality, and the EMS50 complies with EU regulations on energy efficiency.
Corrosion-resistant structure
All metal components are protected by Munters Protect, ideal for environments with ammonia, humidity or chemicals.

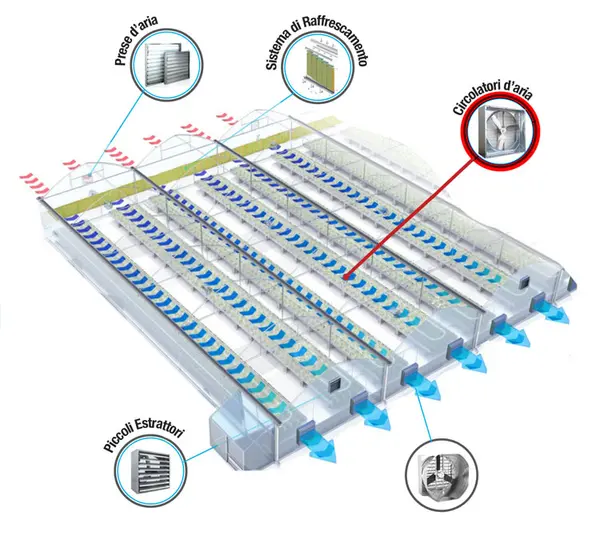

Compatibility with large-scale plants
Designed to integrate into existing industrial and agricultural systems. Easy to install, transportable even in large quantities unassembled.
Galvanized steel shutter
The galvanized steel shutter guarantees maximum resistance and hermetic seal, avoiding any air dispersion. The patented centrifugal system ensures a stable opening, without the need for maintenance. UV-resistant materials, a high-efficiency motor and an anti-vibration grille complete an extractor designed to last and consume less.
Munters Protect Anti-Corrosion Fans
In agricultural environments, high humidity, acidic pH and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters has developed Munters Protect , an innovative material for fan blades that is more resistant to corrosion than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability and performance in the most demanding conditions. The following images show the comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy and resistant appearance .
On request, the 1 HP and 1.5 HP models are available in the Power Munters Protect version, in stainless steel with a paint finish that is 10 times more resistant than normal materials.
Characteristics
- Industrial and agricultural air circulator
- 400V three-phase power supply
- Engine power from 1.0 to 1.5 HP
- Available with AC motor
- Belt drive with low maintenance
- Fan diameter 127 cm (50”)
- Self-cleaning 6-blade propeller in treated steel
- Noise level between 67.3 and 70.2 dB(A)
- Anti-corrosion structure with Munters Protect treatment
Technical Data
| Model | EMS50 AC 1HP | EMS50 AC 1.5 HP |
| Code | 2600285EU | 2600645EU |
| Power Supply | 400V | 400V |
| Motor | B.C | B.C |
| Power | 1 HP | 1.5 HP |
| Transmission | Belt | Belt |
| Fan Diameter | 1.27 m | 1.27 m |
| Material | Munters Protect | Munters Protect |
| Number of Blades | 6 | 6 |
| Max Air Flow | 35,650 m³/h | 41,200 m³/h |
| Max consumption | 1150W | 1830 W |
| Max Operating Temperature | 50°C | 50°C |
| Max Operating Pressure | 50 Pa | 50 Pa |
| Insulation | F | F |
| Protection | IP55 | IP55 |
| Noise | 67.3dB(A) | 70.2dB(A) |
| Dimensions | 138 x 138 x 30 cm | 138 x 138 x 30 cm |
| Weight | 66 kg | 68 kg |
Technical Data
| Model | EMS50 AC 1HP | EMS50 AC 1.5 HP |
| Code | 2600285EU | 2600645EU |
| Power Supply | 400V | 400V |
| Motor | B.C | B.C |
| Power | 1 HP | 1.5 HP |
| Transmission | Belt | Belt |
| Fan Diameter | 1.27 m | 1.27 m |
| Material | Munters Protect | Munters Protect |
| Number of Blades | 6 | 6 |
| Max Air Flow | 35,650 m³/h | 41,200 m³/h |
| Max consumption | 1150W | 1830 W |
| Max Operating Temperature | 50°C | 50°C |
| Max Operating Pressure | 50 Pa | 50 Pa |
| Insulation | F | F |
| Protection | IP55 | IP55 |
| Noise | 67.3dB(A) | 70.2dB(A) |
| Dimensions | 138 x 138 x 30 cm | 138 x 138 x 30 cm |
| Weight | 66 kg | 68 kg |
