ABAC HAD 7 ÷ 60
Adsorption dryer
12-24V DC / 230V AC
from 114 to 990 L / min
Dew point -40 ° C
from 114 to 990 L / min
Dew point -40 ° C

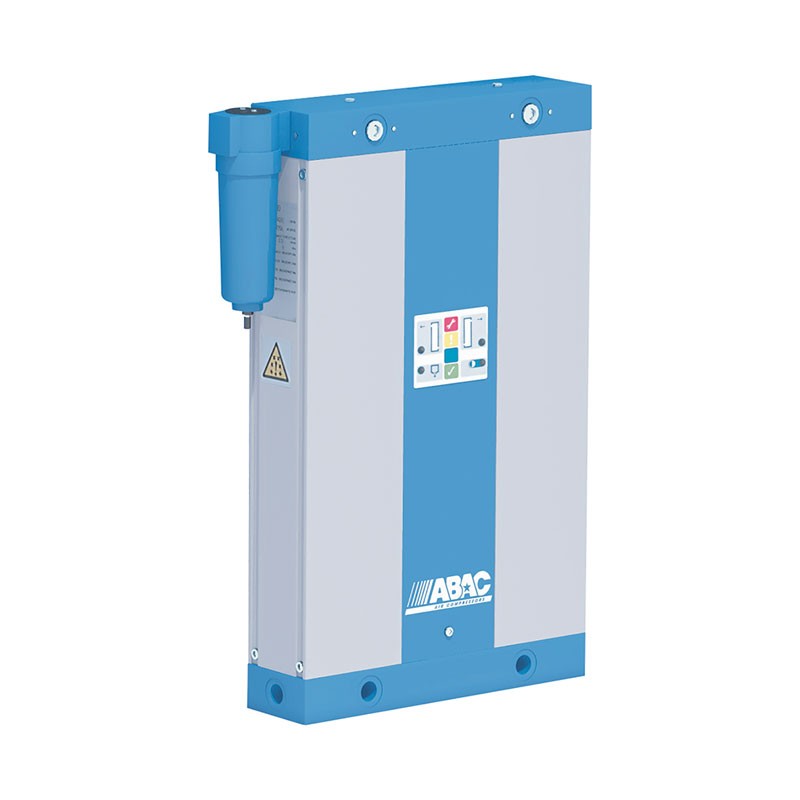

ABAC HAD 7-60 Adsorption Dryer
Description ABAC HAD 7 - 60
High quality ABAC HAD adsorption dryer with pressure dew point of -40 ° C with a small footprint ideal for all those applications where high air purity is required .
ABAC HAD components
- The prefilter removes particles and coalescing liquids from the compressed air stream
- removable front panels allow easy access for maintenance operations without the need to disconnect the pipes
- the post- filters integrated in the Abac Had adsorption dryer remove the particles present in the compressed air stream
- The electronic controls are housed in an IP65 box and allow you to manage:
- the regeneration cycle
- the adjustment status
- the default diagnosis
- the default report remotely
- multiport input and output
Boundary conditions of the ABAC HAD 7-60 adsorption dryer
- Operating pressure : 4 ÷ 16 ° C
- Operating temperature : 1,5 ÷ 50 ° C
- Ambient temperature : 5 ÷ 50 ° C
What is the ABAC HAD Adsorption Dryer for?
Today the compressed air production process does not only consist in the production of air but also in compliance with certain purity criteria of the compressed air. As one of the components of atmospheric air, in compressed air distribution systems and in machines that use compressed air it is possible to find moisture in the form of condensation or vapor. To remove condensation and steam, ABAC offers adsorption dryers that guarantee the obtainment of perfectly dehumidified compressed air and the maintenance of constant efficiency .
Advantages of using an Adsorption Dryer
- Elimination of any residual water from the network to ensure quality compressed air
- Longer service life of equipment and distribution network thanks to less wear
- Increased productivity and reduced maintenance costs
- Higher final product quality
- Increased reliability and reduced risk of leakage
- Compact Design
- Compatibility with any type of compressor
Applications of ABAC HAD Adsorption Dryers
- Pneumatic control systems
- Painting systems
- Packaging
- Injection molding
- Food industry
- Chemical Industry
- Automotive Industry
- Pharmaceutical industry
- and all cases where a dew point lower than 3 ° C is required
Technical specifications
| Template | HAD 7 | HAD 11 | HAD 18 | HAD 25 | HAD 40 | HAD 60 |
| Max pressure | 16 bar | 16 bar | 16 bar | 16 bar | 16 bar | 16 bar |
| Flow rate L / min | 114 L / min | 168 L / min | 282 L / min | 426 L / min | 708 L / min | 990 L / min |
| Flow rate m³ / h | 7 m³ / h | 10 m³ / h | 17 m³ / h | 26 m³ / h | 42 m³ / h | 59 m³ / h |
| Dew point | -40 ° C | -40 ° C | -40 ° C | -40 ° C | -40 ° C | -40 ° C |
| Prefilter Included | C 45 | C 45 | C 45 | C 45 | C 45 | C 90 |
| Postfilter | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Discharge fitting | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 |
| Dimensions | 28 x 9 x 45 cm | 28 x 9 x 50 cm | 28 x 9 x 64 cm | 28 x 9 x 82 cm | 28 x 9 x 107 cm | 28 x 9 x 146 cm |
| Weight | 13 Kg | 14 Kg | 17 Kg | 20 Kg | 24 Kg | 31 Kg |
