Leo 4M/4T
Motore Sommerso per Pompa
€141.00
€115.57 tax excl.
| or in 3 rates from 47.00 € with |  | |
| or in 3 rates from 47.00 € with |  |
Single Phase / Three Phase
0.75÷2 HP - 2800 RPM
Nema 4'' connection
Warranty 2 years
14 days to change your mind
Leo 4M/4T - Electric Motor for Submersible Pumps
Leo 4M/4T is a range of rewindable universal motors in oil bath for coupling with submersible pumps. These motors have a universal 4 inch Nema connection and are therefore compatible with all pumps with this connector .
The motors are available in single-phase or three-phase versions, with powers from 0.75 to 2 HP .
Characteristics
- 4" motor-pump connections according to NEMA regulations
- Protection class: IP68
- Engine class: B
Usage Limits
- Maximum liquid temperature +35°
- Maximum sand content: 25 g/m³
- Start-ups: 20/h
Component materials
- Stand cover - ABS
- Membrane - Rubber
- Membrane Support - Stainless steel
- Bearing holder - Cast iron
- Engine liner - AISI 304 (316 Optional)
- Rotor - Silicon
- Stator - Silicon
- Upper support - Nickel-plated cast iron

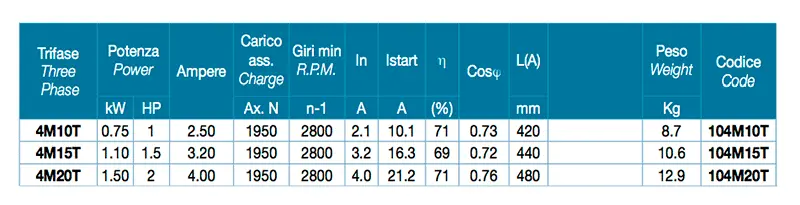

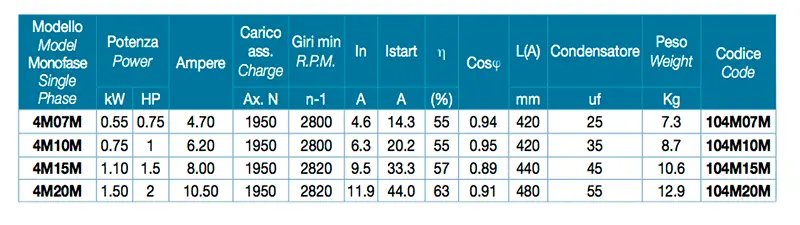

Technical data
