Leo Box Pump Starter Panel
for 1 engine 0.75-2 HP
230 V - per 1 motore
1÷2 HP - 0,75÷1,5 kW
€45.00
€36.89 tax excl.

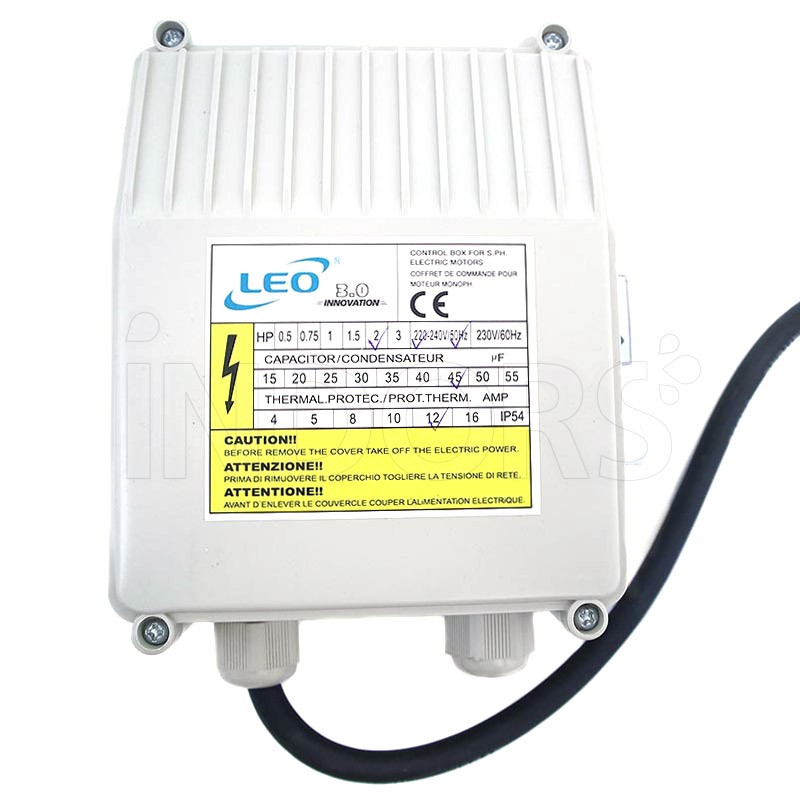

Leo Box - Pump Starter Panel for 1 Engine 0.75-2 HP
LEO BOX control and protection panels for single-phase motors represent a reliable solution for managing electric pumps and single-phase motors in residential, agricultural, and light industrial applications. Designed for direct starting , they operate with a 230V single-phase power supply (50/60Hz) and include thermal protection with an internally resettable overload relay , ensuring safety and operational continuity.
Equipped with a run capacitor and a normally open input for remote control, they offer simple and versatile use. The illuminated 0-1 main switch allows for immediate system status monitoring. The IP55 thermoplastic enclosure ensures resistance to dust and water jets, making these panels suitable for technical or outdoor environments.
Available models
- 10BOX07 - 230 V 0.55 kW 0.75 HP 6 A
- 10BOX10 - 230 V 0.75 kW 1 HP 8 A
- 10BOX15 - 230 V 1.1 kW 1.5 HP 16 A
- 10BOX20 - 230 V 1.5 kW 2 HP 16 A
Functional specifications
Thermal overload relay
Thermal overload relay, internally resettable.
Main switch and protection
Illuminated main switch 0-1, with IP55 thermoplastic casing, with tear-proof cable gland output.
Temperature and humidity parameters
Ambient temperature: -5/+40 °C, humidity detected from 50% to 40°C (non-condensing).
Characteristics
- Electrical panel for pump control
- Electric start
- Thermal protection
- Capacitor
- Thermal relay
- IP 55 protection
- Main switch
- Extends the life of the pump
Dati Tecnici
| 10BOX07 | 10BOX10 | 10BOX15 | 10BOX20 | |
| Alimentazione | 230 V | 230 V | 230 V | 230 V |
| Potenza | 1 HP - 0,75 kW | 1 HP - 1 kW | 1,5 HP - 1,1 kW | 2 HP - 1,5 kW |
| UF | 20 | 30 | 40 | 50 |
| Dimensioni | 12 x 8 x 21 cm | 12 x 8 x 21 cm | 12 x 8 x 21 cm | 12 x 8 x 21 cm |
| Peso | 0,6 kg | 0,6 kg | 0,6 kg | 0,6 kg |
