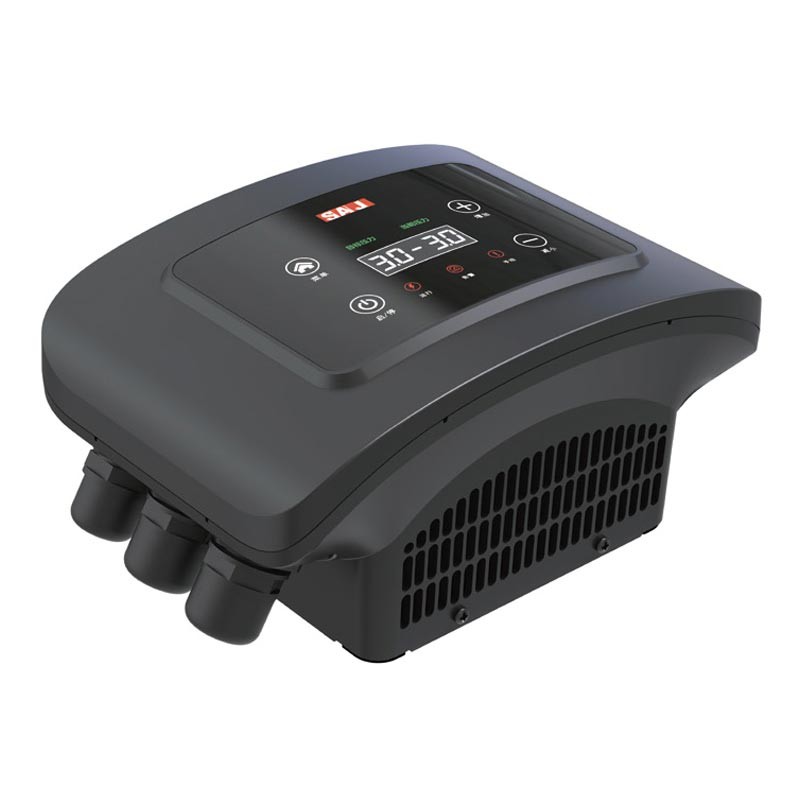

Leo PDM30/PDH30
Inverter for Centrifugal Pumps

Leo PDM30/PDH30 - Variable Frequency Control Inverter and Running Protection

The Leo PDM30/PDH30 inverter represents an advanced and efficient solution for the command, control and protection of centrifugal pumps intended for domestic water supply. Designed to work with single-phase power supply, this inverter allows the pump speed to be managed dynamically thanks to variable frequency technology, offering significant advantages in terms of energy savings, reliability and comfort in the daily use of water.

Available models

Selectable from drop-down menu:

• PDM30-2S2R2-E - cod. 1080122 ideal for domestic use 230 V input and output
• PDH30-2S2R2-E - cod. 1080123 ideal for professional/industrial applications 230 V

Functional specifications

Latest generation inverters

Leo inverter PDM30/PDM30 represents an advanced and efficient solution for the command, control and protection of centrifugal pumps intended for domestic water supply. Designed to work with single-phase power supply, this inverter allows the pump speed to be managed dynamically thanks to variable frequency technology, offering significant advantages in terms of energy saving, reliability and comfort in the daily use of water.

Single-phase inverter PDM30

Single-phase inverter for the command, variable frequency control and protection in operation of centrifugal pumps dedicated to water supply. It allows to control one or more pumps connected to each other at hydraulic level and communicating in the serial process. The maximum power of PDM30 is 2.2 kW with 230 V 9.5 A output , PID regulation with reference signal from 4-20 mA pressure transducer. It has a display where you can easily view the operating pressure and the regulation pressure.

PDH30 Inverter

Same features but with an interface consisting of 4 buttons and a 4-character display for easy commissioning and to view the alarm parameters. Power

Characteristics

• Inverter for variable frequency control
• Maximum power 2.2 kW
• Single phase input 230V 50Hz
• Three-phase output 230V 9.5A
• PID regulation with transducer
• Input signal 4-20 mA
• Dual reading pressure display
• PID Control
• Multipump Control
• Advanced and precise software
• Full protection on the move
