Baltrotors GRS16S 6 Ways
Rotator with 6 Hole Flange
+160/-90 kN for Forestry Grippers
MPN: GRS16S 6 VIE
Warranty 2 years
14 days to change your mind
Shipped on Pallet

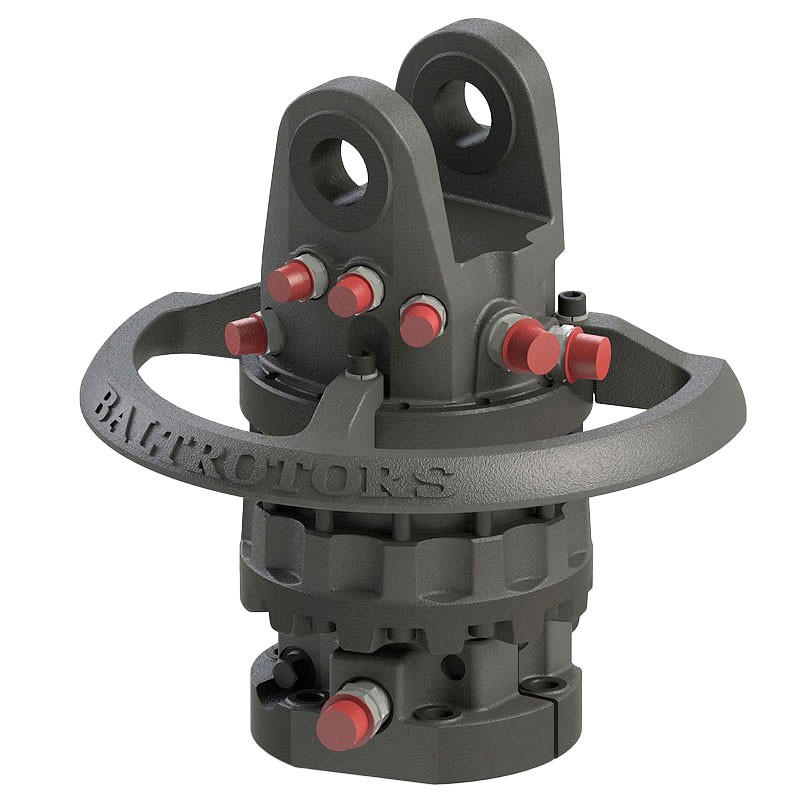

Baltrotors GRS16S - Rotator +160/-90 kN with 6 Hole Flange - for Forestry Grapples
Baltrotors GRS16S is a lightweight mechanical rotator for agricultural or forestry equipment , suitable for simple and economical applications.
It has unlimited rotation , a capacity of 160 kN in traction and -90 kN in compression and an oil flow of 40 L/min .
With 6-hole rectangular flange lower connection .
Compatibility with MHS Pliers
- MHS TMR-HD 1800 IMEX 700 Reinforced Open Forks

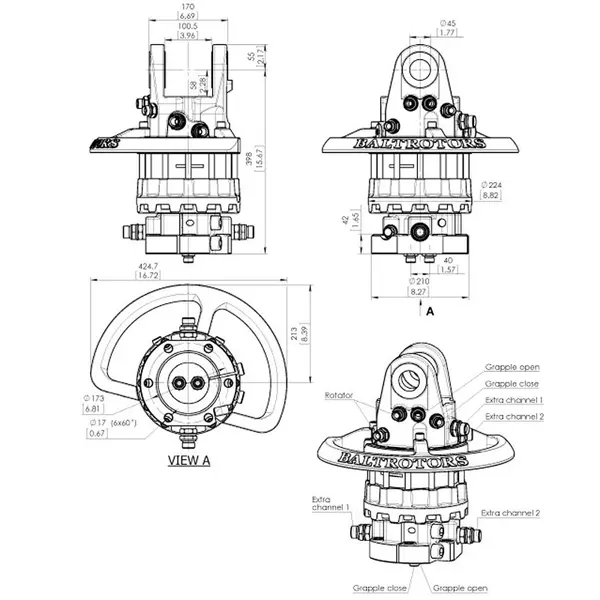

Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | +160/-90 kN |
| Max Dynamic Axial Load | +80/-45 kN |
| Couple | 3400 Nm |
| Recommended Oil Flow | 40 L/min |
| Upper Connection L | 100.5mm |
| Upper Connection D | Ø 45 mm |
| Dimensions | 42.5 x 40 x 21 cm |
| Weight | 79 kg |
Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | +160/-90 kN |
| Max Dynamic Axial Load | +80/-45 kN |
| Couple | 3400 Nm |
| Recommended Oil Flow | 40 L/min |
| Upper Connection L | 100.5mm |
| Upper Connection D | Ø 45 mm |
| Dimensions | 42.5 x 40 x 21 cm |
| Weight | 79 kg |
