Baltrotors GR10
Rotator 10 kN + Flange
for Forestry Grippers
MPN: GR10
Warranty 2 years
14 days to change your mind

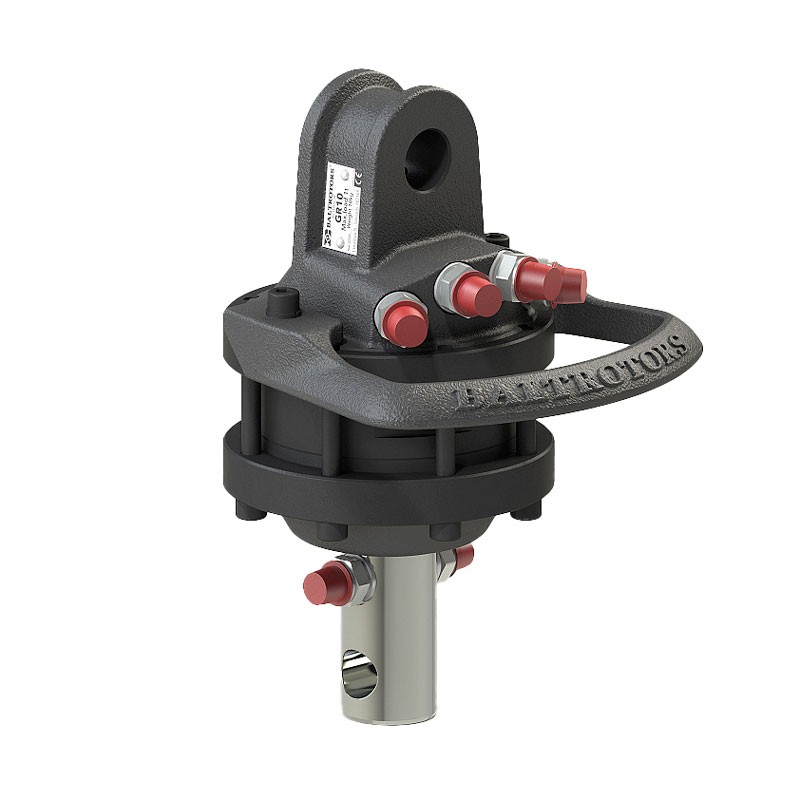

Baltrotors GR10 - 10 kN Rotator for Forestry Grapples - Unlimited Rotation and Flange Included
Baltrotors GR10 is a lightweight mechanical rotator for agricultural or forestry equipment , usable in simple and economical applications.
It has unlimited rotation , a capacity of 10 kN and an oil flow of 10 L/min .
Flange included .
Compatibility with MHS Pliers
- MHS TM 1000 LIGHT
- MHS TM 1000 FE510
- MHS TM 1000 IMEX 700 Reinforced Closed Forks
- MHS TM 1000 IMEX 700 Reinforced Open Forks
Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | 10 kN |
| Max Dynamic Axial Load | 5 kN |
| Couple | 450 Nm |
| Recommended Oil Flow | 10 L/min |
| Upper Connection L | 45mm |
| Upper Connection D | Ø 25 mm |
| Lower Axial D and Hole D | Ø 39.5 mm / Ø 20 mm |
| Dimensions | 18.2 x 21.5 x 13.4 cm |
| Weight | 10 kg |
Technical Data
| Rotation | Unlimited |
| Max Static Axial Load | 10 kN |
| Max Dynamic Axial Load | 5 kN |
| Couple | 450 Nm |
| Recommended Oil Flow | 10 L/min |
| Upper Connection L | 45mm |
| Upper Connection D | Ø 25 mm |
| Lower Axial D and Hole D | Ø 39.5 mm / Ø 20 mm |
| Dimensions | 18.2 x 21.5 x 13.4 cm |
| Weight | 10 kg |
