Pramac PY000A000C1
Automatic ATS Panel

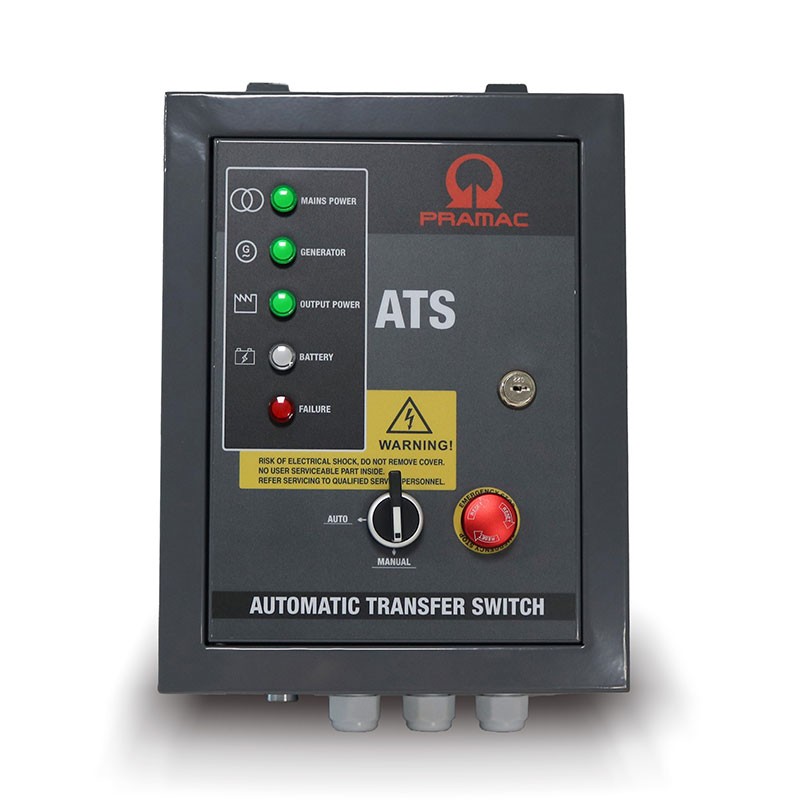

Pramac PY000A000C1 - Automatic ATS Panel

The PY000A000C1 automatic ATS panel for power generators allows you to connect the generator to the home network so as to allow it to start automatically in the event of a power failure .

The ATS panel is compatible with Pramac PMi4500 generators.

Cable length 8 m

Functional specifications

Pramac ATS PY000A000C1 It is used to transfer the electrical load from a main source (grid) to an emergency power source (generator). When the main power source fails, the ATS allows the generator to supply electricity to the connected electrical loads.

Mode selector

If the primary power source fails, the Pramac ATS automatically starts the generator. After approximately 1 minute, the ATS supplies power to the generator's electrical load. If the primary power source is restored, the ATS stops the generator after approximately 1 minute.

Emergency button

The emergency stop button allows you to immediately stop the generator and interrupt the battery charging function.

Warning lights

Includes mains power, generator, load, battery, and fault indicators. Includes ATS multipin connector and signal cable.

Characteristics

• ATS generator for automatic start
• Compatible with Pramac PMi4500
• Connector cables included
