Pramac PX 10000
Professional Petrol Generator
€2,350.00
€1,926.23 tax excl.
library_add
more options
MPN: PX10000
230V - 10,3 kW
622 cc - 12 HP
AVR
Warranty 2 years
14 days to change your mind
Shipped on Pallet

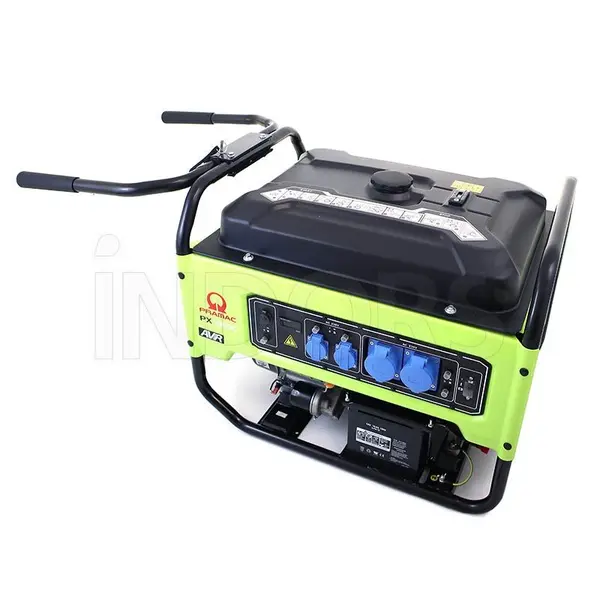

Pramac PX 10000 - Professional Petrol Generator 10.3 kW
Pramac PX 10000 is a petrol generator for professional use , equipped with a robust and compact structure, with a frame with handle and solid wheels included and a central lifting point , which allow it to be transported easily .
Technical specifications
The Pramac PX 10000 generator supplies current at a voltage of 230V , for a maximum emergency power supply in standby (ESP) of 9.3 kW and a nominal power in continuous service of 8.5 kW . It produces 72 dB(A) at 7 meters away and allows an autonomy of 11.19 hours at 75% load.
Motor
The generator is equipped with an air -cooled LC196FD engine , with electric start/recoil , 622 cm³ displacement and 3000 RPM . The speed regulator is mechanical and the oil tank has a capacity of 1.6 L , furthermore the fuel tank capacity is 48 L.
Alternator
The Pramac PX 10000 alternator is a 2-pole class H alternator with AVR voltage regulation system.
Control Panel
This generator set has an integrated control panel complete with:
COMMANDS
- Ignition key: OFF -ON -START
INSTRUMENTATION
- Voltmeter
- Ammeter
- Fuel level indicator
PROTECTIONS
- Thermal protection
- Oil Guard (low oil pressure)
- OUTPUT 12V DC 8.3A
TAKEN
- 2 SCHUKO sockets 230V 16A IP44
- 2 sockets 2P+T CEE 230V 32A IP44
Standard equipment
- Electronic voltage regulator
- Transport kit
- Electrical outlets
- Handles
- Screwdrivers
- Wheels
- Instruction manual
Technical data
| Voltage | 230V |
| Power in Emergency | 10.3 kVA - 9.3 kW cos φ 0.9 |
| Rated Power in Continuous Duty | 9.4 kVA - 8.5 kW cos φ 0.9 |
| Motor | LC196FD |
| Fuel | Gas |
| Cooling down | Air |
| Fuel tank | 48 L |
| Oil tank | 1.6 L |
| Starting System | Electric (+Tear) |
| Speed regulator | Mechanical |
| Engine RPM | 3000RPM |
| Aspiration | Natural |
| Displacement | 622 cm³ |
| Alternator Class | H |
| Poly | 2 |
| Tension Regulation System | AVR |
| Fuel Consumption at 75% of Load | 4.29 L/h |
| Autonomy at 75% of the load | 11.19am |
| Noise | 73 dB(A) |
| Dimensions | 83.7 x 78.5 x 92.4 cm |
| Weight | 148kg |
Technical data
| Voltage | 230V |
| Power in Emergency | 10.3 kVA - 9.3 kW cos φ 0.9 |
| Rated Power in Continuous Duty | 9.4 kVA - 8.5 kW cos φ 0.9 |
| Motor | LC196FD |
| Fuel | Gas |
| Cooling down | Air |
| Fuel tank | 48 L |
| Oil tank | 1.6 L |
| Starting System | Electric (+Tear) |
| Speed regulator | Mechanical |
| Engine RPM | 3000RPM |
| Aspiration | Natural |
| Displacement | 622 cm³ |
| Alternator Class | H |
| Poly | 2 |
| Tension Regulation System | AVR |
| Fuel Consumption at 75% of Load | 4.29 L/h |
| Autonomy at 75% of the load | 11.19am |
| Noise | 73 dB(A) |
| Dimensions | 83.7 x 78.5 x 92.4 cm |
| Weight | 148kg |
