LTF GSC200-4-1-SE
4 in 1 Multifunction Power Generator
230V - 5,5 kW
7 HP
BENZINA
LTF GSC200-4-1-SE - 4 in 1 Multifunction Power Generator

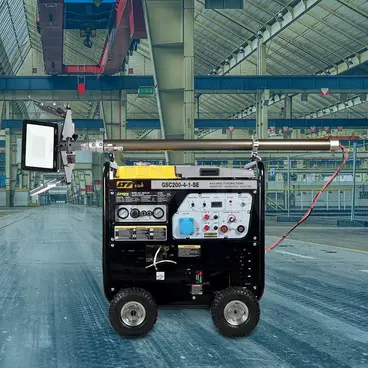

The 4 in 1 LTF multifunction petrol power generator is innovative and versatile , in fact with a single wheeled generator you will have a welding machine , a power generator , a compressor and a light tower (extendable from 1.8 m to 4.5 m ), all with excellent performance .
Technical specifications
GENERATOR
This LTF GSC200-4-1-SE generator is capable of generating a maximum of 5.5 kW of power and working continuously at a nominal power of 5 kW in single-phase current, generating 3000 RPM . It can work for a long time thanks to the 30 L tank.
Equipped with a recoil or electric starting system , this makes it comfortable and safe , also thanks to the 21S IP protection class .
The multifunction generator features an AVR voltage regulator , which makes the connection of electronic devices that are affected by voltage and frequency changes more stable , also reducing current drops or peaks.
The MDS rectifier system allows you to transform an alternating signal into a unidirectional one (positive or negative).
The outputs of this generator are:
- 1x16A/230V
- 1x32A/230V
WELDING MACHINE
The MMA welder ( electrode welding) can work in a power range between 50 - 200DC/A with a Duty Cycle (40°) of 50% - 200 A. Thanks to its power it is able to use electrodes of Ø 1.6 to 4.0 mm . Working with rated current/voltage of 180A/27.2V .
The welder is supplied with a welding mask , mass clamp and electrode holder . While using the welder it will not be possible to connect other electric tools to the generator as all the energy will be used in managing the latter.
COMPRESSOR
The compressor is located inside the machine and ensures excellent performance thanks to its large 100 L tank and the possibility of sucking 100 L/m of air .
This compressor features a 2-stage motor capable of generating 6÷8 bar of pressure.
The dimensions are 86 x 60 x 60 cm for 153 kg , despite having a significant size , transport is facilitated by the system with large wheels mounted on the machine.
LIGHT TOWER 1.8 m ÷ 4.5 m

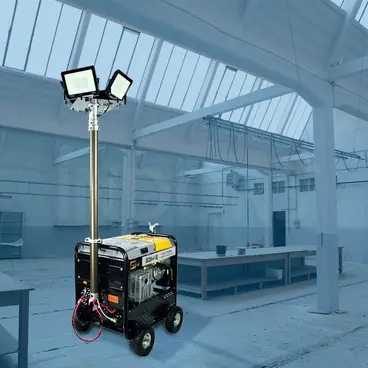

Thanks to the presence of the light tower, there is no need to carry an additional tool while working on construction sites, tunnels and the like, where it is necessary to have a portable lighting system with you to work.
This light tower features a practical telescopic system , allowing for a particularly small footprint and allowing a range of 1.8 m to 4.5 m and the possibility of storing it on the camera body in its housing.
The light tower is able to provide ample lighting thanks to its 4 LED lamps of 100 W each.
Upon arrival, before ignition, it is necessary to introduce oil and petrol.
Characteristics
- MMA welder
- 100 L compressor
- Generator with nominal power 5 kW
- Manual recoil and electric start
- 4 x 100W LED lamps
- Maximum extension 4.5 m
Technical data
GENERATOR | |
Power Supply | 230V |
Maximum power | 5.5 kVA - 5.5 kW cos φ 1 |
Nominal power | 5 kVA - 5 kW cos φ 1 |
DC Direct Current | 21.7A |
Power Factor | 1 cos |
Start | Manual / Electric |
Protection Class | 21S IP |
Phases | Mono |
Engine rpm | 3000RPM |
Enhancement Class | G1 |
Fuel | Gas |
Get out | 1x16A/230V and 1x32A/230V |
WELDING MACHINE | |
Duty Cycle (40°) | 50% - 200 A |
OCV (Open Circuit Voltage) | 75 DC/V |
Current Range | 50 - 200 A |
Welding voltage | t22 - 28 DC/V |
Weld thickness | 1.6 - 5.0mm |
Nominal Current / Voltage | 180A/27.2V |
Ø Electrodes | 1.6 - 4.0mm |
COMPRESSOR | |
Capacity | 100 L (1m³) |
Suctioned air | 100 L/m |
N° of stages | 2 |
Pressure Field | 6 ÷ 8 bar |
LIGHTHOUSE TOWER | |
LED lamps | 4x100W |
AC voltage | 230V |
Lifting height | 1800 - 4500 mm |
GENERAL DATA | |
Dimensions | 61 x 111 x 175 cm |
Weight | 153kg |
Technical data
GENERATOR | |
Power Supply | 230V |
Maximum power | 5.5 kVA - 5.5 kW cos φ 1 |
Nominal power | 5 kVA - 5 kW cos φ 1 |
DC Direct Current | 21.7A |
Power Factor | 1 cos |
Start | Manual / Electric |
Protection Class | 21S IP |
Phases | Mono |
Engine rpm | 3000RPM |
Enhancement Class | G1 |
Fuel | Gas |
Get out | 1x16A/230V and 1x32A/230V |
WELDING MACHINE | |
Duty Cycle (40°) | 50% - 200 A |
OCV (Open Circuit Voltage) | 75 DC/V |
Current Range | 50 - 200 A |
Welding voltage | t22 - 28 DC/V |
Weld thickness | 1.6 - 5.0mm |
Nominal Current / Voltage | 180A/27.2V |
Ø Electrodes | 1.6 - 4.0mm |
COMPRESSOR | |
Capacity | 100 L (1m³) |
Suctioned air | 100 L/m |
N° of stages | 2 |
Pressure Field | 6 ÷ 8 bar |
LIGHTHOUSE TOWER | |
LED lamps | 4x100W |
AC voltage | 230V |
Lifting height | 1800 - 4500 mm |
GENERAL DATA | |
Dimensions | 61 x 111 x 175 cm |
Weight | 153kg |
