Pramac PX 5000
Compact Generator 4.2 kW
or in 3 rates from 259.67 € with | ||
or in 3 rates from 259.67 € with |
230V - 4.2 kW
389 cc
4-STROKE PETROL
Pramac PX 5000 - Petrol Generator with AVR
Pramac PX5000 is a generator set with integrated Pramac SR188Fe AVR petrol engine .
With dimensions of 72 x 52 x 67 cm and a net weight of 79 kg , the Pramac PX 5000 generator is compact , open , equipped with a folding handle and large rear wheels , to facilitate movement even on uneven terrain . This machinery is the ideal device for powering electrical equipment (within power limits), where it is not possible to do so with a traditional power connection. Pramac PX500 is the ideal solution for domestic (homes, campsites) and semi-professional environments (workplaces, construction sites, factories), especially for dealing with temporary emergencies .
Operation specifications
The voltage is single-phase 230V with a frequency of 50 Hz . The maximum power delivered is 4.2 kW and in continuous service COP is 3.9 kW . Pramac PX 5000 is equipped with a 389 cc single-cylinder 4-stroke petrol engine from the parent company, model SR188F , with mechanical speed regulator and air cooling system. The starting is recoil and the engine speed is 3000 RPM .
The fuel tank capacity is 27 L. The crankcase is oil bathed .
The two-pole alternator supplied belongs to class H , with 50 Hz frequency and electronic voltage regulation ( AVR ) system. The AVR, which allows the PX 5000 to deliver a stable voltage, without power surges. In this way, the Pramac single-phase generator is the ideal power supply tool for those sensitive electronic devices that require a clean and balanced current over time , preventing malfunctions. Protection is 23/44 .
The autonomy of Pramac PX5000 is 1.92 L/h , with an autonomy in PRP of 14.06 h .
The noise level is 97 dBA, 69 dB at 7 meters , compliant with current regulations.
Structural features

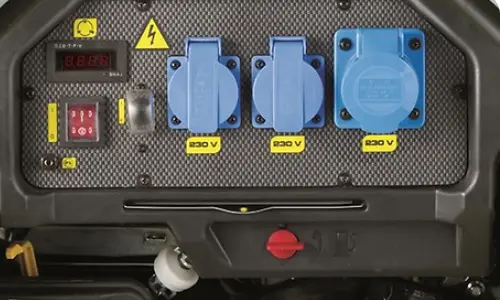

Pramac PX 5000 is equipped with a control panel complete with:
- ON-OFF-START ignition key
- Instrumentation : voltmeter, ammeter, frequency meter, fuel level indicator
- Protections : thermal, low oil pressure (Oil Guard)
There are also sockets:
- 2 Schuko sockets 230V 16A IP54
- 2P+E CEE 230V 16A IP44
Characteristics
- 4.2 kW generator set with stable power
- Retractable handle and large tires for transport
- Pull start
- Controls with ON/OFF switch and counters
- Pramac 389 cc petrol engine
- Oil bath lubrication
- Air cooling
- 27 L petrol tank, consumption 1.92L/h
- Oil Carter 1.1 L
- 2 pole alternator with AVR
- Noise level at 7 meters 69 dB
How to choose a portable generator set
After having described the characteristics of the Pramac PX 5000 portable generator, we want to provide you with some useful information for choosing the product that is best for you. First, let's focus on the following 3 points:
- Use of the product : if you need the power generator for occasional emergency use, for long-term or limited-time use;
- Type of voltage : to be evaluated if you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
- Quantity of power : the need for energy support must be assessed
Do not hesitate to contact us if you have any questions or need further specifications!
Standard equipment
- Spark plug key
- Instruction booklet
Technical data
Fuel | Gas |
Goodwill | Tear off |
Maximum power | 4.2 kVA - 3.8 kW cos φ 0.8 |
Nominal power | 3.9 kVA - 3.5 kW cos φ 0.8 |
Generator Type | Open |
Output Voltage | 230V / 50Hz |
Motor | 4 Strokes |
Displacement | 389 cc |
Phase | Single phase |
Oil capacity | 1.1 L |
Fuel Tank Capacity | 27 L |
Autonomy 100% Load | 14.6 hours |
Noise | 69 dB |
Dimensions | 72 x 52 x 67 cm |
Weight | 79kg |
Technical data
Fuel | Gas |
Goodwill | Tear off |
Maximum power | 4.2 kVA - 3.8 kW cos φ 0.8 |
Nominal power | 3.9 kVA - 3.5 kW cos φ 0.8 |
Generator Type | Open |
Output Voltage | 230V / 50Hz |
Motor | 4 Strokes |
Displacement | 389 cc |
Phase | Single phase |
Oil capacity | 1.1 L |
Fuel Tank Capacity | 27 L |
Autonomy 100% Load | 14.6 hours |
Noise | 69 dB |
Dimensions | 72 x 52 x 67 cm |
Weight | 79kg |
