Pramac PX 8000
Generator With Wheels 6 kW

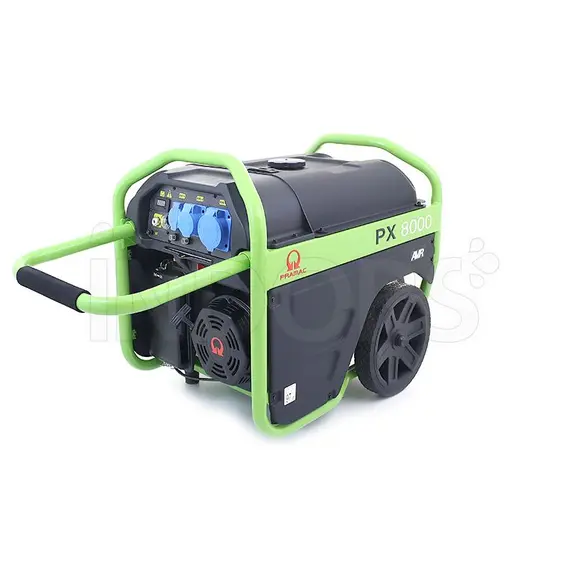

Pramac PX 8000 - Carellato Generating Set with AVR

Pramac PX8000 is a professional generator set open and equipped with wheels, with AVR device for automatic voltage regulation.

This generator satisfies the most demanding users and can be used to supply electricity in domestic environments , campsites , and workplaces such as construction sites and industries , factories and workshops .

With a 230V single-phase voltage and a frequency of 50 Hz , the Pramac PX 8000 is equipped with a Pramac 4-stroke OHV valve engine model SR190F , running on petrol and with a 420 displacement .

The Pramac PX 8000 generator set is compact , efficient and easy to use and with a current power output of 6kW it is suitable for semi-intensive use.

The noise level is 97 dBA, 69 dB at 7 meters , compliant with current regulations.

Structural features

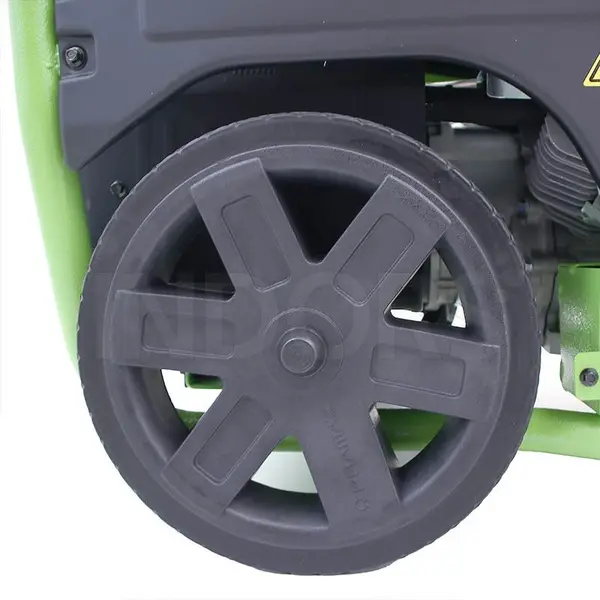

Equipped with large wheels for movement and a retractable handle with various support points, this portable power generator has a sturdy metal frame , which surrounds the engine, effectively protecting the machinery from wear .

Pramac PX 8000 is the ideal generator for construction site use or for your factory , as it reaches wherever there is a need for power support.

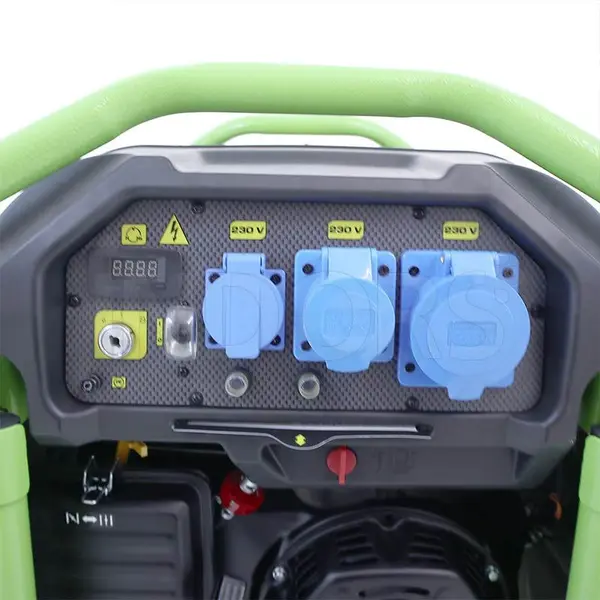

The controls on this petrol generator set include:

• Electric starter ;
• A 230V 16A IP54 Schuko socket ;
• One 230V 16A IP44 CEE socket and one 230V 32A IP44 CEE socket
• Engine ON/OFF switch , voltmeter, ammeter, frequency meter
• Fuel level indicator light ,

Among the protections with which this device is equipped there are:

• Oil Guard system to protect the engine, should the oil drop below the safe level. The generator set is also equipped with an air valve .
• Motor thermal protection

Operation specifications

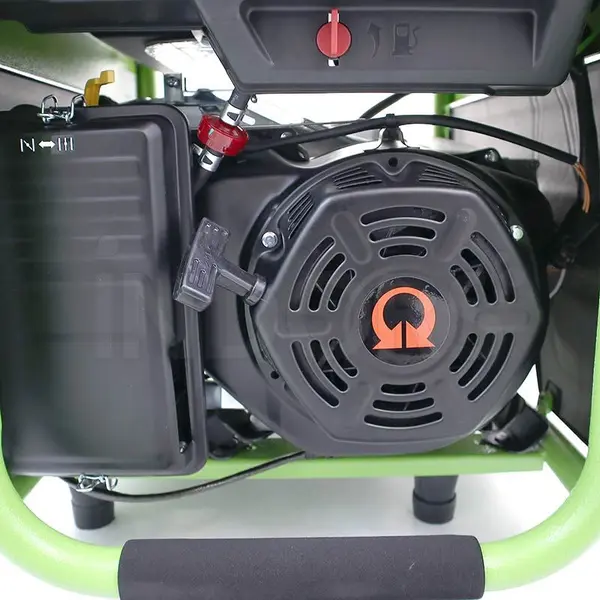

The Pramac PX 8000 portable power generator mounts a Pramac SR190F 420 cc and 3000 RPM overhead valve engine. The cooling system is air with natural aspiration . The petrol, which serves as fuel for the engine, is collected in a tank with a maximum capacity of 27 L , with a consumption at full speed of 2.66 L/h . The lubrication system is oil, with a 1.1 L crankcase.

The class F alternator , IP 23/44 protection, has 2 poles and is characterized by the AVR voltage regulation system, which allows the PX 8000 to deliver a stable voltage, without current fluctuations. In this way, the Pramac single-phase generator is the ideal power supply tool for those sensitive electronic devices that require a clean and balanced current over time, in order to avoid malfunctions.

Characteristics

• 6kW generator set with stable power
• Retractable handle and large tires for transport
• Electric starter
• Controls with ON/OFF switch and counters
• OHV petrol engine with 420 cc displacement
• Oil bath lubrication
• Air cooling
• 27 L petrol tank, consumption 2.66 L/h
• Oil Carter 1.1 L
• 2 pole alternator with AVR
• Noise level at 7 meters 69 dB

How to choose a portable generator set

After having described the characteristics of the Pramac PX 8000 portable generator set, we want to provide you with some useful information for choosing the product that is best for you. First, let's focus on the following 3 points:

• Use of the product : if you need the power generator for occasional emergency use, for long-term or limited-time use;
• Type of voltage : to be evaluated if you need a generator compatible with domestic current (single-phase) or a three-phase industrial device;
• Quantity of power : to evaluate the need for energy support

Do not hesitate to contact us for any doubt or need for further specifications!
