Docma VF150 54.20
Winch Capacity 2840 kg with Rope, Braca and Pulley

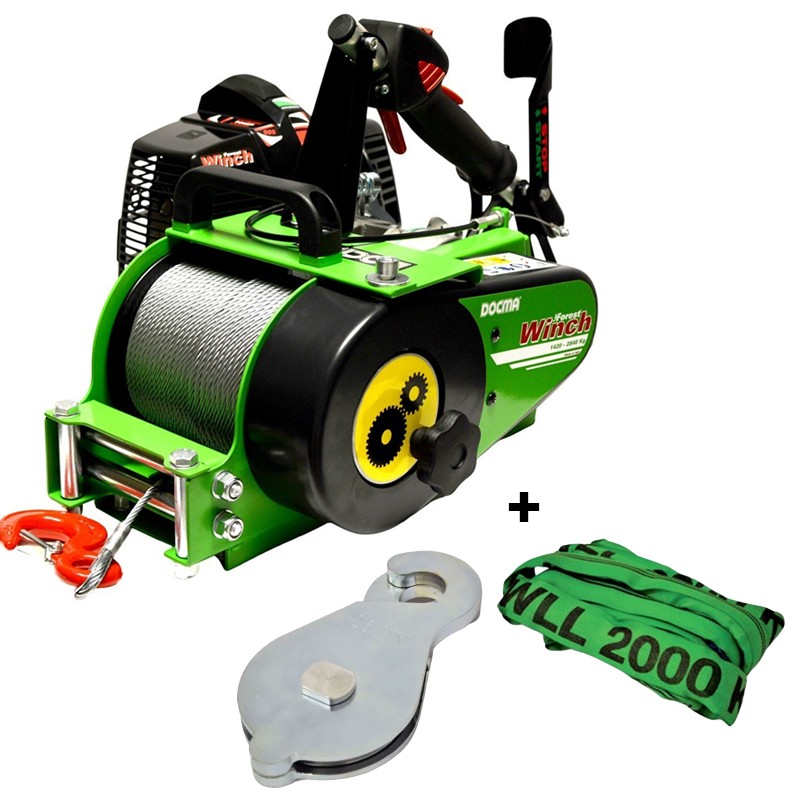

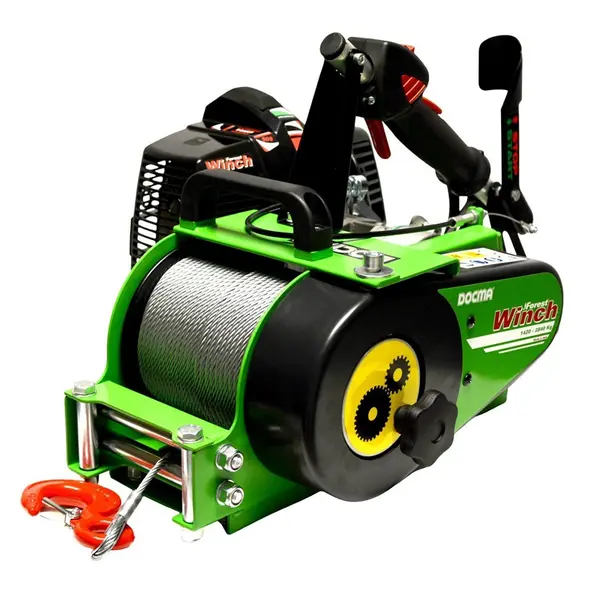

Docma Forest Winch VF150 - 54.20 + Rope, Sling and Pulley

The Docma VF150 54.20 is a professional forestry winch from the Forest Winch series, designed for intensive pulling operations in woodland environments. Made in Italy , it combines ease of handling , traction power and automatic load stop , offering high performance thanks to the 54.20 cc engine and integrated rope drum , ideal for continuous technical use.

TECHNICAL SPECIFICATIONS

The AL-KO 54.20 cc engine guarantees stable power and optimal torque for demanding traction. The machine develops 1420 kg of traction and reaches 2840 kg in double with return , maintaining a drum speed of 20 m/min . The winch uses steel cable with a drum capacity of 80 m x 5 mm or 60 m x 6 mm , equipped with an automatic brake , manual winding and a low weight of 23 kg , ideal for operations where efficiency and compactness are required.

FUNCTIONAL SPECIFICATIONS

Enhanced traction for forestry use

The mechanics of the Docma VF150 54.20 ensure constant pulling with high applied force, taking advantage of the double traction up to 2840 kg , essential for controlled felling and log handling.

Automatic load stop

The automatic braking system immediately blocks the load when the control is released, ensuring stability and safety during pulling operations on slopes or with irregular loads.

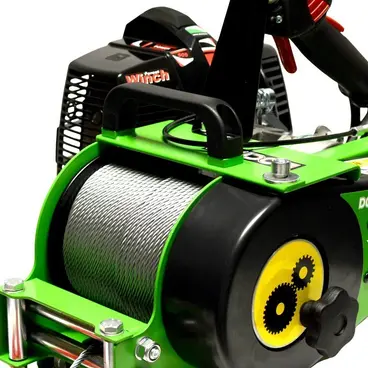

Steel rope winding drum

The integrated steel wire rope drum offers smooth winding and reduced wear, with a dedicated knob for quick attachment and release even in demanding operating conditions.

Ergonomic command and direct control

The control handle ensures immediate response and precise control of the shot, facilitating rapid maneuvers in high-intensity professional contexts.

Complete set for immediate use

The winch is supplied with 5 mm x 80 m rope , hook with safety catch , 26 kN pulley and 4000 mm ring sling , for immediate operational use without additional accessories.

Watch the Video

Characteristics

• Professional winch
• High-torque 54.20cc AL-K engine
• Maximum traction 1420 kg (up to 2840 kg in double)
• Drum speed 20 m/min
• Automatic load stop system
• Exclusive use with steel rope
• Drum capacity 80 m x 5 mm / 60 m x 6 mm
• Manual rope winding
• Integrated rope reel drum with hook/release knob
• Ergonomic control handle
• 5mm x 80m rope with hook with safety included
• 26 kN pulley included
• 4000mm ring sling included
• Weight 23 kg

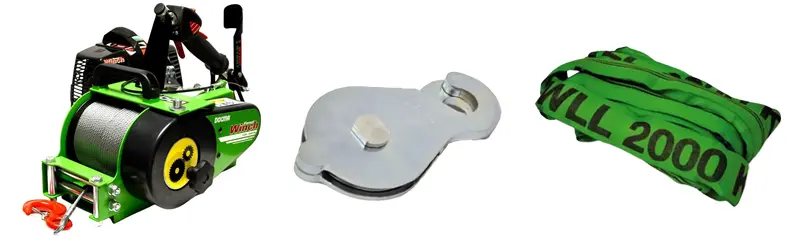

Standard Equipment

• VF150 Winch - 54.20
• Steel Rope 5x80 mm and Hook with Safety Lock - 310005
• Steel Pulley 26 kN - 4/6.5 mm for VF 150 - 310011
• 4000 mm Round Sling - 2 Tons - 310002

Optional equipment

The use of accessories such as the pulley to divert the rope, the sling to protect trees, and certified ropes and chains guarantee greater safety for people and the environment.

All Made in Italy, Original and Docma Certified

They can be purchased in related products.

• Ring Sling

• Braca ad Asole

• Ratchet Sling

• Chocker Tie Rod

• Bosco Chain

• Safety Hook

• Swivel Hook with Safety Lock

• Cricket

• Steel Pulley

• Aluminum Pulley

• Steel Rope

• Steel Rope with Swivel Hook

• Winch Backpack

• Winch Trolley

• Base Sled

• Multifunction Sled

• Elastic Cord

• Spring Buckle Ribbon
