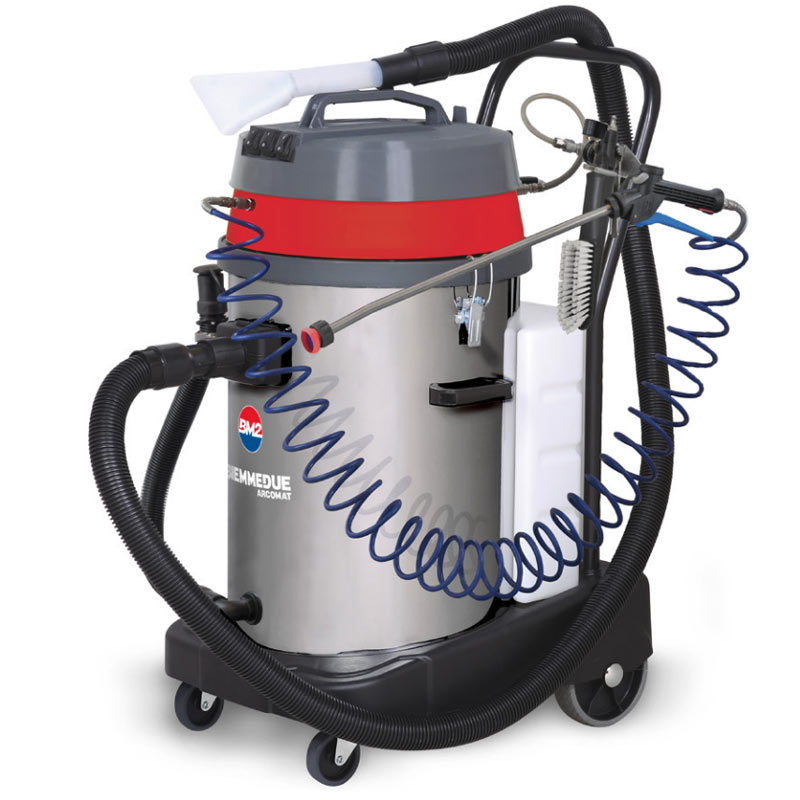

Biemmedue EX-F 80 M ECO
Wet and Dry Vacuum Cleaner with Foaming Agent

Biemmedue EX-F 80 M ECO - Wet and Dry Vacuum Cleaner with Foaming Agent and Stainless Steel Tank

The Biemmedue EX-F 80 M ECO is a combined wet/dry vacuum cleaner with a dry foam function designed for industrial and commercial cleaning professionals. This advanced system combines the suction power of a professional vacuum cleaner with the ability to generate high-density dry foam , making cleaning carpets, rugs, mattresses, floors, and delicate surfaces quick, effective, and safe.

Thanks to the double two-stage motor with bypass cooling and the diaphragm pump with bypass and integrated pressure switch , the Biemmedue EX-F 80 M ECO guarantees a constant flow of suction and foam, leaving surfaces dry and perfectly clean. The compressed air connection allows you to immediately dispense professional foam directly onto the surface, optimizing time and productivity for thorough cleaning jobs in professional environments.

TECHNICAL SPECIFICATIONS

The Biemmedue EX-F 80 M ECO combines professional power and reliability with advanced industrial cleaning technology. Powered by a 230V single-phase mains supply and a maximum power of 2400W , the two-stage, two-motor system with bypass cooling ensures constant, long-lasting suction, with a vacuum of 2500 mm H₂O and an air flow rate of 430 m³/h , ideal for removing dust, liquids, and foam residue quickly and effectively.

Fluid management is guaranteed by a high-performance diaphragm pump with a flow rate of 0.3 L/min and a pressure of 4 bar , perfect for the immediate production of professional dry foam . The 80 L stainless steel drum is resistant to impacts and chemical agents, while the 16 L clean water tank ensures extended autonomy. With a low noise level of 78 dB(A) , a 7-metre cable and Ø 40 mm accessories , the Biemmedue EX-F 80 M ECO offers maximum efficiency, flexibility and comfort for professional cleaning jobs on complex surfaces.

FUNCTIONAL SPECIFICATIONS

High efficiency professional suction system

The Biemmedue EX-F 80 M ECO is equipped with a professional suction system that combines power and precision. The two two-stage motors work in parallel to generate a vacuum of 2500 mm H₂O , ensuring the complete removal of liquids, dust, and foam residue. This configuration allows for continuous and stable suction, essential for obtaining dry and clean surfaces in a single pass.

Dry foaming technology with compressed air

The presence of a dedicated compressed air connection allows the Biemmedue EX-F 80 M ECO to generate professional dry foam directly on the surface being treated. The dense, controlled foam adheres to the material being cleaned, dissolving dirt deeply without excessive use of water. This system is particularly suitable for upholstery , carpeting , car interiors and delicate surfaces , guaranteeing uniform results and extremely short drying times.

Diaphragm pump with integrated pressure switch

The heart of the system is the diaphragm pump with bypass and integrated pressure switch , designed to operate even in the most demanding conditions. This component ensures a constant and safe flow of foam solution, maintaining optimal operating pressure and preventing system overloads or blockages. The pump is synonymous with reliability and operational continuity, two essential elements for intensive use in professional settings.

Robust structure and ergonomic design

The machine body, made of high-strength stainless steel , ensures strength, lightness, and resistance to chemicals. The ergonomic design allows for easy handling even in complex environments such as workshops, laboratories, or industrial areas. The 80-liter tank provides ample capacity, reducing the need for frequent emptying, while the large diameter of the accessories and the long cable facilitate continuous operation without interruptions.

Safe and versatile cleaning for delicate surfaces

Thanks to its combined vacuuming and foaming system, the Biemmedue EX-F 80 M ECO effectively treats surfaces such as carpets, rugs, mattresses, walls, and floors, offering a professional level of cleaning and a dry, residue-free result. The dry foam ensures gentle cleaning, making it ideal even for environments with sensitive or valuable materials.

Characteristics

• Single-phase 230V power supply
• Max power 2400 W
• 2 two-stage motors with bypass cooling
• High-strength stainless steel (AISI 430) barrel
• Integrated dry foaming function
• Dedicated compressed air connection
• Diaphragm pump with integrated pressure switch
• Direct foam delivery onto the surface
• Drum capacity 80 L
• 16 L clean water tank
• Depression 2500 mm H₂O
• Air flow 430 m³/h
• Accessories Ø 40 mm
• 7 m electric cable
• Sturdy wheels and ergonomic handle
• Noise level 78 dB(A)
• Ideal for carpets, rugs and car interiors
• Perfect for professional and industrial cleaning
• Made in Italy

Standard Equipment

• 3m flexible hose

• Hand-held interior cleaning nozzle

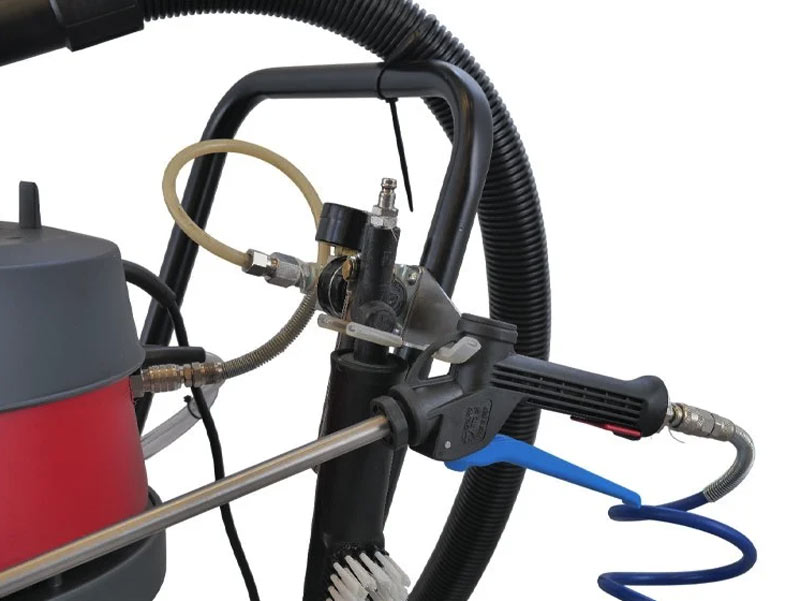

• Foam lance

• Complete interior cleaning brush

• 10 m spiral air hose

• Polyester filter with filter holder ring

• Sponge Filter


Accessories on Request

• Double steel curve

• "S" bristle brush

• Liquid suction cup

• Flat spear

• Brush

• Hand nozzle + 1.8 m hose
