Biemmedue EX-F 80 P ECO
Wet and Dry Vacuum Cleaner with Foaming Agent

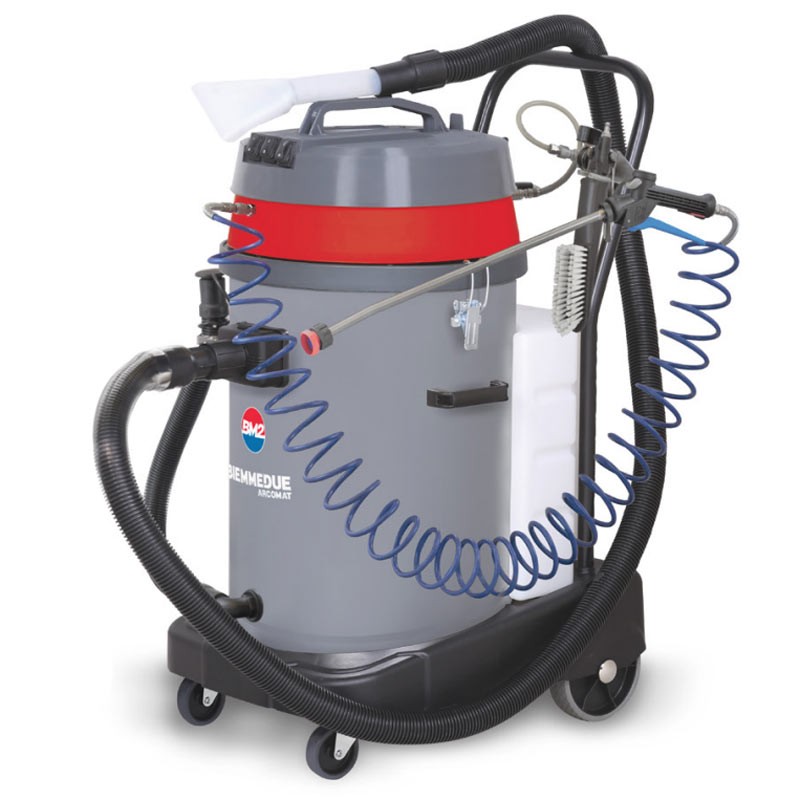

Biemmedue EX-F 80 P ECO - Wet and Dry Vacuum Cleaner with Foaming Agent and PP Tank

The Biemmedue EX-F 80 P ECO is a wet/dry vacuum cleaner and dry foam cleaner designed for professional and industrial use. This device is the ideal solution for cleaning professionals who need a versatile, powerful, and reliable system for the thorough cleaning of textile and hard surfaces. Thanks to its integrated technology, it combines the performance of a high-powered professional vacuum cleaner with the effectiveness of a dry foam cleaner , ensuring optimal cleaning results even on the most delicate surfaces.

Equipped with a dual two-stage motor with bypass cooling and an innovative pump system with bypass and integrated pressure switch , the Biemmedue EX-F 80 P ECO ensures constant foam delivery and effective suction that leaves surfaces completely dry. The compressed air connection allows for the immediate generation of dry foam, reducing intervention times and maximizing productivity in professional cleaning operations.

TECHNICAL SPECIFICATIONS

The single-phase 230V power supply and maximum power of 2400 W make the Biemmedue EX-F 80 P ECO an extremely efficient tool for continuous applications. The two-stage motor with bypass cooling system ensures consistent performance and long life even under intensive use. The equipment is equipped with two independent motors that work synergistically to generate a vacuum of 2500 mm H₂O and an air flow rate of 430 m³/h , parameters that guarantee the complete removal of dust, liquids and foam residues.

In terms of fluid management, the device is equipped with a high-performance diaphragm pump , capable of a flow rate of 0.3 L/min , with a supply pressure of 4 bar for foam production. The 80 L drum made of impact- and chemical-resistant PP material ensures durability and ease of maintenance, while the 16 L clean water tank allows for long operating times. The noise level of 78 dB(A) ensures comfortable use even indoors, while the 7 m power cable and 40 mm diameter accessories offer a wide range and flexibility during operations.

FUNCTIONAL SPECIFICATIONS

High efficiency professional suction system

The Biemmedue EX-F 80 P ECO is equipped with a professional suction system that combines power and precision. The two two-stage motors work in parallel to generate a vacuum of 2500 mm H₂O , ensuring the complete removal of liquids, dust, and foam residue. This configuration allows for continuous and stable suction, essential for obtaining dry and clean surfaces in a single pass.

Dry foaming technology with compressed air

The presence of a dedicated compressed air connection allows the Biemmedue EX-F 80 P ECO to generate professional dry foam directly on the surface being treated. The dense, controlled foam adheres to the material being cleaned, dissolving dirt deeply without excessive use of water. This system is particularly suitable for upholstery , carpeting , car interiors and delicate surfaces , guaranteeing uniform results and extremely short drying times.

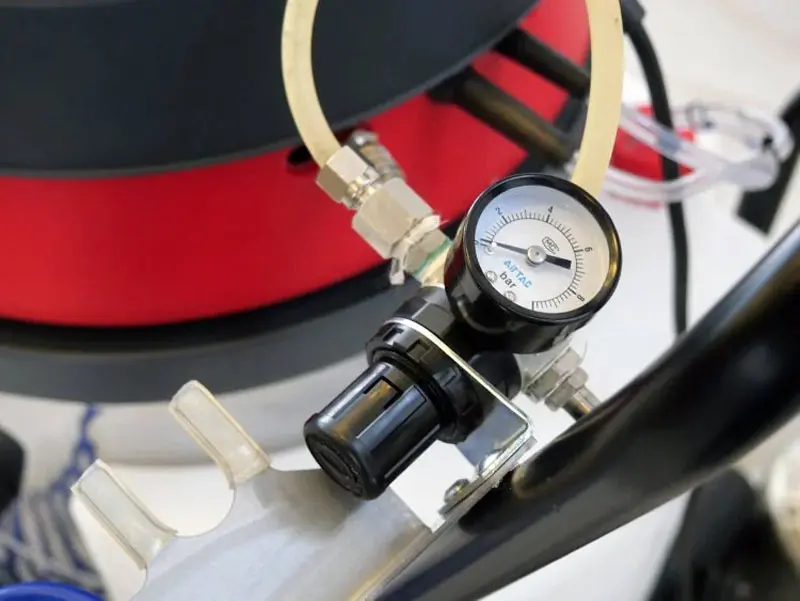

Diaphragm pump with integrated pressure switch

The heart of the system is the diaphragm pump with bypass and integrated pressure switch , designed to operate even in the most demanding conditions. This component ensures a constant and safe flow of foam solution, maintaining optimal operating pressure and preventing system overloads or blockages. The pump is synonymous with reliability and operational continuity, two essential elements for intensive use in professional settings.

Robust structure and ergonomic design

The machine body, made of high-strength polypropylene (PP), ensures strength, lightness, and resistance to chemicals. The ergonomic design allows for easy handling even in complex environments such as workshops, laboratories, or industrial areas. The 80 L drum ensures ample capacity, reducing the need for frequent emptying, while the large diameter of the accessories and the long cable facilitate continuous operation without interruptions.

Safe and versatile cleaning for delicate surfaces

Thanks to its combined vacuuming and foaming system, the Biemmedue EX-F 80 P ECO effectively treats surfaces such as carpets, rugs, mattresses, walls, and floors, offering a professional level of cleaning and a dry, residue-free result. The dry foam ensures gentle cleaning, making it ideal even for environments with sensitive or valuable materials.

Characteristics

• Single-phase 230V power supply
• Max power 2400 W
• 2 two-stage motors with bypass cooling
• High-strength polypropylene (PP) drum
• Integrated dry foaming function
• Dedicated compressed air connection
• Diaphragm pump with integrated pressure switch
• Direct foam delivery onto the surface
• Drum capacity 80 L
• 16 L clean water tank
• Depression 2500 mm H₂O
• Air flow 430 m³/h
• Accessories Ø 40 mm
• 7 m electric cable
• Sturdy wheels and ergonomic handle
• Noise level 78 dB(A)
• Ideal for carpets, rugs and car interiors
• Perfect for professional and industrial cleaning
• Made in Italy

Standard Equipment

• 3m flexible hose

• Hand-held interior cleaning nozzle

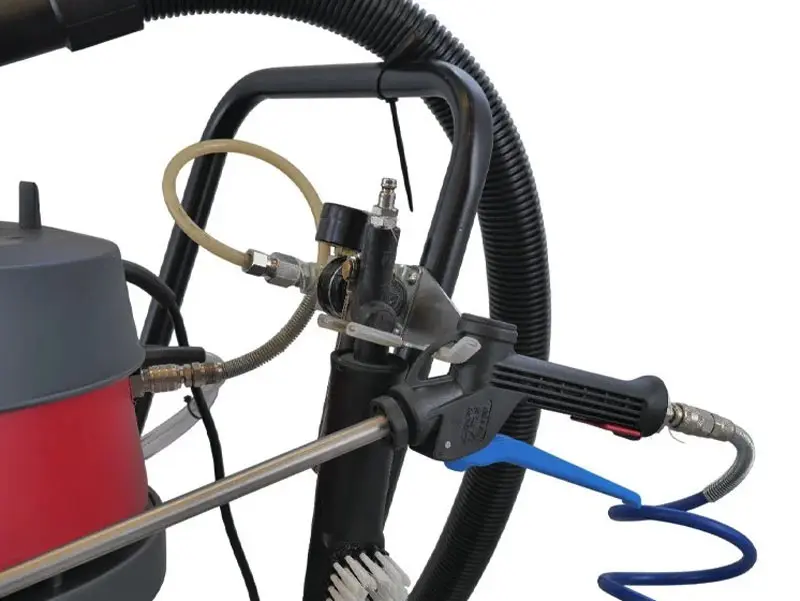

• Foam lance

• Complete interior cleaning brush

• 10 m spiral air hose

• Polyester filter with filter holder ring

• Sponge Filter


Accessories on Request

• Double steel curve

• "S" bristle brush

• Liquid suction cup

• Flat spear

• Brush

• Hand nozzle + 1.8 m hose
