Helvi PANTHER 152
MIG/MAG Wire Welder Gas no Gas

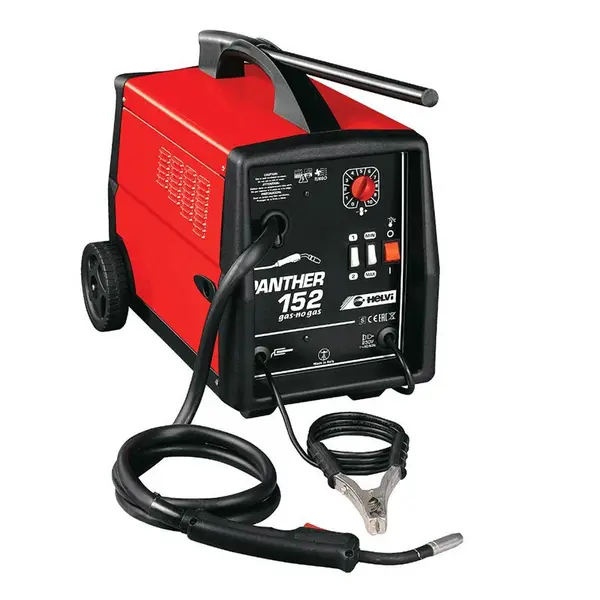

Helvi PANTHER 152 - Professional MIG/MAG Wire Welder

The MIG-MAG welding machine Helvi Panther 152 cod. 99405021 , is a professional welding machine from the Helvi brand, versatile and powerful for users who need to carry out high-quality welding. This portable single-phase continuous wire welding machine can change polarity to use both normal wire and flux-cored wire without shielding gas.

Helvi Panther 152 cod. 99405021 is the perfect MIG MAG welder for situations where shielding gas is not available or desired.

The welder is supplied complete with torch, clamp and ground cable , as well as a reel of flux-cored wire , making it ready for use right from the start.

Functional specifications

Easy to carry MIG MAG welder

One of the great conveniences of this Helvi MIG-MAG welder is the presence of wheels, which facilitate its transport and movement in different work environments. Helvi Panther 152 cod. 99405021 has a reel holder and allows the use of wire reels from 1 to 5 kg , offering greater flexibility in the choice of wire to use.

Welding machine with wide range of adjustments

In terms of performance, the Helvi Panther 152 does not disappoint. With a wide range of possible adjustments, it is possible to weld different types of materials with ease. The single-phase input voltage of 230V at 50/60Hz ensures a power of 2.4 KW with a duty cycle of 60% . The welder offers a no-load voltage between 18 and 28 V and an adjustable current from 30 A to 145 A , with a duty cycle of 20% of 130A and 60% of 75A .

Welding machine for wire diameter between 0.6 and 0.8 mm

The Helvi Panther 152 is able to weld steel with a wire Ø between 0.6 and 0.8 mm , stainless steel Ø 0.8 mm and aluminium with Ø 0.8 mm . Furthermore, it is possible to use gas-free wire with Ø between 0.8 and 1.0 mm .

Welding machine with protections and insulation for safe use

This Helvi welder is carefully designed, with an insulation grade H and IP22S protection , making it safe and reliable. The net weight of the machine is 27 kg.

Types of welding possible with Helvi Panther 152

• MIG : in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MAG : also semi-automatic, the gas used is carbon dioxide and it is mainly used to weld common steels. MIG welding guarantees a higher level of precision, more refined results and is preferred for large thicknesses while MAG is more economical and also allows you to weld copper, aluminum and magnesium.

MIG-MAG welding with the Helvi Panther 152 welding machine cod. 99405021 is a versatile process that allows you to weld materials such as steel , stainless steel and aluminium using continuous wire and shielding gas or without gas .

This machine offers precise adjustments and a power of up to 2.4 kW, making it ideal for a wide range of applications. With a robust construction and convenient mobility thanks to the wheels, the Helvi Panther 152 is a reliable and practical solution for welding needs in different work environments.

Fields of application

• Light industry

• Construction and carpentry
• Automotive Repair
• Metalworking
• Maintenance services
• Building constructions
• Naval sector
• Metal Artworks
• Semi-professional use

Characteristics

• High quality MIG and MAG welder.
• Nominal power is 60% and amounts to 2.4 kW.
• Adjustable current from 30 to 145 A.
• The 40°C work cycle guarantees durability and reliability in welding.
• Compatible with electrodes with diameter Ø 0.6÷0.8 mm
• Professional quality

• THERE IS
• Certification
• Single phase
• Conventional Control
• Line Voltage Compensation
• MIG
• Gas no Gas
• Animated Wire

• Spools from 1 ÷ 5 kg
• Wire Feed Rollers

Compatible accessories

•
  PRESSURE REDUCER - MICRO - 130 BAR - code 22905118
•
  MISTERWORK TANK - MIX C8 - 14 LT - (0.9 3M) - code 21900011

Safety accessories

•
  PAIR OF PROFESSIONAL GLOVES FOR MIG/MMA WELDING - code 21905134
•
  Vision 2.1: Auto Darkening Mask - 21905100
•
  Sky 2.0: Auto-darkening mask - 21905125

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .

Helvi video presentation

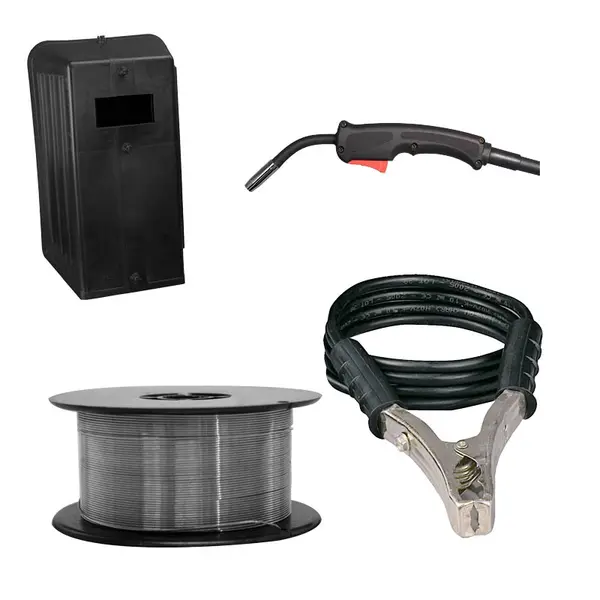

Standard equipment

• Fixed MIG torch 10 mm² - 2 m - 23000072
• Ground Cable 10 mm² - 1.8 m - 43210108
• Wire coil Ø 0.9mm - 0.225 kg - 21910028
• Welding Mask - 21905064
• Glass Kit - 44900001
• Roller 0.6 ÷ 0.8 mm knurled - 33805001
