Helvi Galileo Tig 211 Easy AC/DC
Inverter welding machine with HF ignition

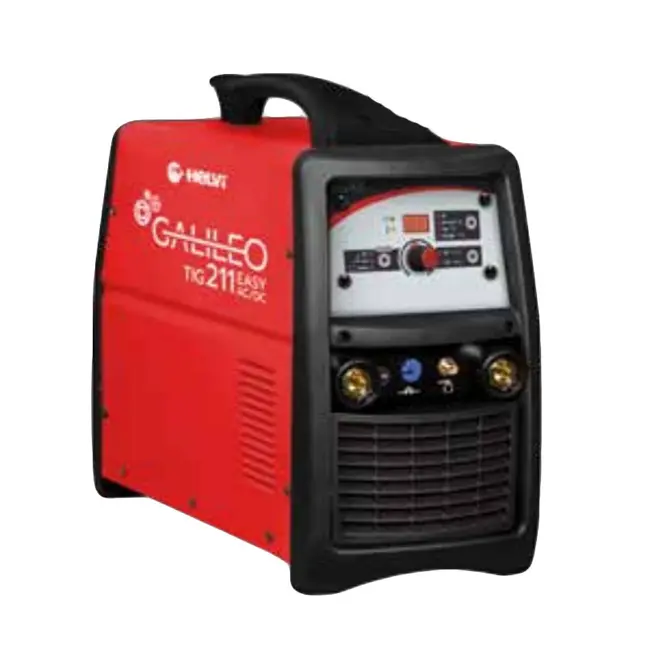

Helvi Galileo Tig 211 Easy AC/DC - Professional Inverter Welding Machine

Helvi Galileo Tig 211 Easy AC/DC cod. 99806020K is a TIG welder with HF ignition suitable for the needs of professionals and welding enthusiasts. This model allows you to pre-set all the typical parameters of a welding cycle .
The presence of inverter technology and microprocessors allows constant control of the welding process, ensuring excellent dynamics during welding and optimal arc striking.

Equipped with HF (High Frequency) technology , the Helvi Galileo Tig 211 Easy AC/DC welding machine guarantees a clean and contactless arc start , improving the quality of welding.

The FLEX-LINE system allows the machine to automatically recognize the input voltage , calibrating the absorbed power, the no-load voltage, the regulation range and the work cycle at 40°C accordingly.

The power consumption of this 60% welder ranges from 2 to 4 kW depending on use, as does the adjustment range from 5 to 200 A , allowing you to adapt the current to your specific welding needs. With a no-load voltage of 45 V and a duty cycle at 40°C that allows you to deliver from 5÷100 A to 10÷200 A , this machine guarantees reliable performance even in high-load situations .

Functional Specifications

High Frequency Start HF Welder

The Helvi Galileo Tig 211 Easy AC/DC welding machine has an electric arc that is activated remotely via a high-frequency pulse . It is not necessary to touch the base material with the tungsten electrode. This avoids damaging the electrode and contaminating the welding bath.

Safe Welder with Class H Insulation

Helvi Galileo Tig 211 Easy AC/DC cod. 99806020 is designed with class H insulation , ensuring operator safety during use . Furthermore, the IP23S protection rating allows use even in less favourable environments .

Helvi Galileo Tig 211 Easy AC/DC Used with 110V

The Helvi Galileo Tig 211 Easy AC/DC welding machine, used at 110V , has a power at 60% of 2.2 kW in MMA and 2 kW in TIG DC and TIG AC ; a regulation range of 5÷100 A in MMA , 5÷140 A in TIG DC and 10÷140 A in TIG AC . Compatible with 6013 and 7018 electrodes with a diameter of 1.6÷2.5 mm .

Helvi Galileo Tig 211 Easy AC/DC Used with 230V

The Helvi Galileo Tig 211 Easy AC/DC welding machine, used at 230V , has a power at 60% of 4 kW in MMA , of 2.3 kW TIG DC and of 2.5 kW in TIG AC ; a regulation range of 5÷170 A in MMA , of 5÷200 A in TIG DC and of 10÷200 A in TIG AC . Compatible with 6013 and 7018 electrodes with a diameter of 1.6÷5 mm .

Types of welding possible with Helvi Galileo Tig 211 Easy AC/DC

• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.
• TIG : requires low voltage and therefore absorbs little, becoming cheaper and aesthetically the most beautiful of all welding techniques. TIG welding has a so-called coin shape due to the circular shapes it produces and is more resistant, therefore it is usually used in visible elements and on processes that require precision.

Watch the video

Fields of application

1. Light industry

2. Carpentry
3. Automotive Repair
4. Sheet Metal Working
5. Maintenance services
6. Building constructions
7. Automotive
8. Semi-professional use

Characteristics

• High quality MMA and TIG welder
• Rated power is 60% and can reach 4 kW
• The 40°C work cycle guarantees durability and reliability in welding
• Compatible with electrodes Ø 1.6÷2.5 mm (110V) and Ø 1.6÷5 mm (230V)
• Professional quality

• THERE IS
• Certification
• EAC
• Air Cooling
• Single phase
• Electronic Control
• Connector 50 mm²
• Line Voltage Compensation
• Display
• TIG torch
• MMA
• Arc Force Device
• Hot Start Device
• Anti Sticking Device
• Electrodes
• TIG
• PULSE
• Full Cycle

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .
