Telwin Technology Plasma 60 XT
Plasma Cutting Inverter
MPN: 816148
230V - 5.5kW
34 A
PLASMA

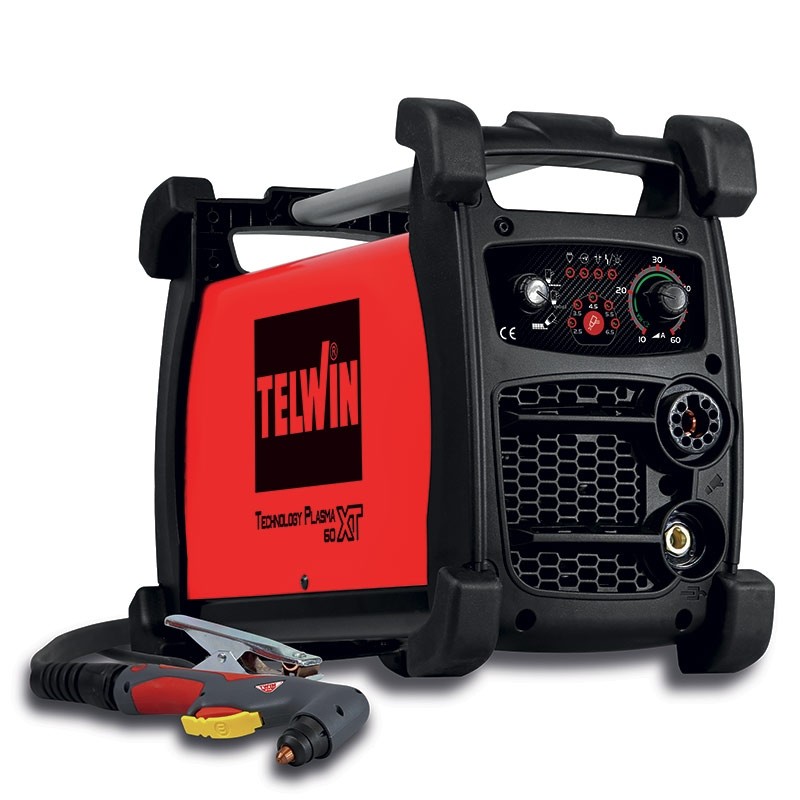

Telwin Technology Plasma 60 XT
Telwin Technology Plasma 60 XT is a compressed air plasma cutting inverter system, with contact ignition of the pilot arc. This product allows fast cutting without deformation , cutting on grids and gouging of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc. Protected against possible power supply anomalies: overvoltage, undervoltage, overcurrent in addition to a protection degree of IP23 .
Technical specifications
The Telwin Technology Plasma 60 XT compressed air plasma cutting inverter system has a maximum cutting thickness of 20 mm ; it is a single-phase 230 V product, its mains frequency is 50÷60 Hz . The maximum current is 50 A @ 30 % A and the current regulation range is 10÷60 A. The maximum no-load voltage is 313 V , while the maximum absorbed current is 34 A.
Telwin Technology Plasma 60 XT has a maximum absorbed power of 5.5 kW , 20 A mains fuse for a 90% efficiency. The compressed air flow rate is equal to 100 L/min , its pressure is 4÷5 bar . The machine has small dimensions 51 x 18 x 29 cm and a weight of 10 kg; it is built with quality materials, very robust and resistant to impacts, even though it is a compact and lightweight machine.
Characteristics
- Robust and shock resistant
- Reduced weight and size
- Signaling of voltage presence in torch, protections
- Consumables change report
- Automatic torch cooling
- Air pressure display
- Thermostatic, overvoltage, undervoltage, overcurrent, lack of air protection
- Complete with PH torch
Standard Equipment
- PH plasma torch 4 m - cod. 804155
- Air pressure reducer - code 125237
- Cable TW05V-A 1X016 L=03.00 Atlas 25MMQ
- Toledo 300 ground clamp
Technical Data
| Power Supply | 230 V |
| Power | 5.5 kW |
| Frequency | 50 / 60 Hz |
| Compressed Air Flow Rate | 100 L/min |
| Current Reg. Field | 10 - 60 A |
| Maximum Current Draw | 34 A |
| Open Circuit Voltage | 313 V |
| Mains Fuse | 20 A |
| Yield | 90% |
| Power Factor | 0.7 cosphi |
| Maximum Cutting Thickness | 20mm |
| Degree of Protection | IP23 |
| Maximum current | 50 A @ 30 % A |
| Dimensions | 51 x 18 x 29 cm |
| Weight | 11 kg |
Technical Data
| Power Supply | 230 V |
| Power | 5.5 kW |
| Frequency | 50 / 60 Hz |
| Compressed Air Flow Rate | 100 L/min |
| Current Reg. Field | 10 - 60 A |
| Maximum Current Draw | 34 A |
| Open Circuit Voltage | 313 V |
| Mains Fuse | 20 A |
| Yield | 90% |
| Power Factor | 0.7 cosphi |
| Maximum Cutting Thickness | 20mm |
| Degree of Protection | IP23 |
| Maximum current | 50 A @ 30 % A |
| Dimensions | 51 x 18 x 29 cm |
| Weight | 11 kg |
